JS-A56U9D High-Precision Multi-Band GNSS Module for RTK, Robotics, Mapping, and Smart Transportation

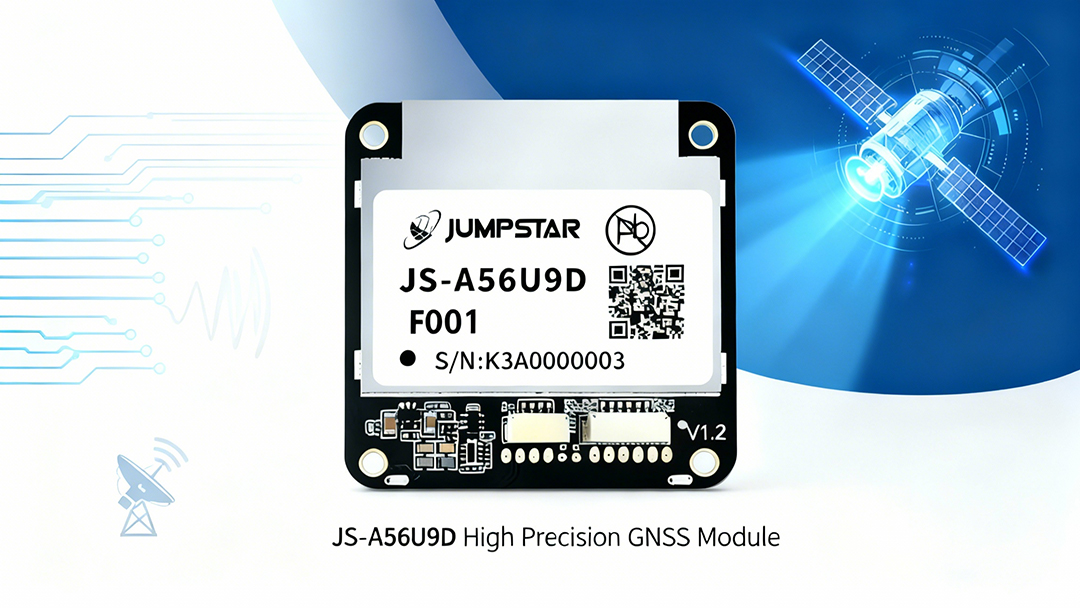

Compact JS-A56U9D GNSS receiver module with multi-band architecture for high-precision positioning in robotics and surveying..jpg

As industries increasingly rely on precise spatial awareness, high-performance GNSS receivers have become essential across robotics, surveying, transportation, and autonomous systems. The Jumpstar JS-A56U9D is engineered to meet these requirements by combining multi-band concurrent GNSS, RTK capability, and robust interference resistance within a compact module design

Multi-Constellation, Multi-Band Architecture

The JS-A56U9D processes signals from GPS, BDS, GLONASS, Galileo, and QZSS/SBAS simultaneously, enabled by its multi-band RF front-end. Concurrent operation ensures consistent performance and improved satellite geometry, particularly in urban or obstructed environments.

Supported signals include:

GPS: L1C/A, L2C
GLONASS: L1OF, L2OF
BDS: B1I, B2I
Galileo: E1-B/C, E5b

This broad compatibility provides a reliable foundation for applications requiring continuous, high-integrity positioning.

Centimeter-Level RTK Accuracy

When supplied with RTCM correction data, the JS-A56U9D achieves RTK Fixed solutions with centimeter-level horizontal accuracy (0.01 m + 1 ppm CEP).

· RTK convergence: <10 seconds

· Dynamic heading accuracy: 0.3°

· Velocity accuracy: 0.05 m/s

Both base and rover modes are supported through UART, RS232, USB, or I2C, enabling flexible deployment in static or mobile scenarios.

High Performance in Demanding Environments

Engineered with integrated TCXO, LNA, SAW, and RTC, the module maintains high sensitivity and fast acquisition:

· Cold start: 25–30 s

· Hot start: 2 s

· Tracking sensitivity: –167 dBm

These characteristics improve performance where signal multipath or attenuation is common, such as city centers, dense foliage, or vehicle-mounted installations.

Enhanced Hardware Integration and Interfaces

To support various embedded designs, the JS-A56U9D offers:

· UART (host communication)

· UART dedicated for RTCM/NMEA

· RS232 (optional model)

· USB (optional model)

· I2C interface

· Integrated high-gain antenna

Three variants—JS-A56U9D-T, JS-A56U9D-R, and JS-A56U9D-U—enable designers to select the appropriate interface configuration for their system architecture

Applications Across Modern Intelligent Systems

JS-A56U9D GNSS module applications in UAV, robotics, and autonomous transportation systems for reliable navigation.jpg

The module’s precision, stability, and multi-interface adaptability make it suitable for a broad range of industrial and commercial solutions :

· UAV flight control and navigation

· Surveying and mapping

· Automotive and smart transportation systems

· Fleet management and marine navigation

· Intelligent robotics and automated logistics

· Personnel positioning and safety systems

Its wide operating temperature range (–40°C to 85°C) and low power consumption further support deployment in mission-critical outdoor environments.

A Compact Solution for High-Precision Positioning

With its 56 × 56 × 17.2 mm compact form factor and reliable hardware design, the JS-A56U9D provides integrators an efficient path toward achieving high-precision GNSS in both emerging and established applications.

For organizations developing UAV platforms, autonomous robots, or surveying instruments, the JS-A56U9D offers a combination of performance, flexibility, and reliability aligned with modern requirements for accuracy and consistency.

For integration details, visit Jumpstar Products. Contact sales@jumpstargnss.com for specifications.
