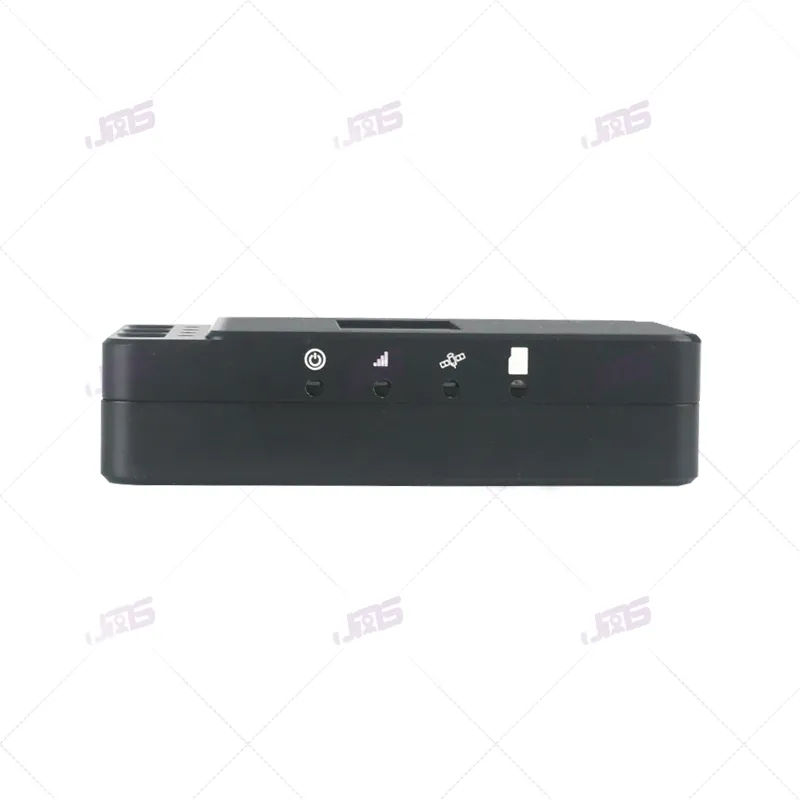

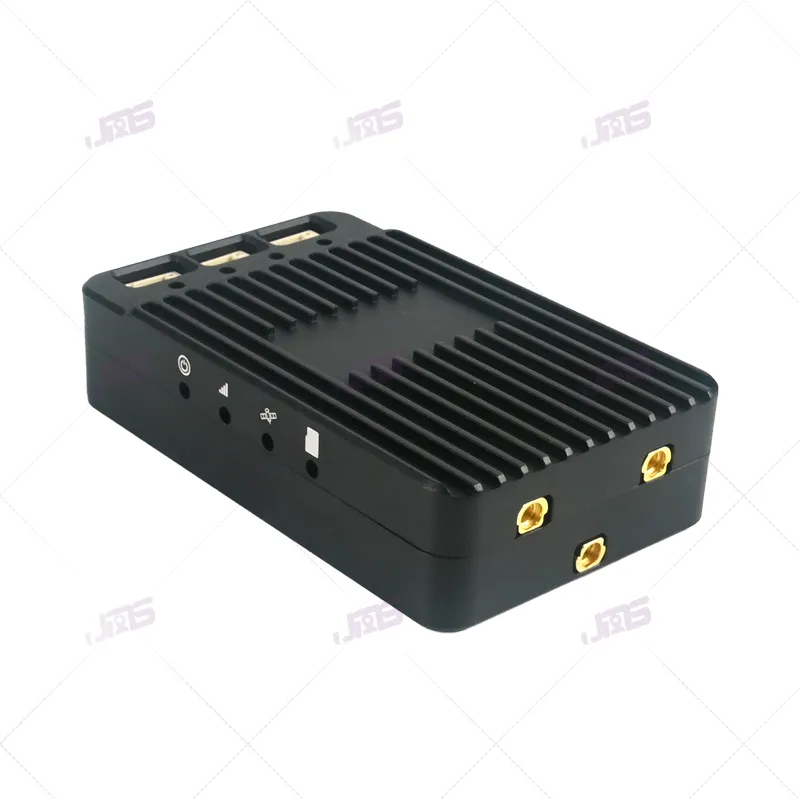

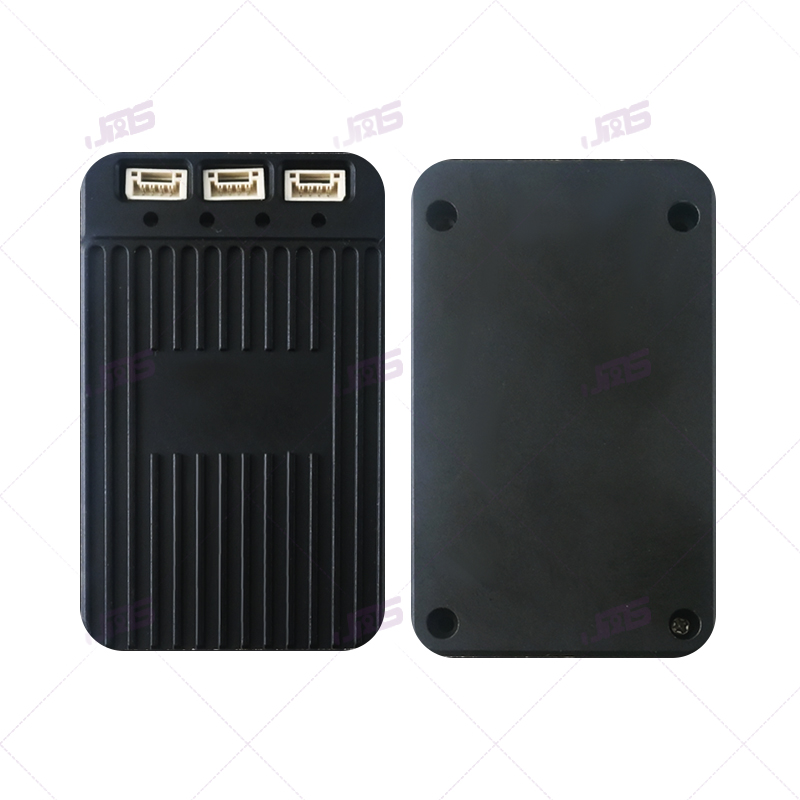

The P-Box-X7 UAV positioning terminal is a compact, high-speed solution developed for full-system, multi-frequency, high-precision positioning and orientation. Supporting BDS-2, BDS-3, GPS, GLONASS, Galileo, IRNSS, SBAS, and QZSS signal tracking, it integrates an onboard IMU for enhanced navigation. With its mini size, low weight, and low power design, the P-Box-X7 is ideal for UAVs, autonomous robots, and other applications requiring strict SWaP performance.
Product Features
Use high-performance chips
Default 5Hz data upload, up to 20Hz rate
Wide voltage input 9-90V
Satellite signals can be tracked smoothly during high-frequency vibrations and rapid movements
Supports GPS, BDS-2, BDS-3, GLONASS, Galileo, SBAS, QZSS satellites
Built-in large-capacity storage, up to 32G

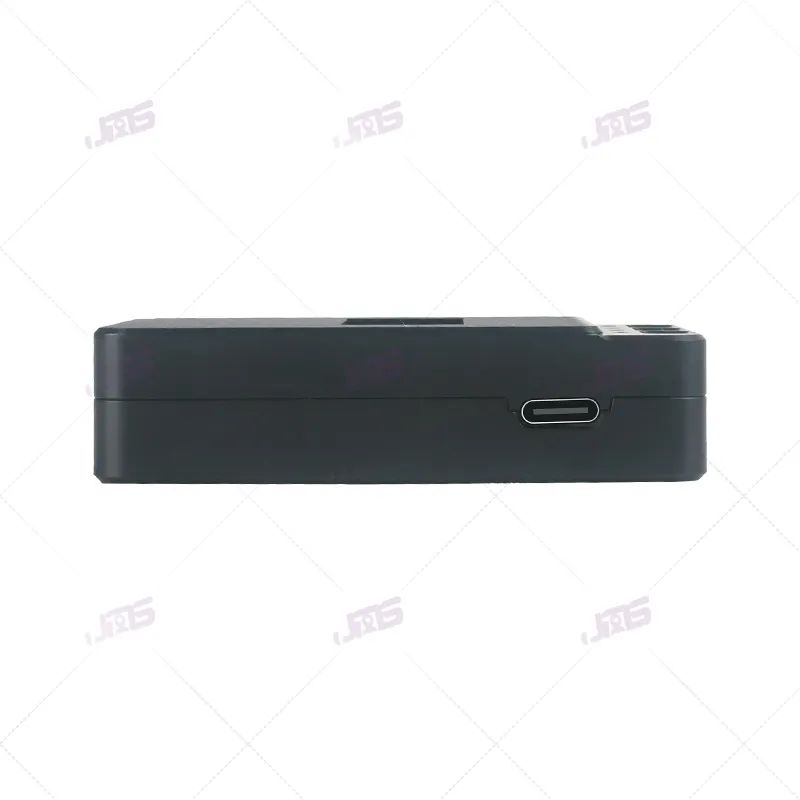

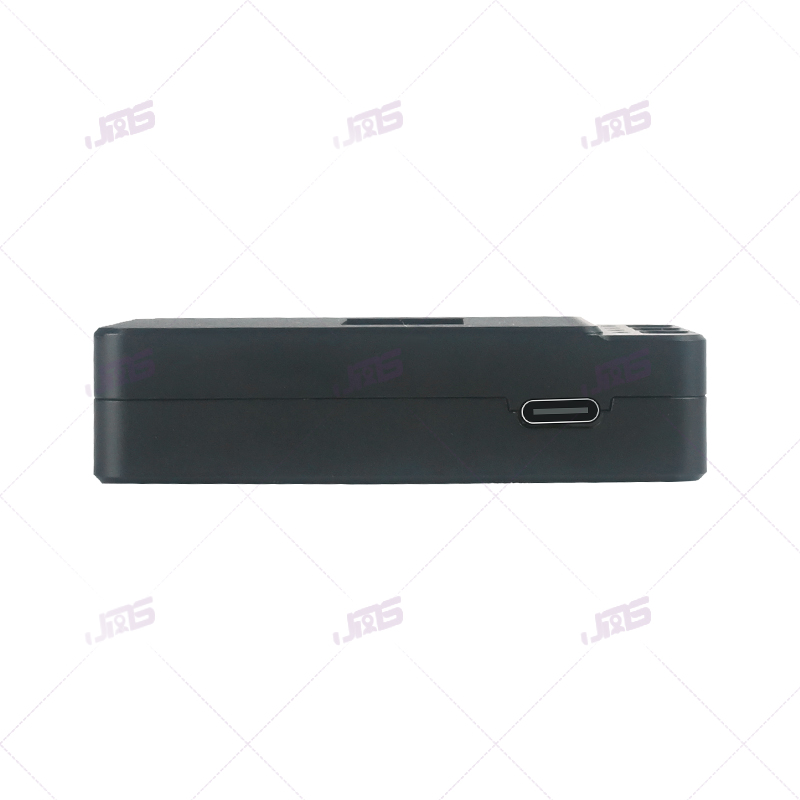

External Type-C interface, read stored data at any time
Small size (68.4*41.8*17.3mm±0.3mm), suitable for relatively compact spaces
Supports standard NMEA 0183
Support high-precision positioning and heading output
Support GNSS navigation
Built-in 4G module, embedded RTK account
It has the ability to suppress potential narrowband and single-tone radio interference signals in the GNSS signal frequency band, and the interference-to-signal ratio can reach 50dB.
Supports local firmware upgrade, and also supports remote firmware upgrade
Performance
| parameter | Elaborate |
| Can receive satellites (positioning & orientation) | GPS: L1C/A, L2C, L2P GLONASS: G1,G2 BDS-2: B1I,B2I,B3I BDS-3:B1I,B3I Galileo: E1,E5b QZSS: L1C/A,L2C SBAS: L1C/A |
| Positioning time | Cold start＜30s |
| Warm start (using RTC) <10s | |
| Lock loss and re-capture 1s | |
| signal capture | Signal capture sensitivity -138dBm |
| Signal tracking sensitivity-155dBm | |
| Standard single point positioning accuracy | H ≤ 1.5m, V ≤ 3m (1σ, PDOP≤4) |
| RTK | RTK initialization time<5s (D<10km) |
| Initialization confidence level＞99.9% | |
| RTK accuracy H: ±(8+10-6xD)mm | |
| V:±(15+10-6xD)mm | |
| D is the baseline length (unit: km) | |
| Static differential accuracy | H ±(2.5+1x10-6xD)mm |
| V ±(5.0+1x10-6xD)mm | |
| D is the baseline length (unit: km) | |
| Speed measurement accuracy≤0.02m/s (PDOP≤4) | |
| PPP | PPP initialization time＜15min |
| PPP accuracy H≤10cm, V≤20cm | |
| inertial navigation | The GNSS antenna signal loses lock for 3 seconds, and the accuracy remains cm level |
| The GNSS antenna signal loses lock for 10 seconds, and the accuracy remains m level | |
| Measurement accuracy | Azimuth accuracy (0.15/R)° R is the length of the baseline in meters |
| Roll or pitch angle (0.25/R)° R is the baseline length, in meters | |
| Timing accuracy | 20ns |
| Data update frequency (MAX) | Measurement & positioning max 20 Hz |
| RTK positioning max 20 Hz | |
| IMU max 50 Hz |

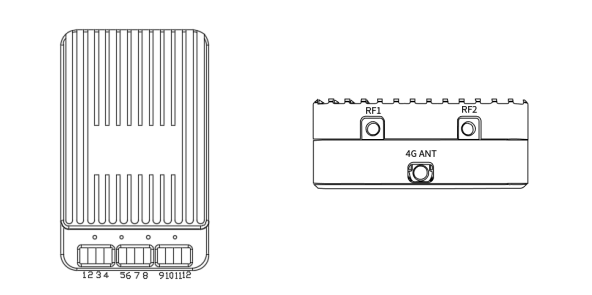

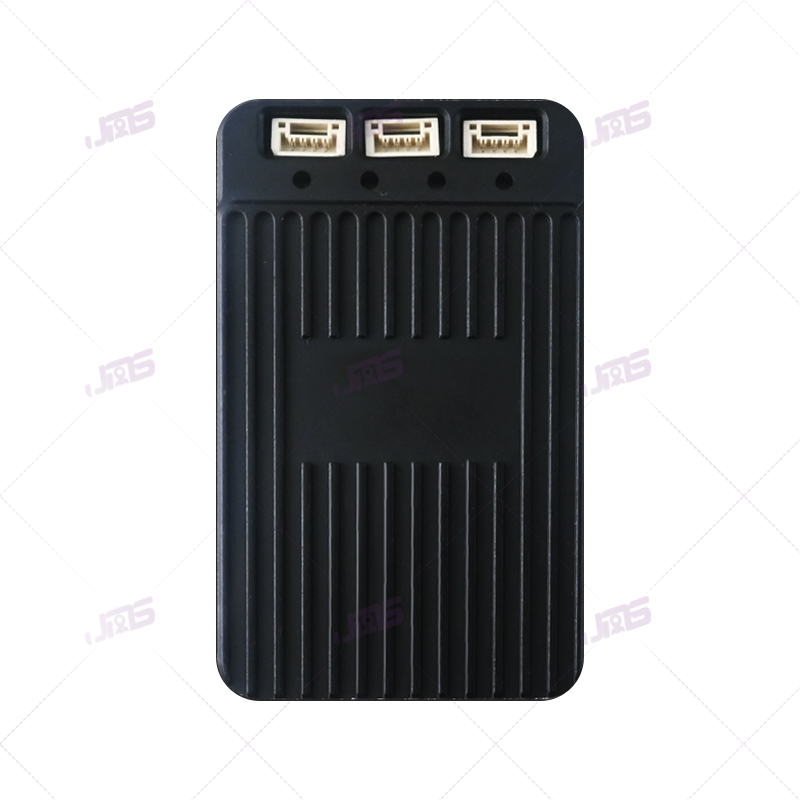

Pin Parameters
| Serial Number. | Name | Input Output | Describe |
| 1 | GND | - | land |
| 2 | TX3 | output | Software download/parameter configuration |
| 3 | RX3(9600/bps) | enter | Software download/parameter configuration serial port |
| 4 | BOOT | - | BOOT |
| 5 | GND | - | land |
| 6 | EVENT | enter | EVENT |
| 7 | PPS | enter/output | PPS/GNSS module COM2 |
| 8 | TX2 | output | GNSS module COM2, used to output its own RTCM |
| 9 | GND | - | land |
| 10 | PWR | enter | Device power supply(9V~90V) |
| 11 | RX1 | enter | GNSS module COM1,Used for customer debugging and connecting customer flight control boards |
| 12 | TX1 | output | GNSS module COM1,Used for customer debugging and connecting customer flight control boards |
| 13 | RF1 | enter | GNSS directional antenna interface, the antenna supply voltage is 3.3V |
| 14 | RF2 | enter | GNSS positioning antenna interface, the antenna supply voltage is 3.3V |
| 15 | 4G ANT | enter | 4G communication module antenna interface |
Product Application
Drone applications Mapping and surveying
Intelligent logistics dispatch
High-precision personnel positioning
smart robot
Geological hazard monitoring
Geographical survey
Vehicle equipment applications
Smart City
Intelligent construction
Ocean exploration and hydrological monitoring
Precise control
Protocols
| Protocol | Type |
| NMEA 0183 | Input/output, ASCII |
| ComNav Binary(CNB) | Input/output |
| RTCM 2.x, 3.x | Input/output |
| CMR (GPS) | Input/output |
