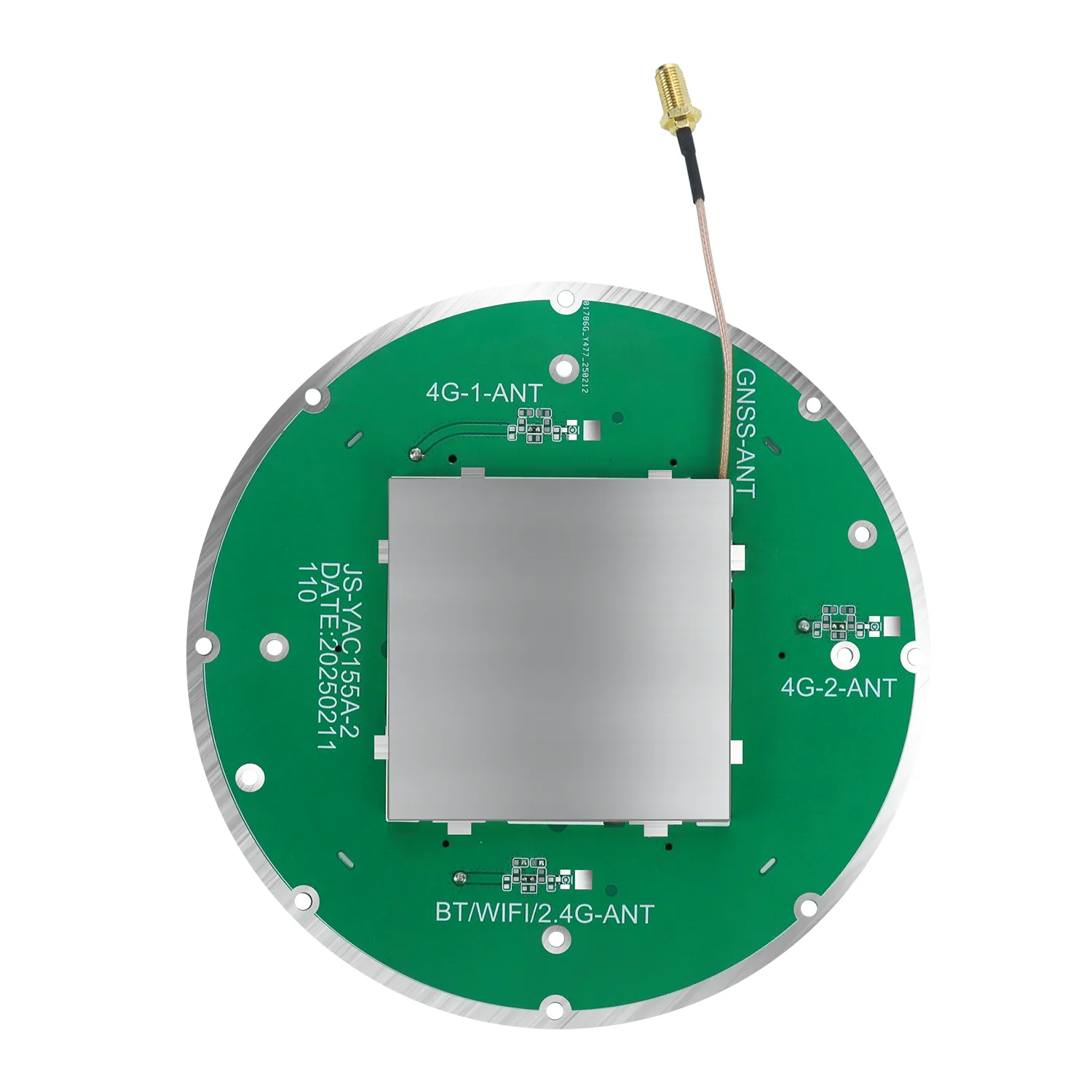

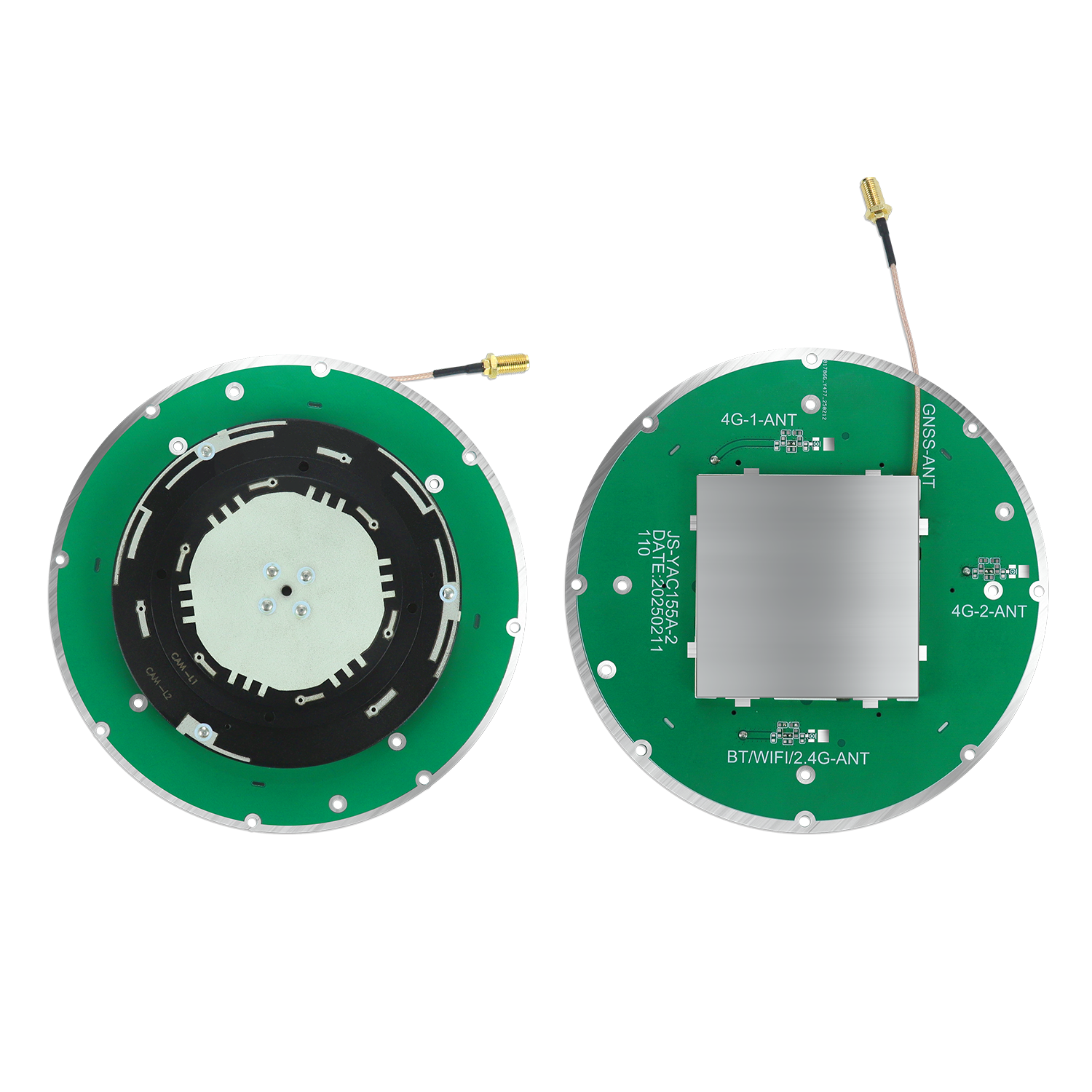

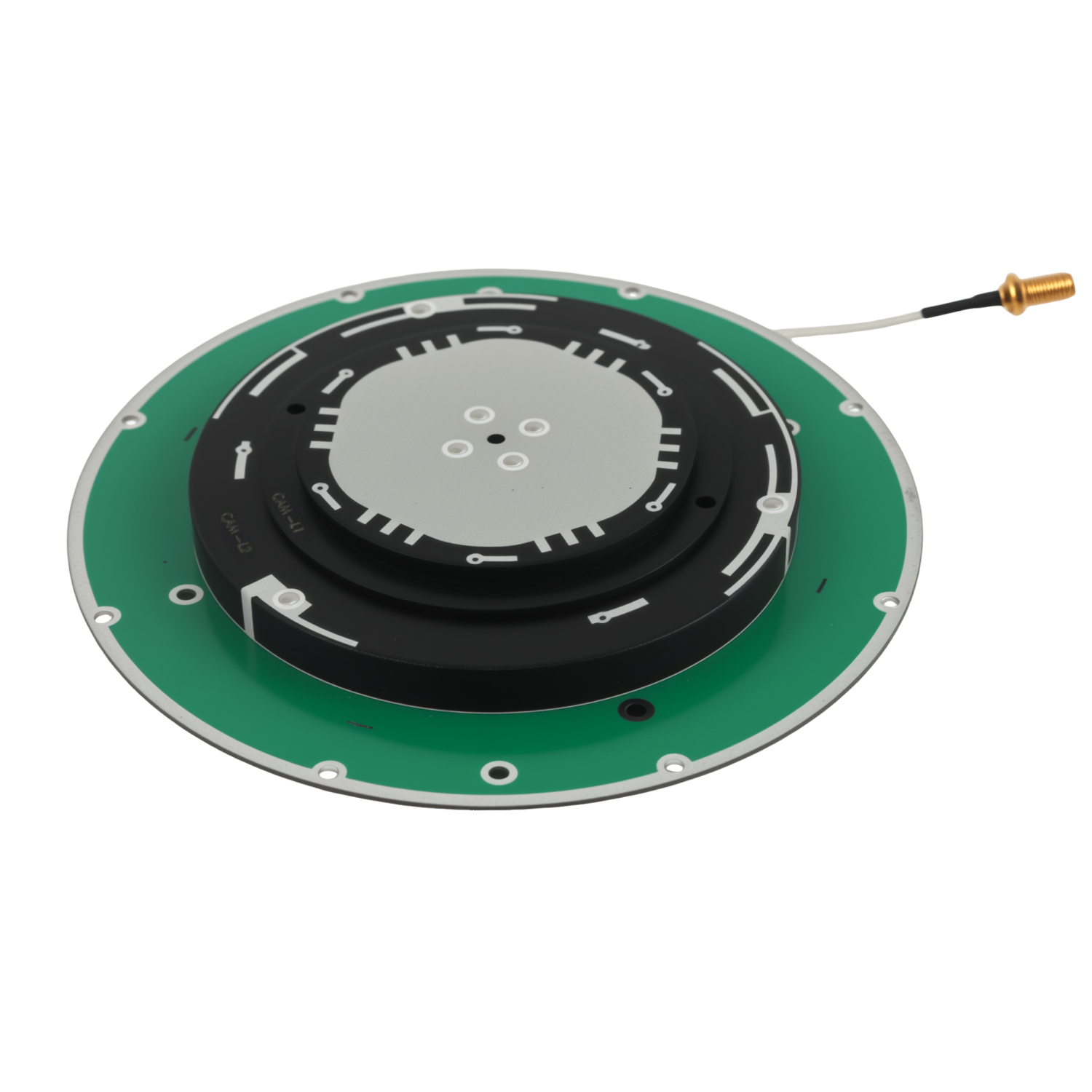

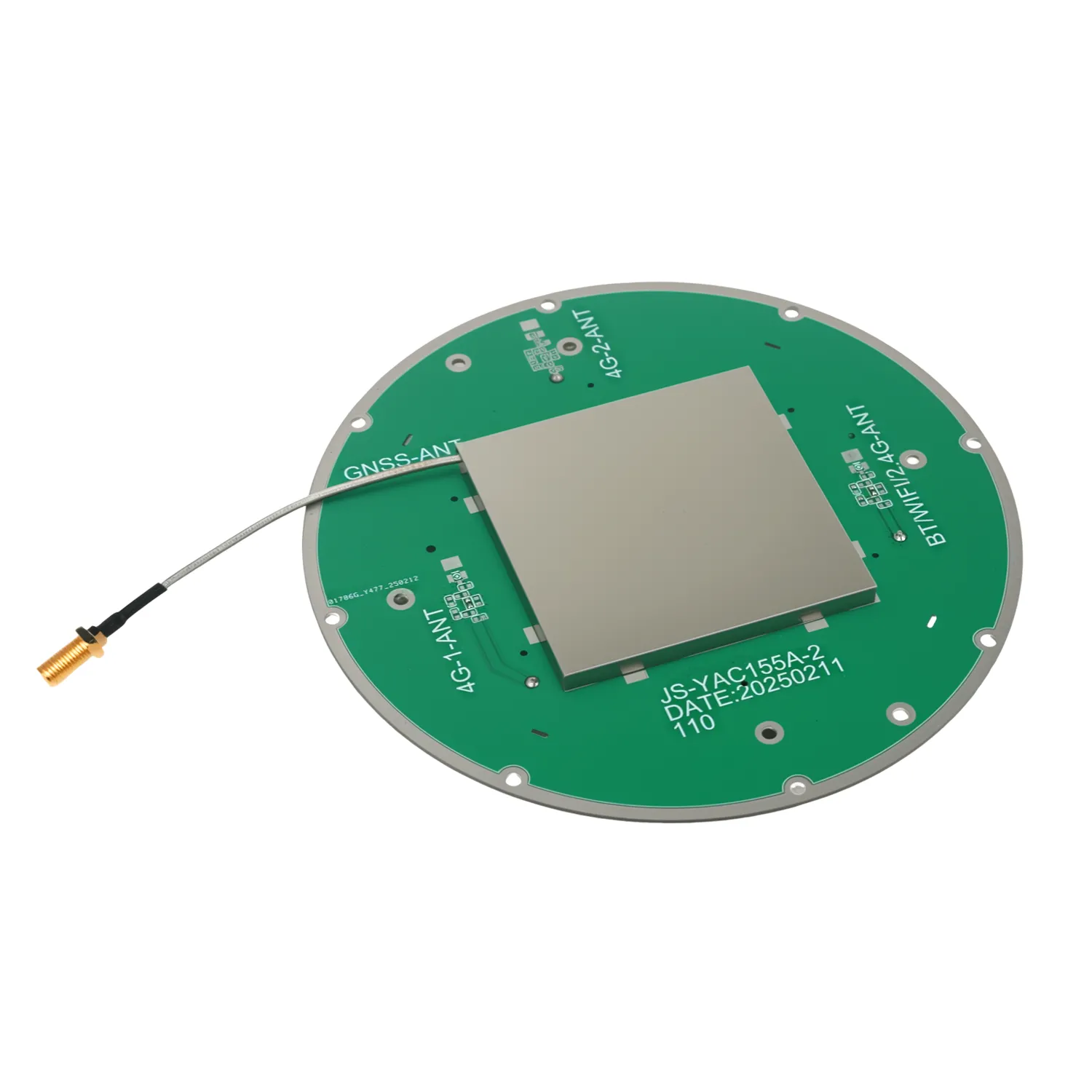

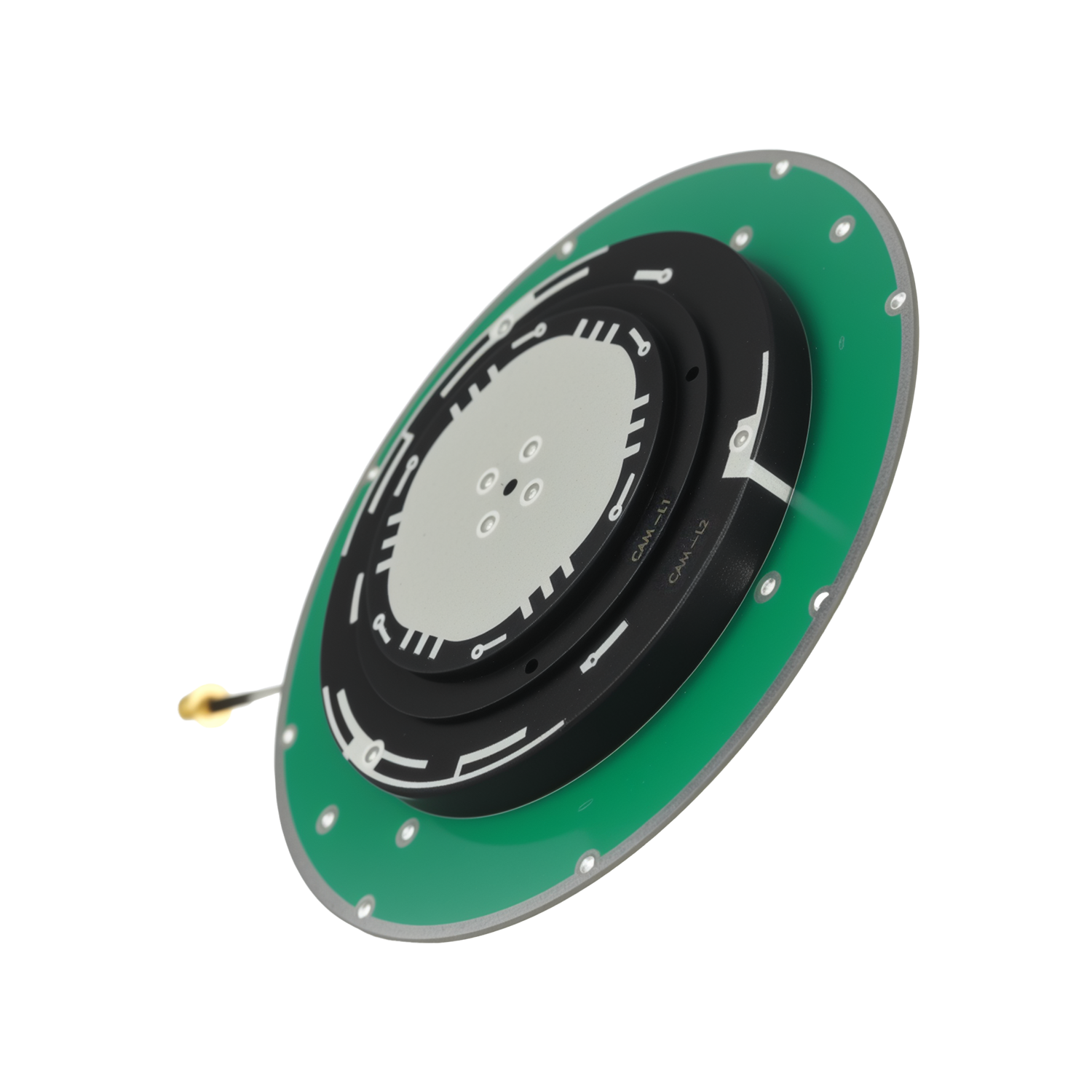

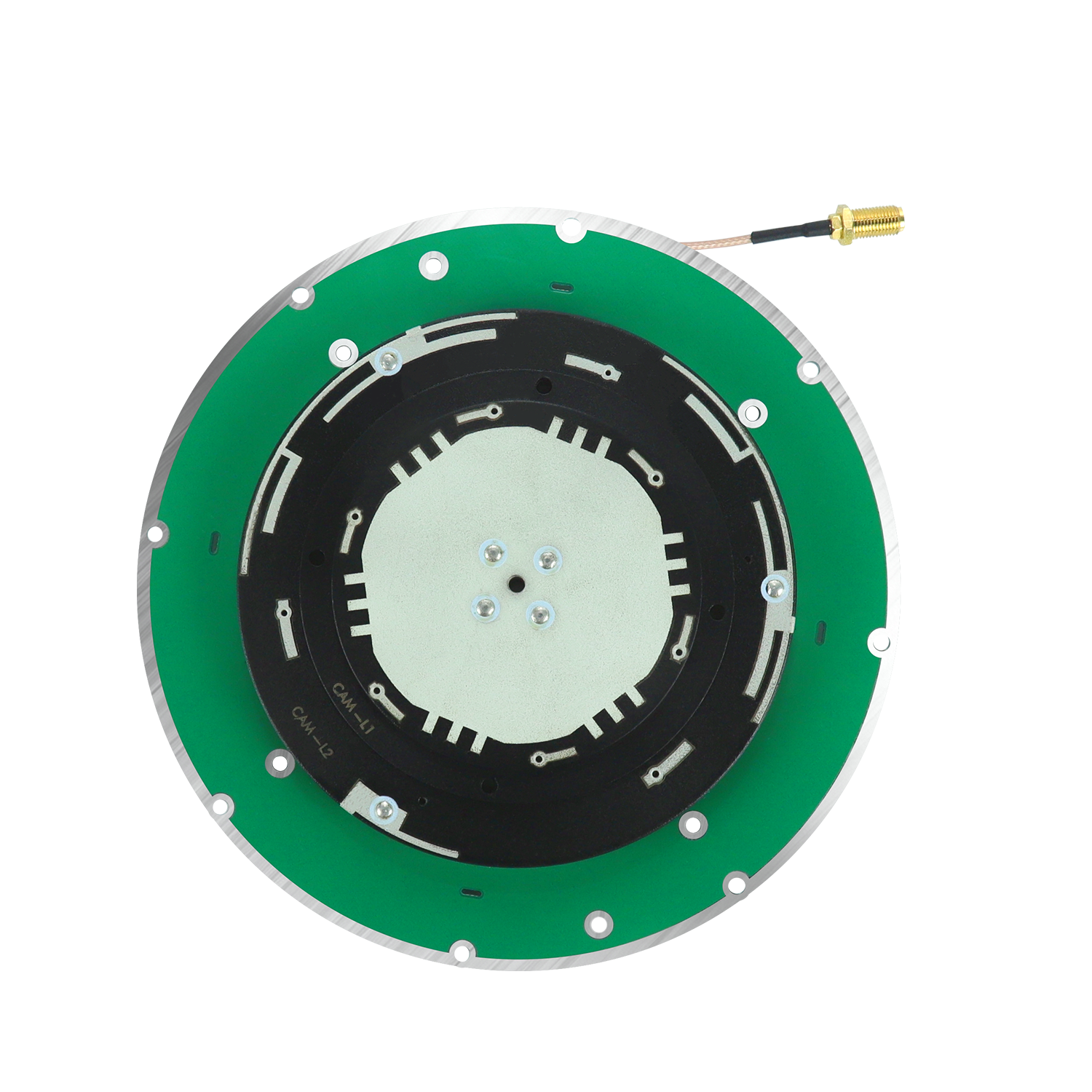

The JS-YAC155N is a high-precision integrated antenna, covering L1+L2 frequency bands for GPS, GLONASS, BDS, and GALILEO, while also integrating 4G and Bluetooth antennas. Designed for multi-system compatibility in surveying equipment, it offers low-elevation gain, wide-angle circular polarization, and a stable phase center. This ensures reliable signal reception at low elevations, enabling rapid satellite acquisition and stable GNSS navigation in complex, obstructed environments.
Product Features
Integrated communication and navigation
High antenna unit gain
Wide beamwidth pattern, broad passive antenna operating bandwidth
Highly stable phase centre
Unified navigation and communication design
Wireless communication: 4G, Bluetooth
Robust interference resistance, stable phase centre under harsh operating conditions
Performance
| Category | Parameter | Specification |
| Performance | Receive Frequency | GNSS: BDS B1I/B2I |
| GPS L1/L2 | ||
| GLONASS L1/L2 | ||
| GALILEO E1/E5a/E5b | ||
| QZSS L1/L2 | ||
| 4G: 824 MHz–960 MHz, 1710 MHz–2690 MHz | ||
| BT: 2.4 GHz | ||
| Max Gain | GNSS ≥ 5.5 dB | |
| 4G ≥ 0.5 dB | ||
| BT ≥ 0.5 dB | ||
| Impedance | 50 Ω | |
| Horizontal Coverage | 360° | |
| Output Standing Wave Ratio | ≤2 | |
| Low-Noise Amplifier | Gain | 35 ± 2 dB |
| Noise Figure | ≤2.0 (per-filter) | |
| Output Voltage | ≤2.5 V | |
| Bandwidth | ±2 dB | |
| Operating Voltage | 3.3–12 V (DC) | |
| Operating Current | ≤50 mA (@5 V) | |
| Structural Characteristics | Antenna | PPO |
| PCB | FR4 | |
| Shielding | Tinplate | |
| RF Connector | GNSS: MCX-C-JW1.5 RG178 cable | |
| 4G: MMCX-C-JW1.5 RG178 cable | ||
| Dimensions | Ø1.55" × 16.3 mm |
