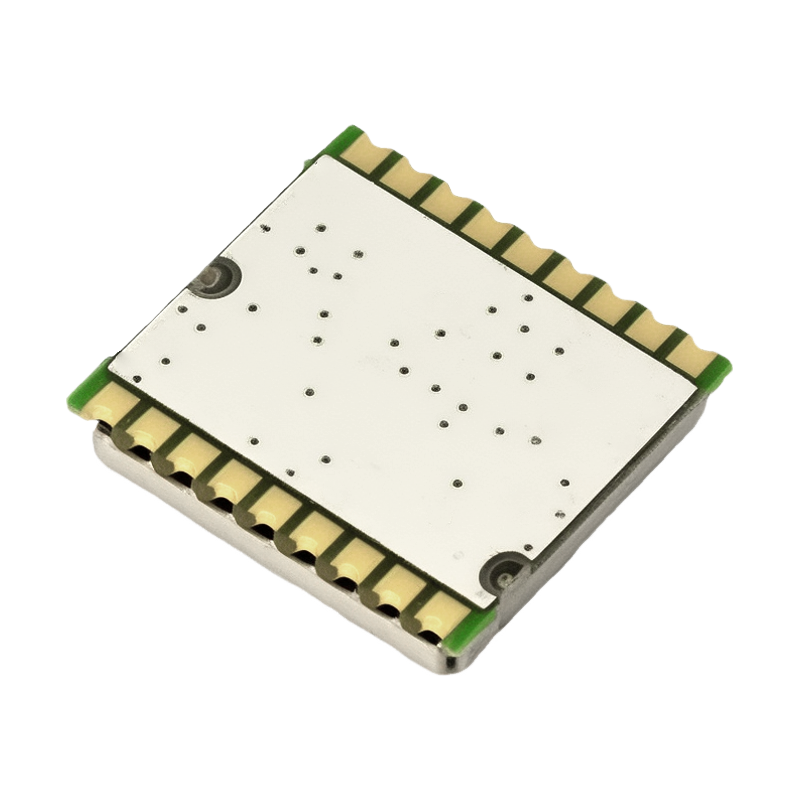

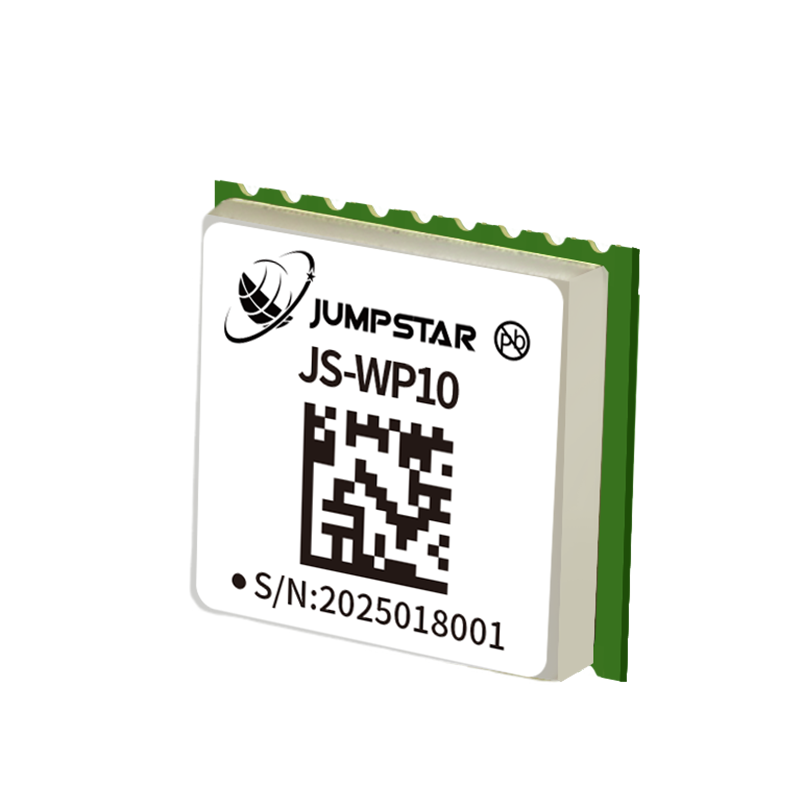

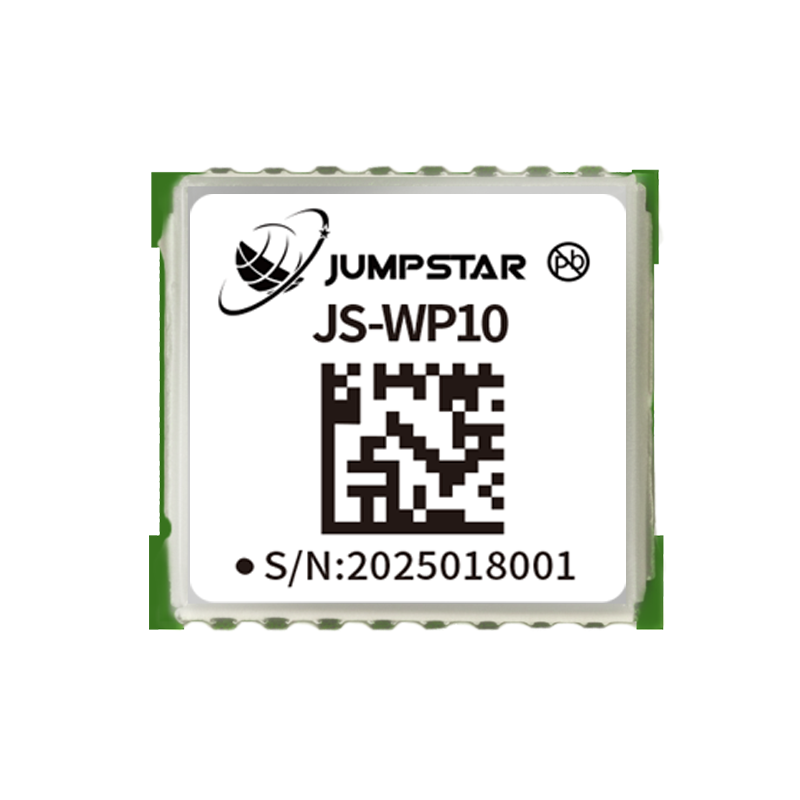

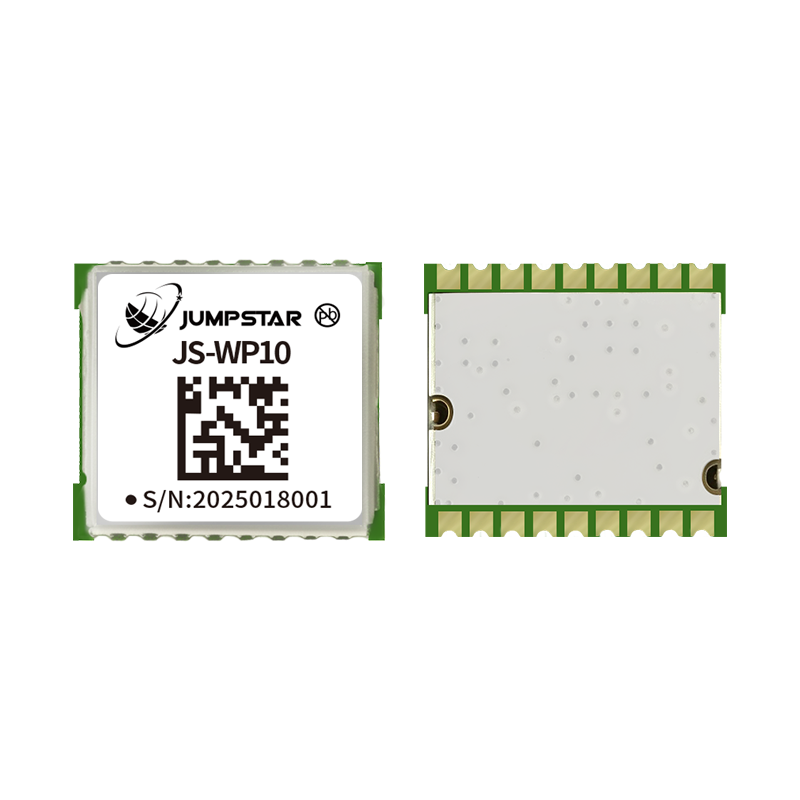

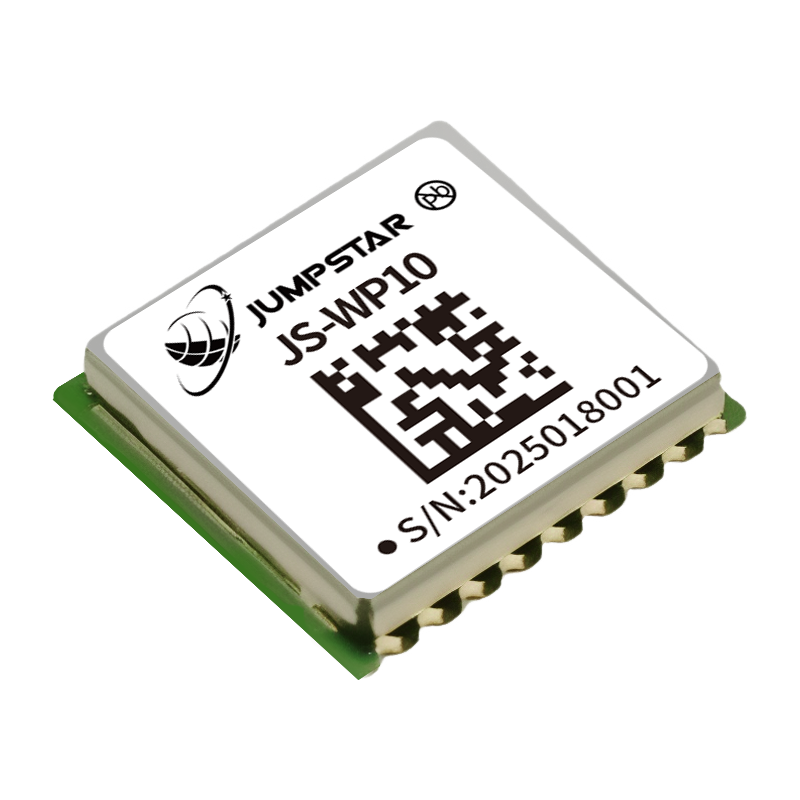

The JS-WP10 is a low-cost, low-power multi-GNSS positioning module supporting GPS, QZSS, BDS, and GLONASS. Designed with a high-performance SoC engine, it offers excellent sensitivity, fast acquisition, and reliable positioning, even in challenging environments, through advanced interference suppression technology. Ideal for a wide range of applications.
Product Features
High performance GNSS module
Supports up to 210 PRN channels
24 tracking,72 acquisition-channels
Cold start acquisition sensitivity of -148dBm and -162dBm tracking sensitivity
Up to 5 Hz navigation update rate
Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning
Supports AGPS
Integrated TCXO,LNA,SAW,RTC
Compact size (10.5mmx 9.7mm x 2.3mm±0.3mm) suitable for space-sensitive application
Support standard NMEA 0183 V4.0/4.1 and backward compliance
Performance
| Parameter | Specification |
| Receiver type | GPS/QZSS : L1C/A LONASS : L1OF BDS : B1I |
| Sensitivity | Tracking & Navigation: -162 dBm |
| Recapture sensitivity: -160 dBm | |
| Hot Start: -156 dBm | |
| Cold Start: -148 dBm | |
| Time-To-First-Fix | Cold Start: ≤32 s |
| Hot Start: 1 s | |
| Horizontal Position accuracy | Autonomous: 2 m CEP |
| Accuracy of time pulse signal | RMS: <30 ns |
| Velocity accuracy | <0.1 m/s |
| Operational limits | Dynamics: ≤ 4 g |
| Altitude: 18000 m | |
| Velocity: ≤515 m/s | |
| Frequency of time pulse signal | 1 Hz |
| Baud Rate | 9600 bps (Default) |
| Max navigation update rate | 5 Hz (Default 1 Hz) |

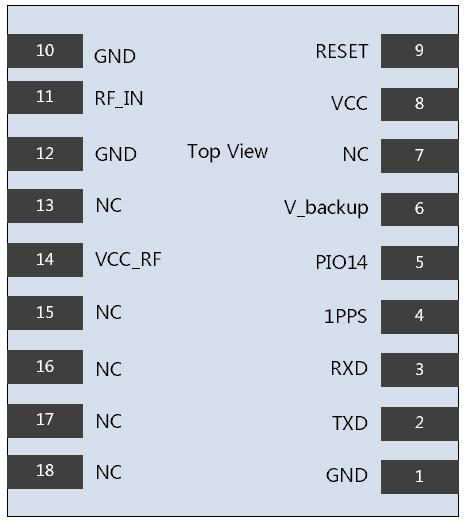

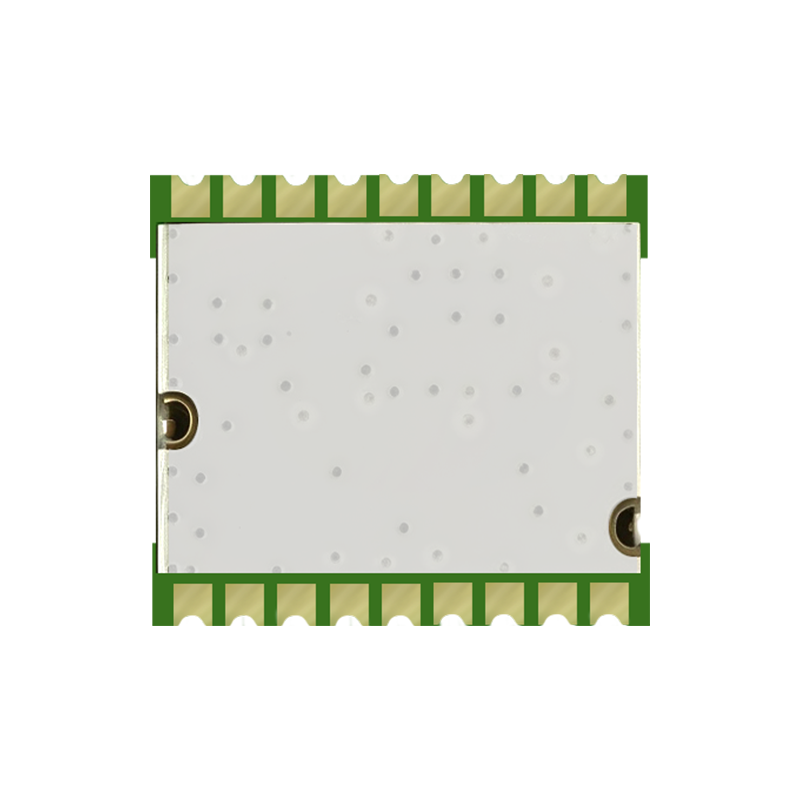

Pin assignment
| No. | Name | I/O | Description |
| 1, 10, 12 | GND | G | Ground |
| 2 | TXD | O | TTL Output (keep open if not used) |
| 3 | RXD | I | TTL Input (keep open if not used) |
| 4 | 1PPS | O | Time Pulse (keep open if not used) |
| 5 | PIO14 | - | NC (keep open if not used) |
| 6 | V_backup | P | Backup voltage supply |
| 7, 13, 15, 16, 17, 18 | NC | - | NC (keep open if not used) |
| 8 | VCC | P | Main Supply |
| 9 | RESET | - | RESET BOOT |
| 11 | RF_IN | I | GNSS Signal Input |
| 14 | VCC_RF | O | Output Voltage RF section (keep open if not used) |
Product Application
Timing
Intelligent logistics scheduling
Automotive application
Wearable devices
Vehicle positioning and navigation
ldeal for PDA, pocket PC
Marine navigation, fleet management
Intelligent robot
Handheld GPS receiver application
Portable equipment
