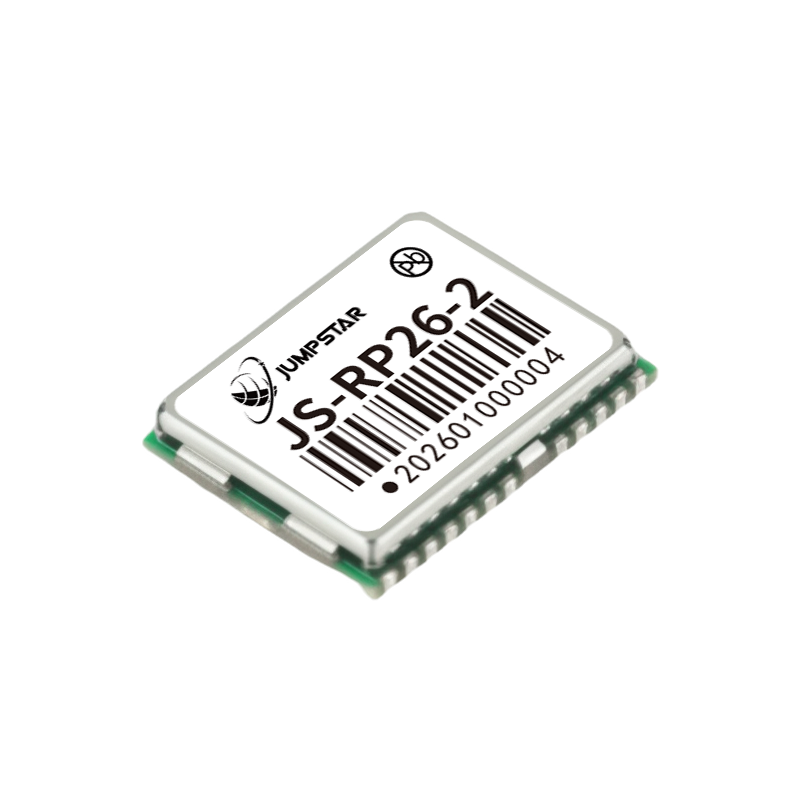

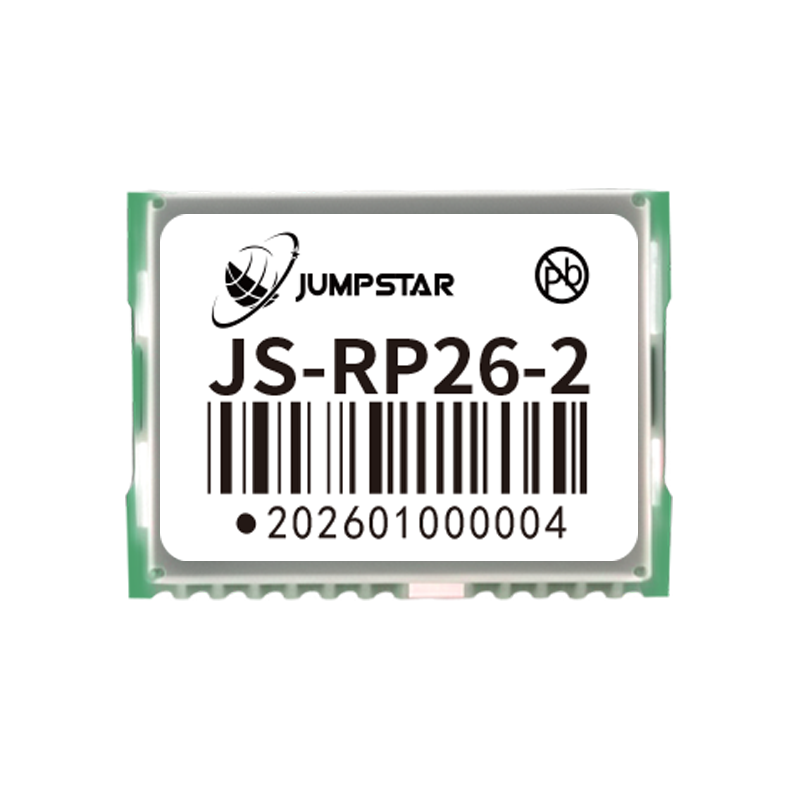

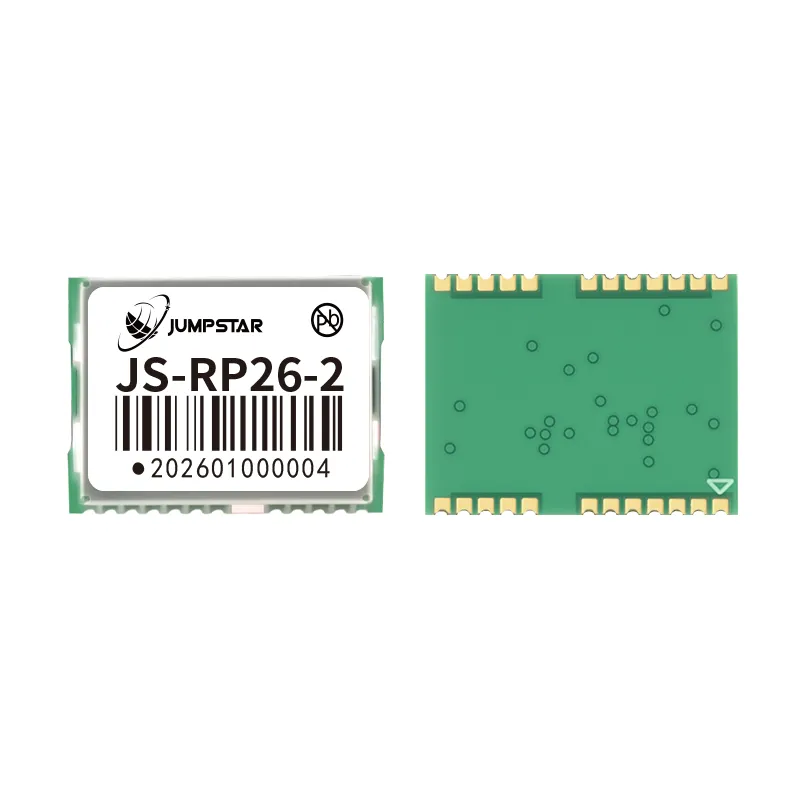

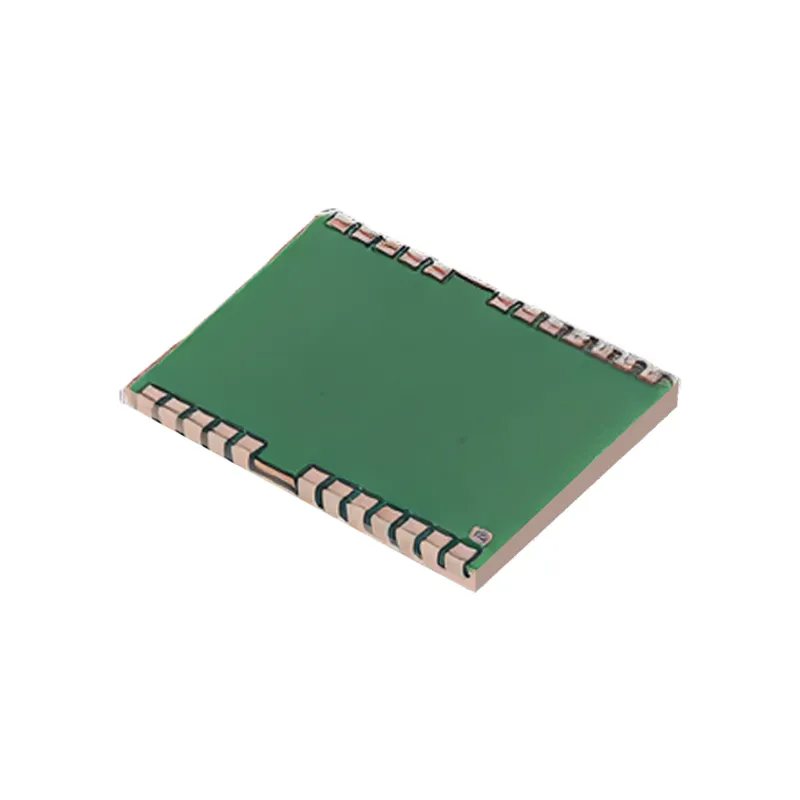

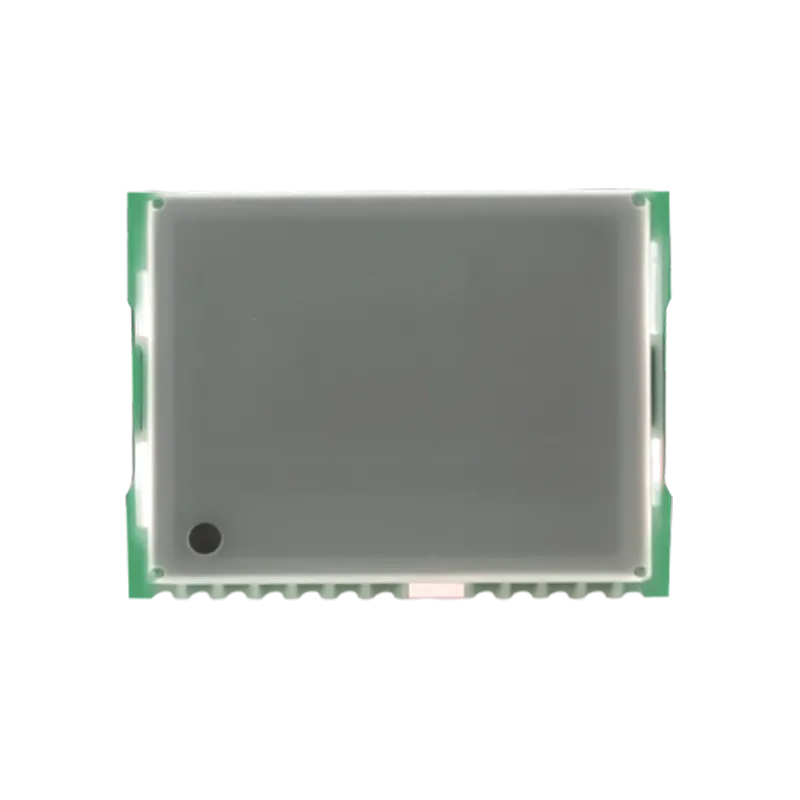

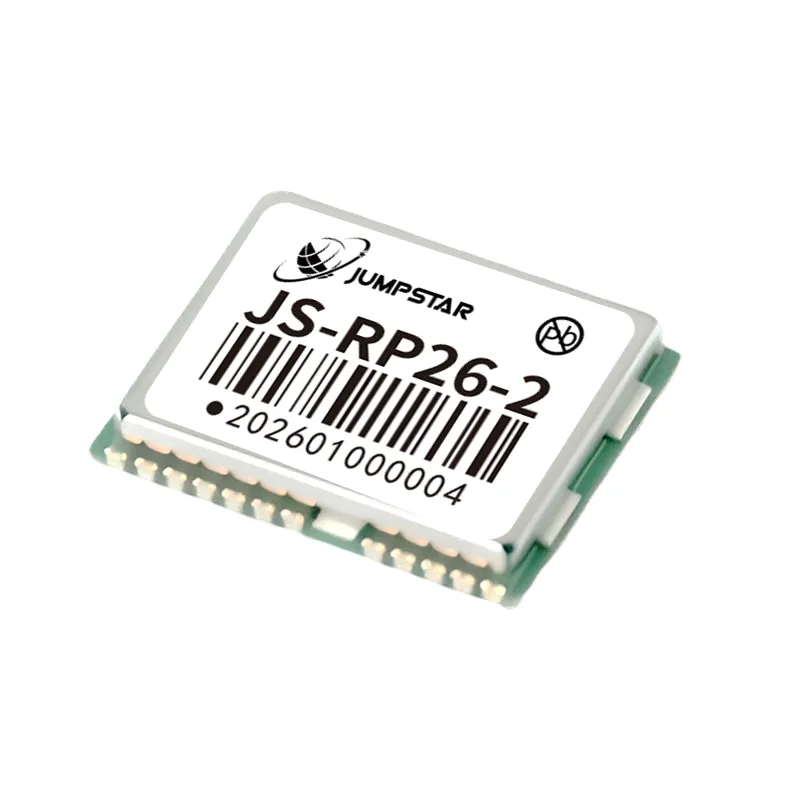

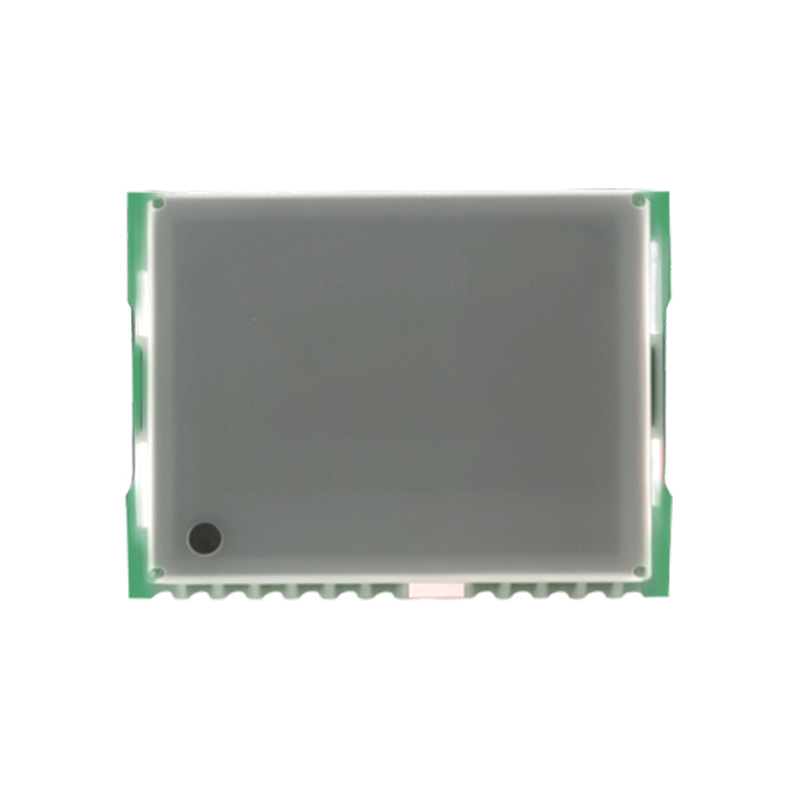

The JS-RP26-2 is a dual-band (L1/L5) GNSS module that combines high performance with low power consumption. Its advanced low-power design optimizes multi-band and multi-mode signal tracking, featuring anti-multipath and anti-interference RF front-end with up to eight anti-interference filters. Ideal for wearable devices, trackers, drones, and automotive navigation, it delivers improved positioning and TTFF performance.
Product Features
Based on high-performance SOC series
Low power consumption , high performanc
lt has 200 tracking channels and a dedicated search engine.
Up to 10Hz refresh rate
Supports dual-band across all constellations (L1+L5)
Supports AGPS and SBAS
Small size ( 16.2mm*12.2mm*2.3mm±0.3mm ), lightweight(<1.1g)
Supports standard NMEA 0183 protocol and RTCM 3.X
Performance
| Category | Specification |
| Constellation Frequency | GPS: L1 L5 |
| BDS: B1I B1C B2I B2B B2A | |
| QZSS: L1 L5 | |
| GALILEO: E1 E5 | |
| GLONASS: G1 | |
| IRNSS: L5 | |
| Sensitivity | Tracking and navigation: -165 dBm |
| Recapture: -159 dBm | |
| Hot start: -159 dBm | |
| Cold start: -148 dBm | |
| First positioning time | Cold start: 28 s |
| AGPS: 1.5 s | |
| Warm start: 1 s | |
| Positioning accuracy | Single point positioning<br>Horizontal: 1.0 m CEP<br>Vertical: 2.0 m CEP |
| Velocity accuracy | 0.1 m/s CEP |
| Tracking Channels | 200 |
| Application Permission | Dynamic ≤ 4 g |
| 20,000 m in height | |
| Speed 500 m/s | |
| Baud Rate | 115200 ~ 921600 bps (default 115200 bps) |
| Maximum update rate | 20 Hz (default 1 Hz) |
Pin Parameters
| Pin Number | Pin Name | I/O | Description |
| 1 | BOOT | - | Reserved |
| 2 | D_SEL | - | Reserved |
| 3 | TIMEPULSE | O | Time pulse (keep it on if not in use) |
| 4 | EXTINT | - | Reserved |
| 5, 6, 7, 15, 16, 17 | RES | - | Reserved |
| 8 | RESET | O | Reset pin (low activation, stays open when not in use) |
| 9 | VCC_RF | O | Output voltage RF band (keep it on if not in use) |
| 10, 12, 13, 24 | GND | - | Ground |
| 11 | RE_IN | I | GNSS signal input |
| 14 | LNA_EN | - | Reserved |
| 18 | SDA | I/O | I2C data (keep it open if not in use) |
| 19 | SCL | I/O | I2C clock (keep it open if not in use) } |
| 20 | TX A | O | TTL output (keep it on when not in use) |
| 21 | RX A | I | TTL input (keep it on when not in use) } |
| 22 | V_BAT | I | Backup voltage power supply |
| 23 | VCC | P | Main power supply |
Product Application
Emergency Rescue
Intelligent logistics scheduling
Automotive applications and tracking navigation
Personal protection
AVL and location-based services
The ideal PDA, a pocket personal computer
Maritime navigation and fleet management
UAV
