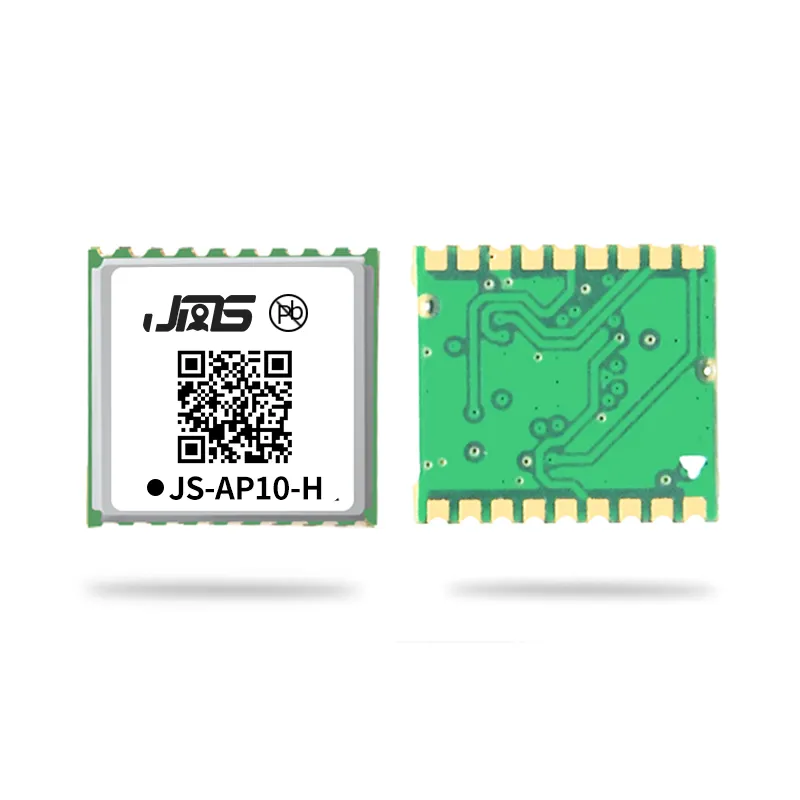

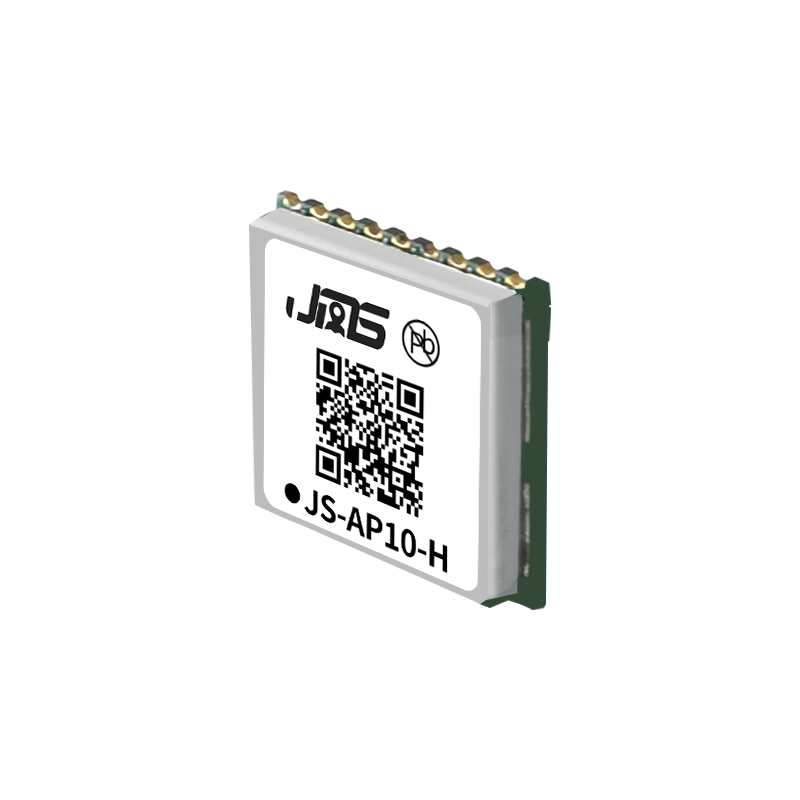

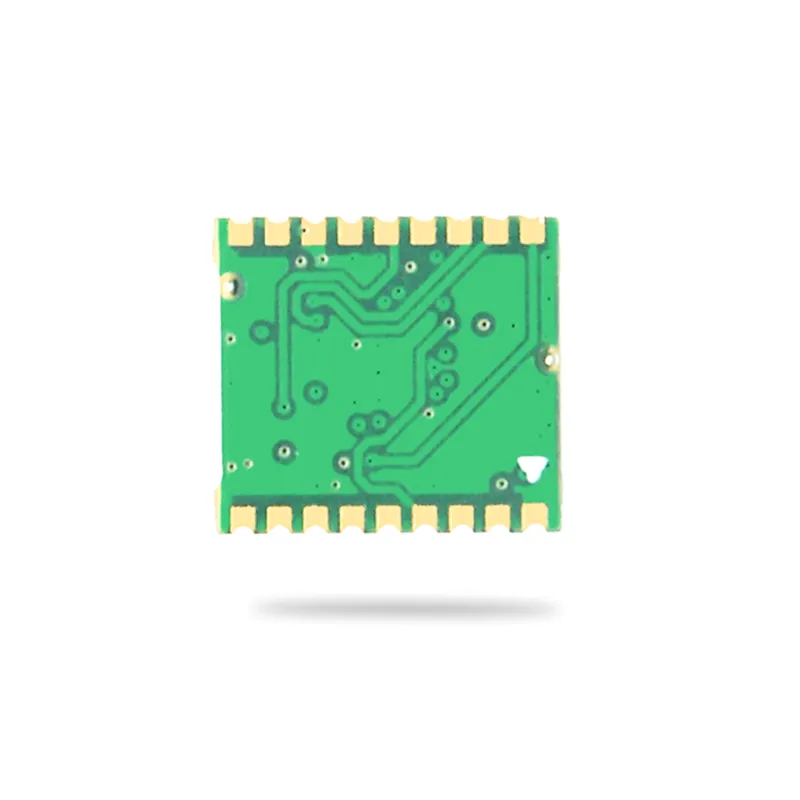

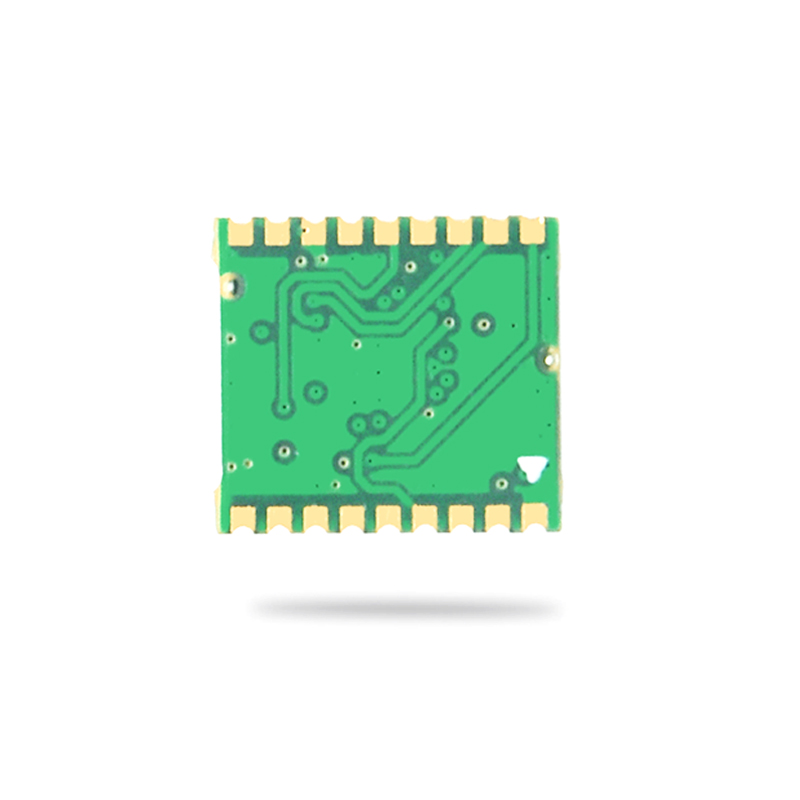

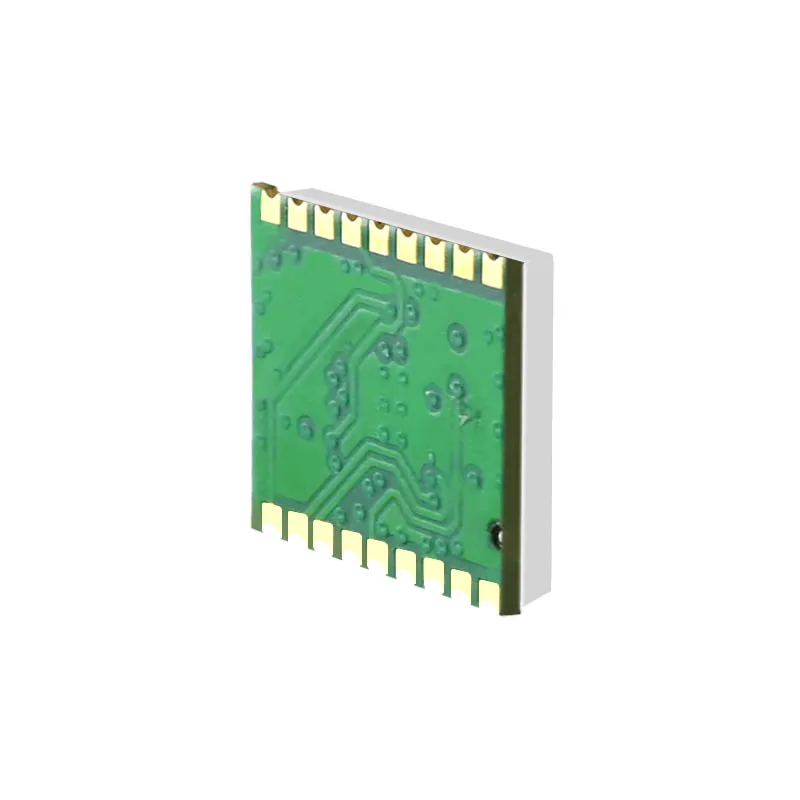

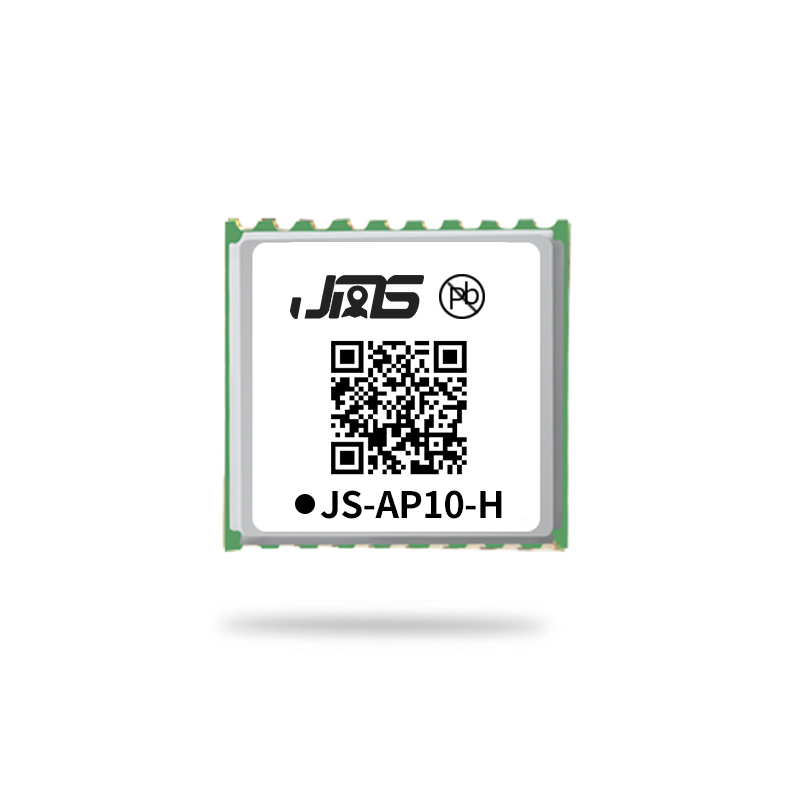

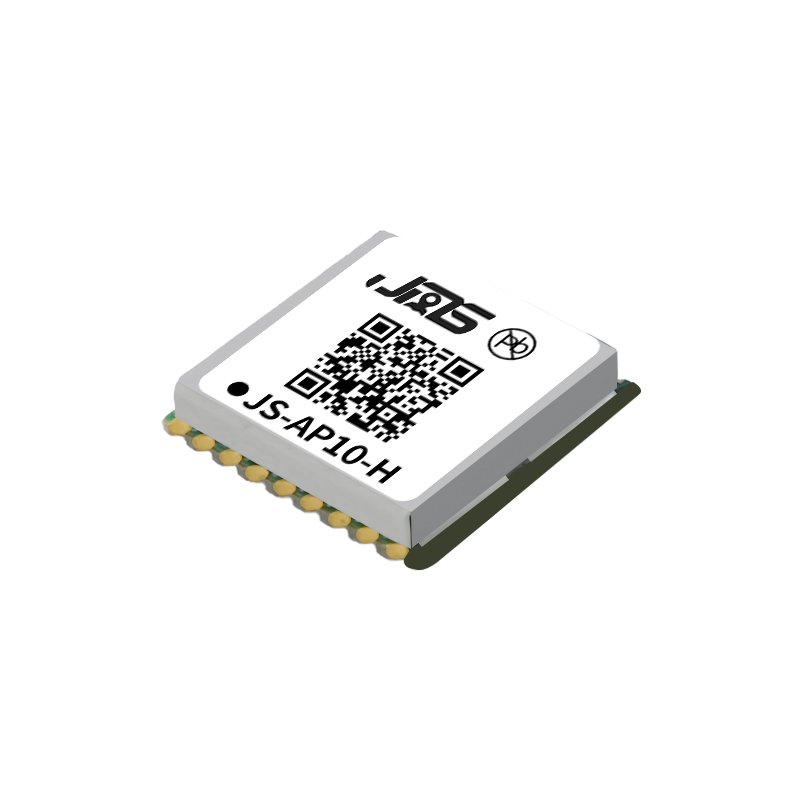

JS-AP10-H is a high-performance GNSS module designed for location-aware and logistics applications. Its dual-channel RF and baseband architecture enables simultaneous reception of two GNSS systems, delivering efficient positioning with low power consumption. Integrated intelligent power management ensures stable, energy-efficient operation for industrial and portable devices such as wearables, drones, shared mobility, and vehicle navigation.
Product Features
Build on high performance GNSS single chip 2023
Configurable peripheral l0 pins.88 channels in Search mode
Low power consumption
Up to 5Hz navigation update rate
Receive GPS+BDS/GLONASS+Galileo at the same time.Supports AGPS
Antenna short circuit protection and open circuit detection
ARM Cortex-M4F processor with cache controller
Intelligent interference detection and suppression
Integrated TCXO, LNA, SAW,RTC
Compact size(10.5mm x 9.7mm x2.3mm±0.3mm ) suitable for space-sensitive application
Support standard NMEA 0183 V4.00 /V4.10 protocol
Performance
| Parameter | Specification |
| Receiver type | GPS/QZSS L1C/A Galileo E1 GLONASS L1 BDS B1I B1C SBAS WAAS,EGNOS,MSAS,GAGAN,SDCM |
| Sensitivity | Tracking & Navigation: -163dBm |
| Reacquisition: -158dBm | |
| Hot Start: -156dBm | |
| Cold Start: -148dBm | |
| Time-To-First-Fix | Cold Start: 28 s |
| Hot Start: 1 s | |
| Horizontal position accuracy | GNSS: 1.5 m CEP |
| SBAS: < 1.0 m CEP | |
| D-GNSS: 1.0m CEP | |
| Accuracy of time pulse signal | 1PPS: 20ns |
| Velocity accuracy | GNSS: 0.1 m/s CEP |
| SBAS: 0.1 m/s | |
| D-GNSS: 0.1m/s | |
| Operational limits | Altitude: 18000 m |
| Velocity: 515 m/s | |
| Baud rate | 9600 ~ 460800 bps, (Default 9600bps ) |
| Max navigation update rate | GNSS: 5 Hz (Default 1Hz) |

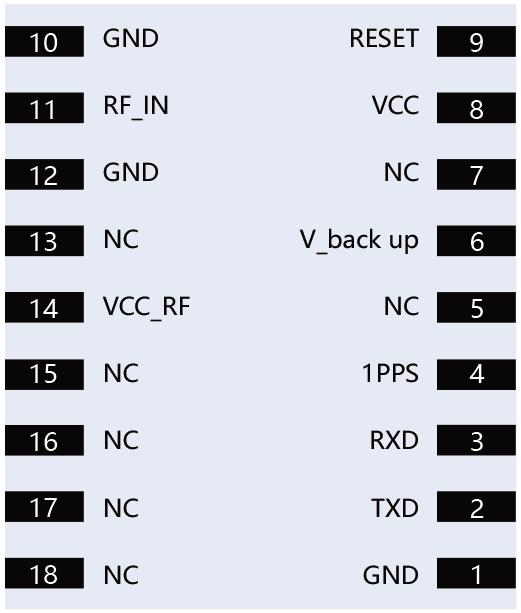

Pin Parameters
.png)
| No. | Name | I/O | Description |
| 1,10,12 | GND | G | Ground |
| 2 | TXD | O | TTL Output (keep open if not used) |
| 3 | RXD | I | TTL Input (keep open if not used) |
| 4 | 1PPS | O | Time Pulse (keep open if not used) |
| 6 | V_backup | I | Backup voltage supply |
| 5,7,13,15,16,17,18 | NC | -- | NC (keep open if not used) |
| 8 | VCC | P | Main Supply |
| 9 | RESET | O | RESET_N (Active low, keep open if not used) |
| 11 | RF_IN | I | GNSS Signal Input |
| 14 | VCC_RF | O | Output Voltage RF section (keep open if not used) |
Product Application
UAV
Automotive application
AVL and Location-Based services
Marine navigation, fleet management
Handheld GPS receiver application
Intelligent logistics scheduling
Personnel protective
Ideal for PDA, pocket PC
Car navigation and tracking
Intelligent robot
