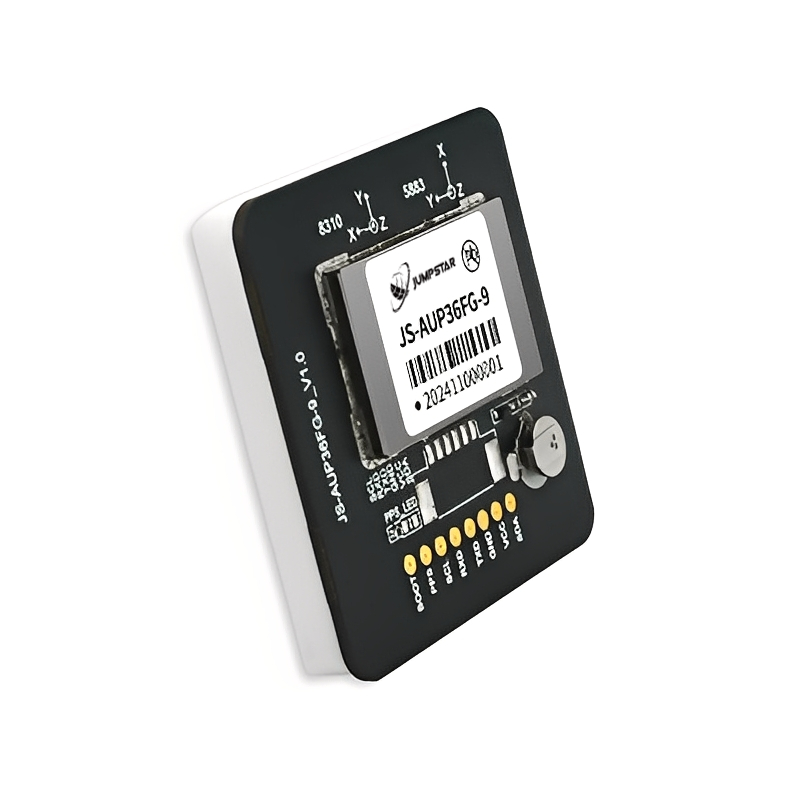

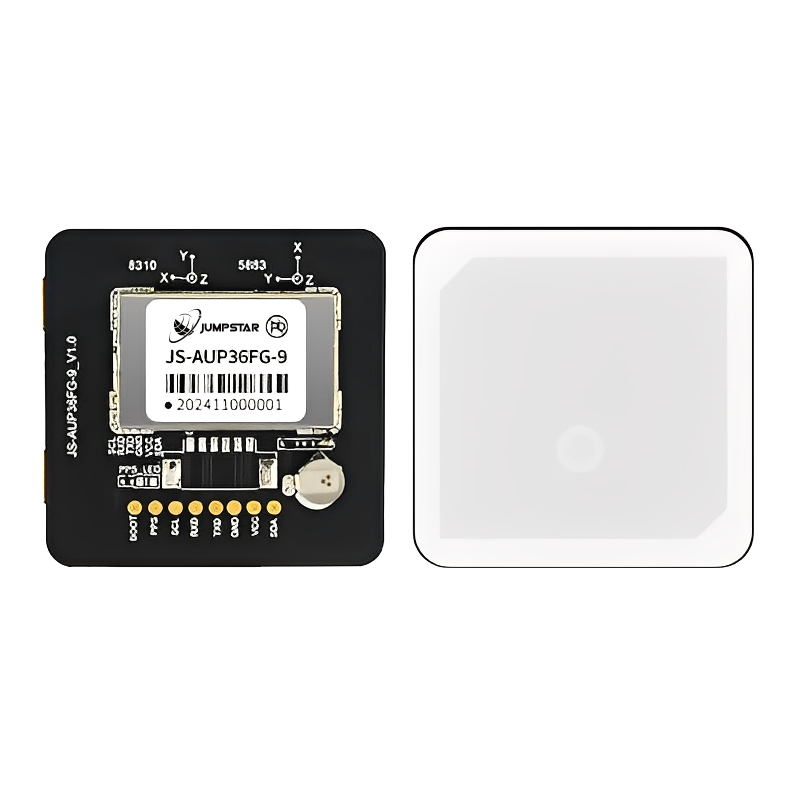

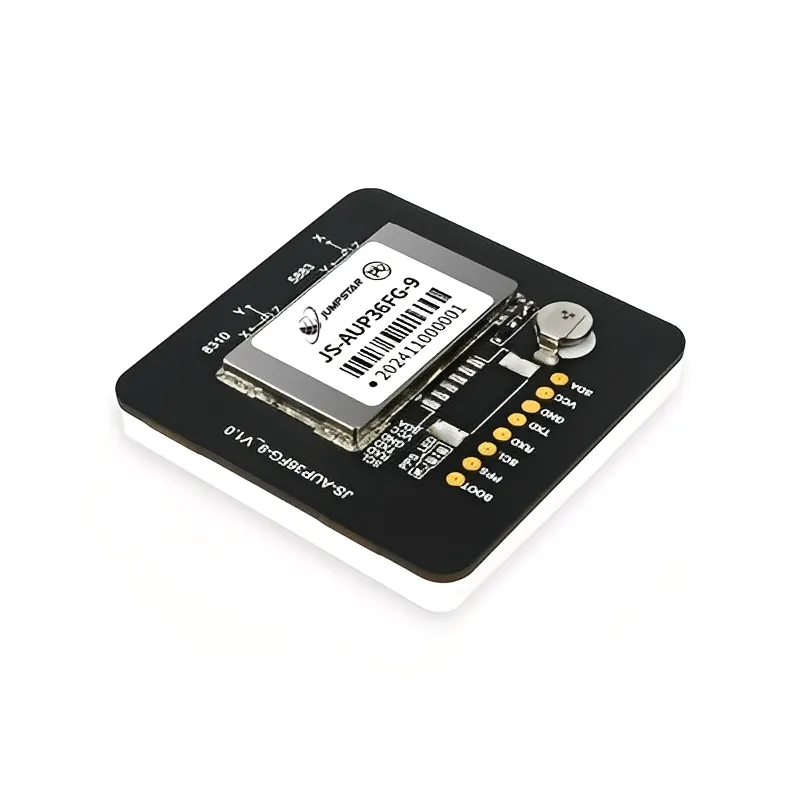

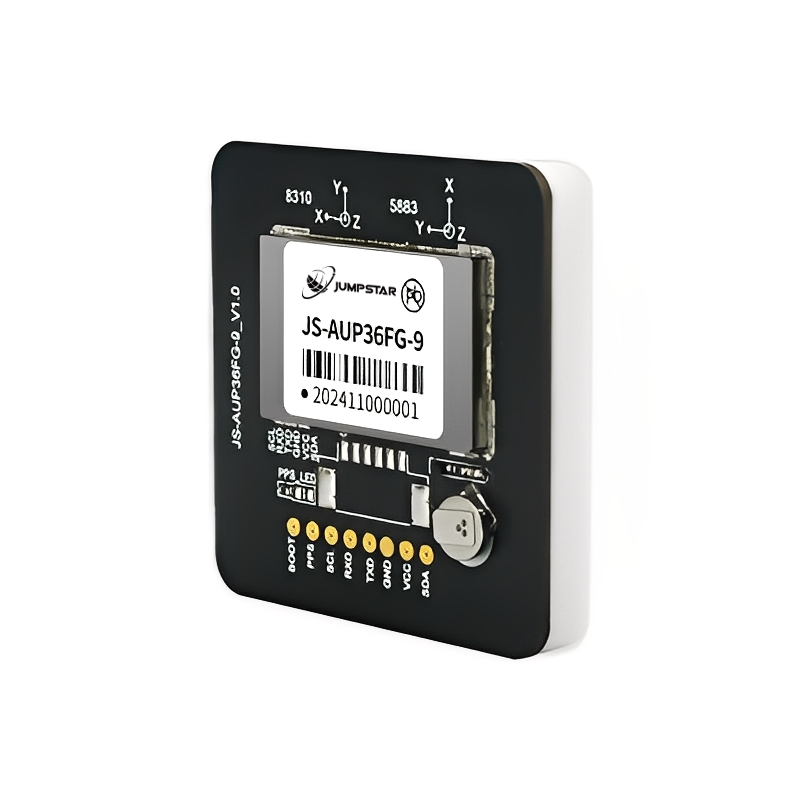

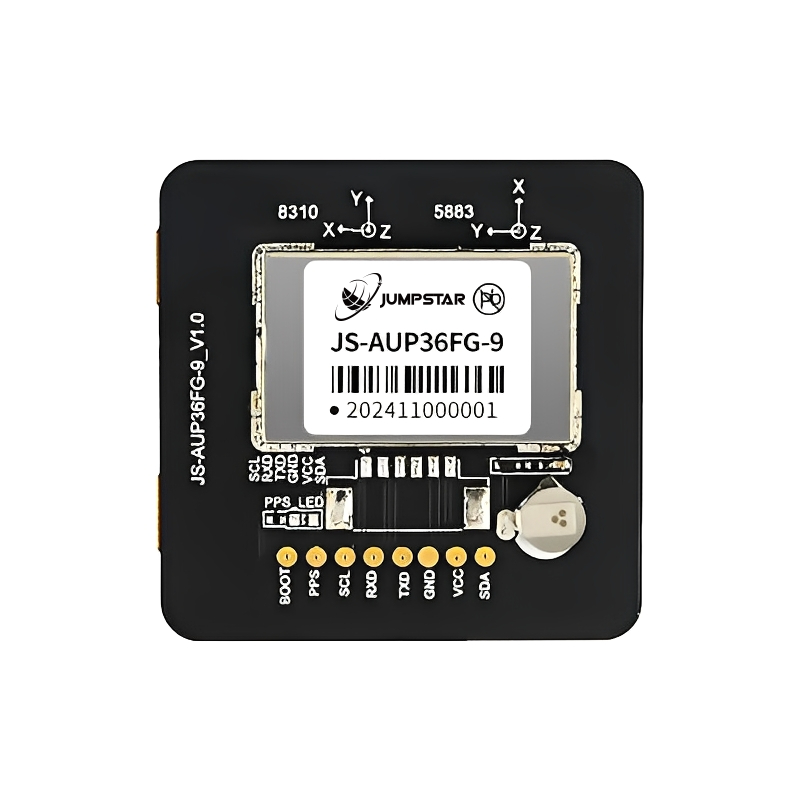

The JS-AUP36FG-9 is a multi-GNSS positioning module supporting GPS, BDS, GLONASS, and Galileo. With a multi-mode solution, low power consumption, and cost efficiency, it delivers high performance and exceptional sensitivity. The advanced SOC positioning engine ensures fast acquisition times and reliable positioning, even in challenging signal conditions, with effective interference suppression. Ideal for a wide range of applications and end-products.
Product Features
Build on high performance GNSS SOC series.49 acquisition-channel /49 tracking
Cold start acquisition sensitivity of -148dBm and -167dBm tracking sensitivity
Default 1Hz navigation update rate
Supports GPS, BDS, GLONASS,Galileo
Supports A-GNSS
Integrated TCXO, LNA, SAW,RTC
Configurable peripheral 10 pins.Integrated high gain antenna
Low power consumption and It has Intelligent power control mechanism
Single supply with wide voltage range
Compact size(36.0*36.0*8.5mm±0.3mm) suitable for space-sensitive application
Rich hardware interface to support multiple configurations. UART, can optional
Performance
| Parameter | Specification |
| Receiver type | GPS L1C/A |
| SBAS L1C/A | |
| QZSS L1C/A | |
| GLONASS L1OF | |
| BDS B1I | |
| Galileo E1B/C | |
| Sensitivity | Tracking & Navigation: -167 dBm |
| Reacquisition: -163 dBm | |
| Cold Start: -148 dBm | |
| Time-To-First-Fix | Cold Start: 26 s |
| Hot Start: 1 s | |
| Horizontal Position accuracy | Autonomous: 2.5 m CEP |
| SBAS: 2.0 m CEP | |
| Accuracy of time pulse signal | RMS: 30 ns |
| Velocity accuracy | 0.05 m/s |
| Operational limits | Dynamics: ≤ 4 g |
| Altitude: 80000 m | |
| Velocity: 500 m/s | |
| Frequency of time pulse signal | 1 Hz |
| Baud Rate | 4800–921600 bps |
| Max navigation update rate | 10 Hz (Default 1 Hz) |

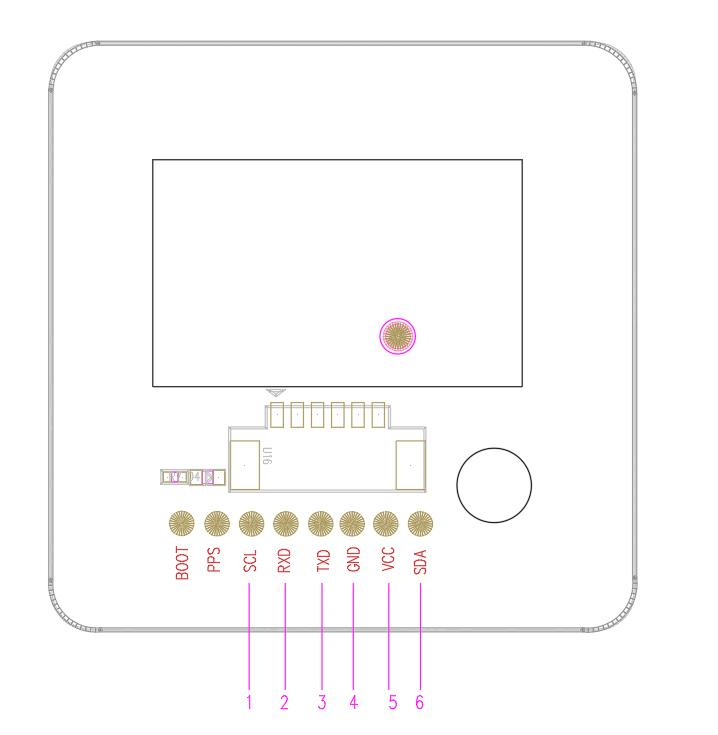

Pin Parameters
| No. | Name | I/O | Description |
| 1 | SCL | I/O | I2C Clock (keep open if not used) |
| 2 | CANL/RXD | I | Serial Port (keep open if not used) |
| 3 | CANH/TXD | O | Serial Port (keep open if not used) |
| 4 | GND | G | Ground |
| 5 | VCC | P | Main Supply |
| 6 | SDA | I/O | I2C Data (keep open if not used) |
Product Application
Handheld GPS receiver application
Automotive application
ldeal for PDA,Pocket PC
Car navigation and tracking
AVL and Location-Based Services
Sports and Recreation
Timing application
Marine Navigation,Fleet Management
UAV
Protocols
| Protocol | Type |
| NMEA 0183 V4.11 | Input/Output, ASCII |
