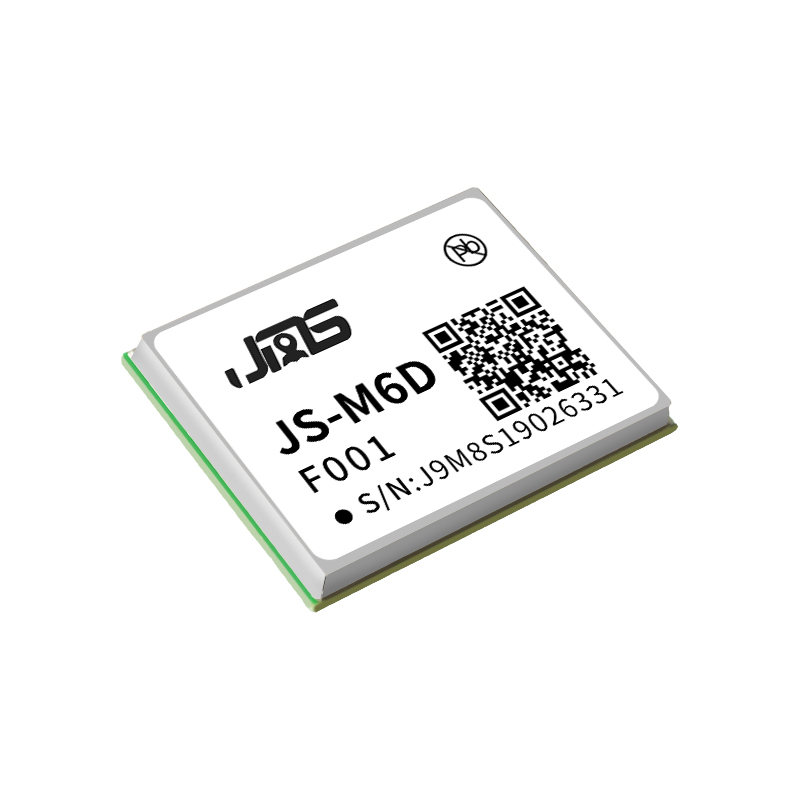

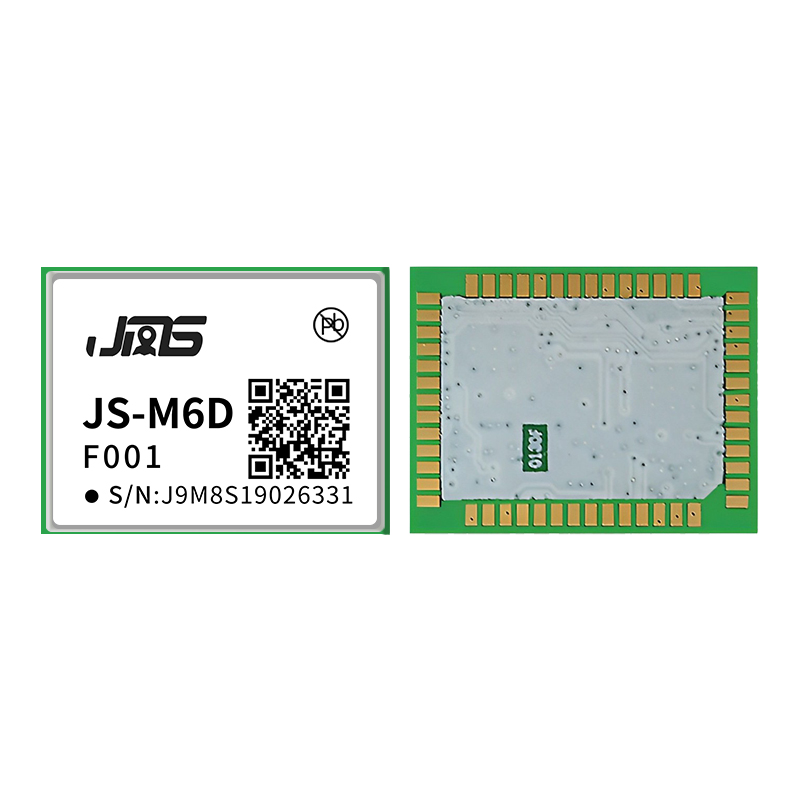

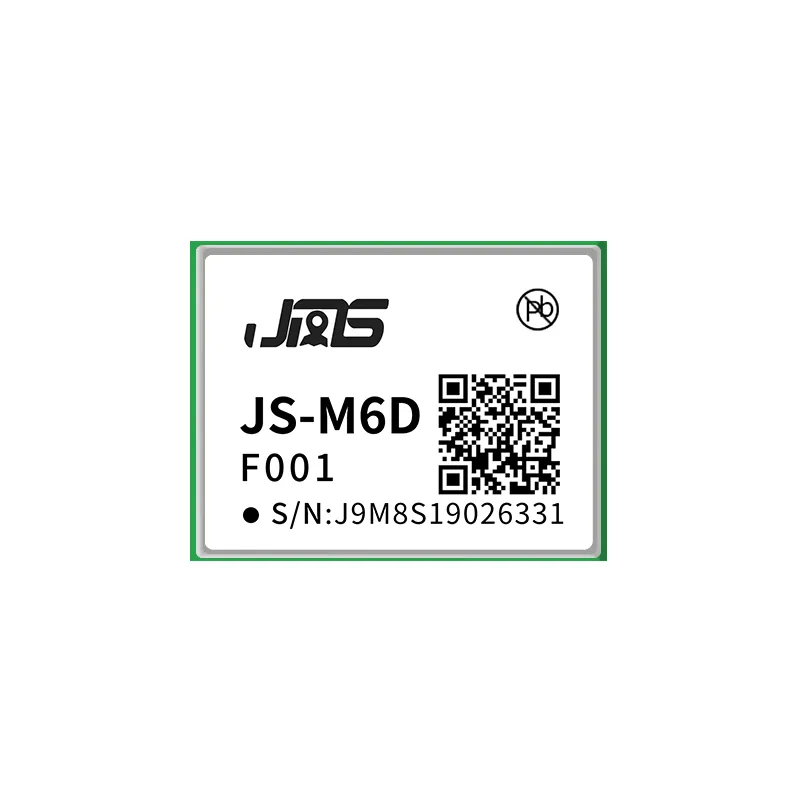

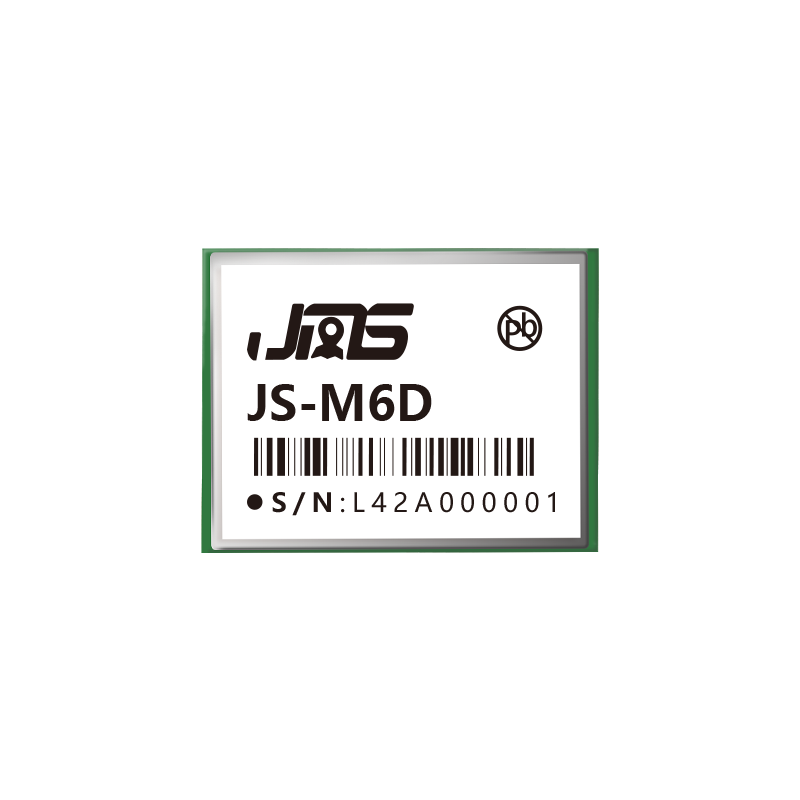

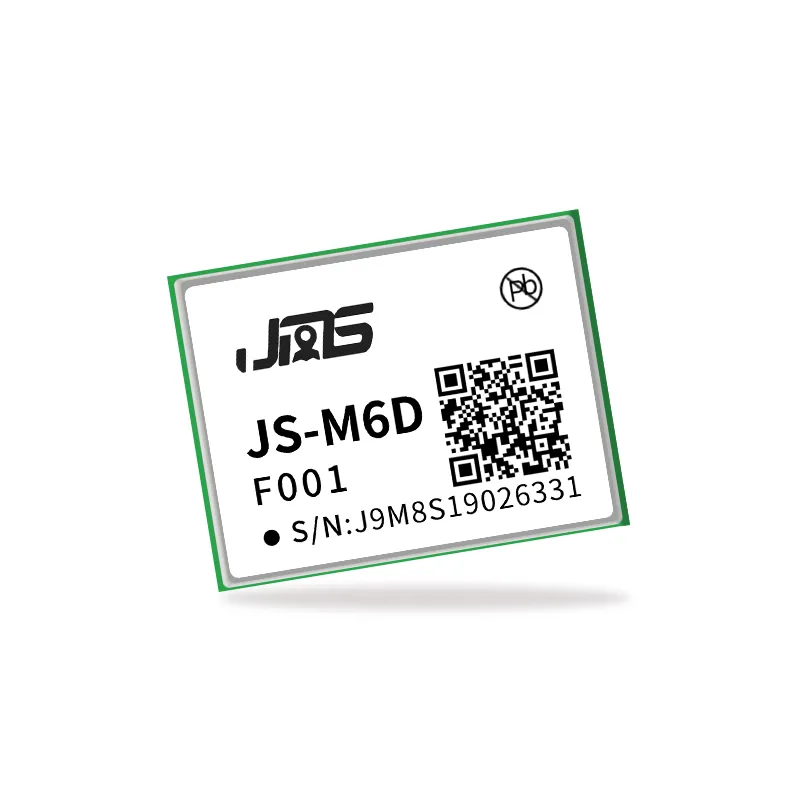

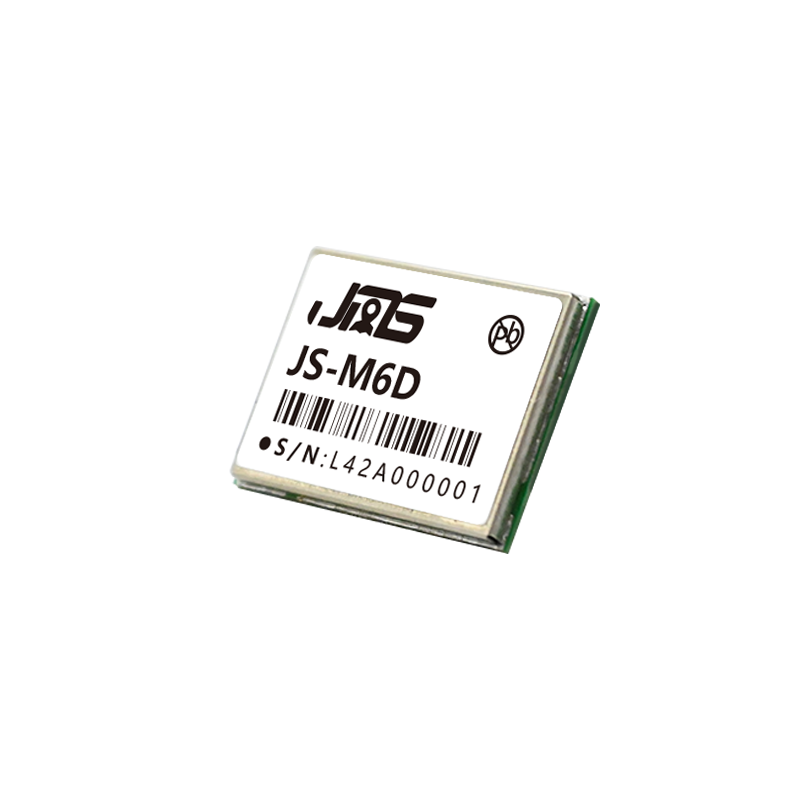

The JS-M6D is a compact, multi-frequency, multi-mode RTK high-precision positioning module that supports six frequency points: BDS B1I+B2I, GPS/QZSS L1+L2, and GLONASS G1+G2. Designed with an LGA package, it is compatible with standard pick-and-place and reflow soldering processes, making integration simple and efficient. With high sensitivity, strong anti-interference, and outstanding performance, the JS-M6D delivers reliable and precise positioning for demanding applications.
Product Features
Can receive multiple systems and multiple frequencies simultaneously
Anti-jamming
Support DGNSS, RTK centimeter positioning accuracy

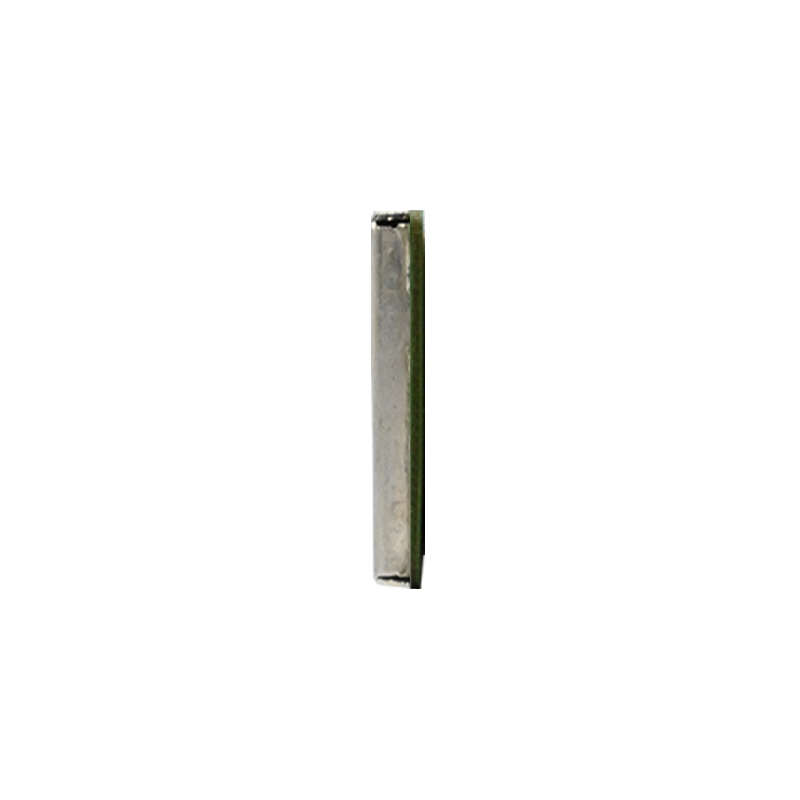

Small package size of（22.0mm×17.0mm x2.4mm±0.2mm）, easy to integrate
96 search channels and 60 trace channels
MSM7 input is supported
Support the Beidou-3 satellite
Compatible with Sinan base station
Performance
| Parameter | Specification |
| Receiver type | GPS/QZSS L1 L2 GLONASS G1 G2 BDS B1I B2I ( Including the Beidou -3 satellite ) |
| Sensitivity | Tracking & Navigation : -163 dBm |
| Reacquisition : -147 dBm | |
| Time-To-First-Fix | Cold Start : ≤ 35 s |
| Cold Start : ≤ 3 s（ AGNSS ） | |
| Hot Start : ≤ 1 s | |
| Reacquisition : ≤ 1 s | |
| Horizontal Position accuracy | 3D : 2.0 m CEP |
| D-GNSS : 0.5 m CEP | |
| RTK : 2 cm + 1 ppm ( Horizontal ) | |
| Accuracy of time pulse signal | 1 PPS : 20 ns |
| Velocity accuracy | 0.05 m/s |
| Operational limits | Dynamics : ≤ 4 g |
| Altitude : 18000 m | |
| Velocity : 515 m/s | |
| Baud Rate | 9600 - 230400 bps（Default 115200 bps） |
| Max navigation update rate | 10 Hz (If you need additional navigation update rates, please contact us) |

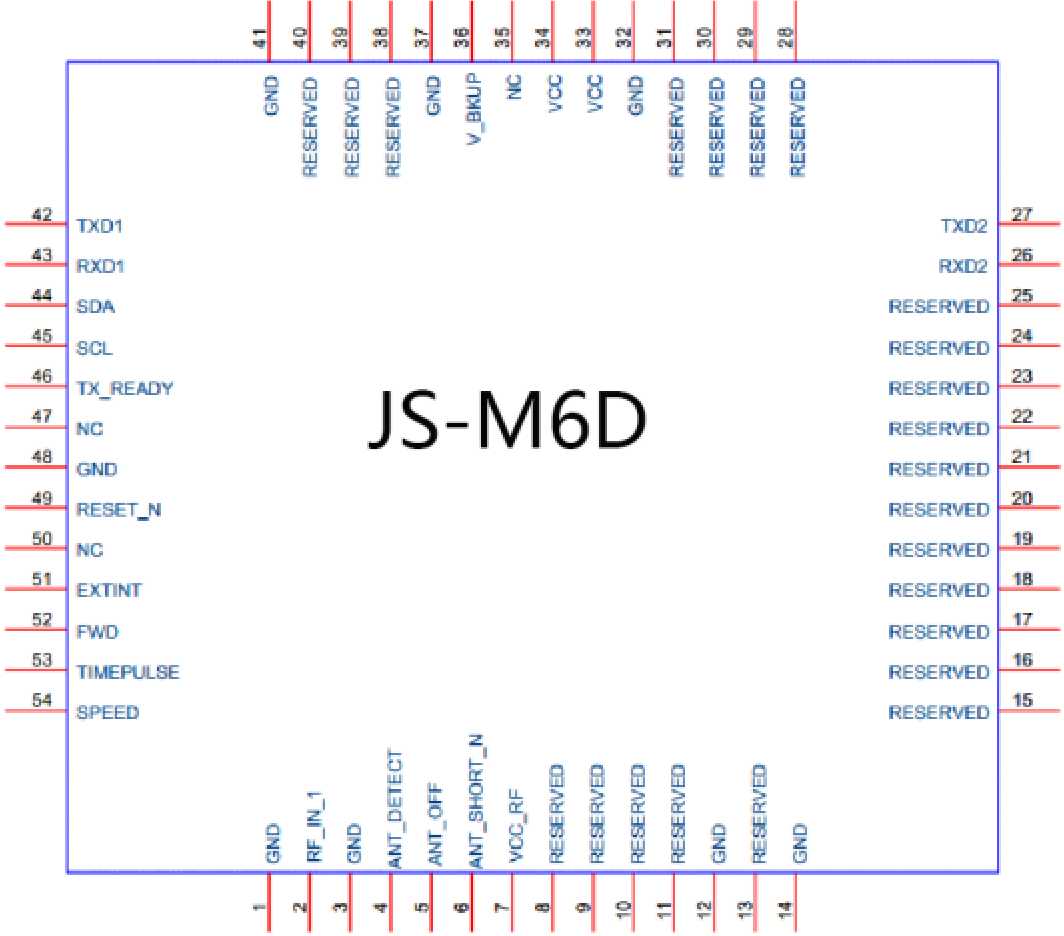

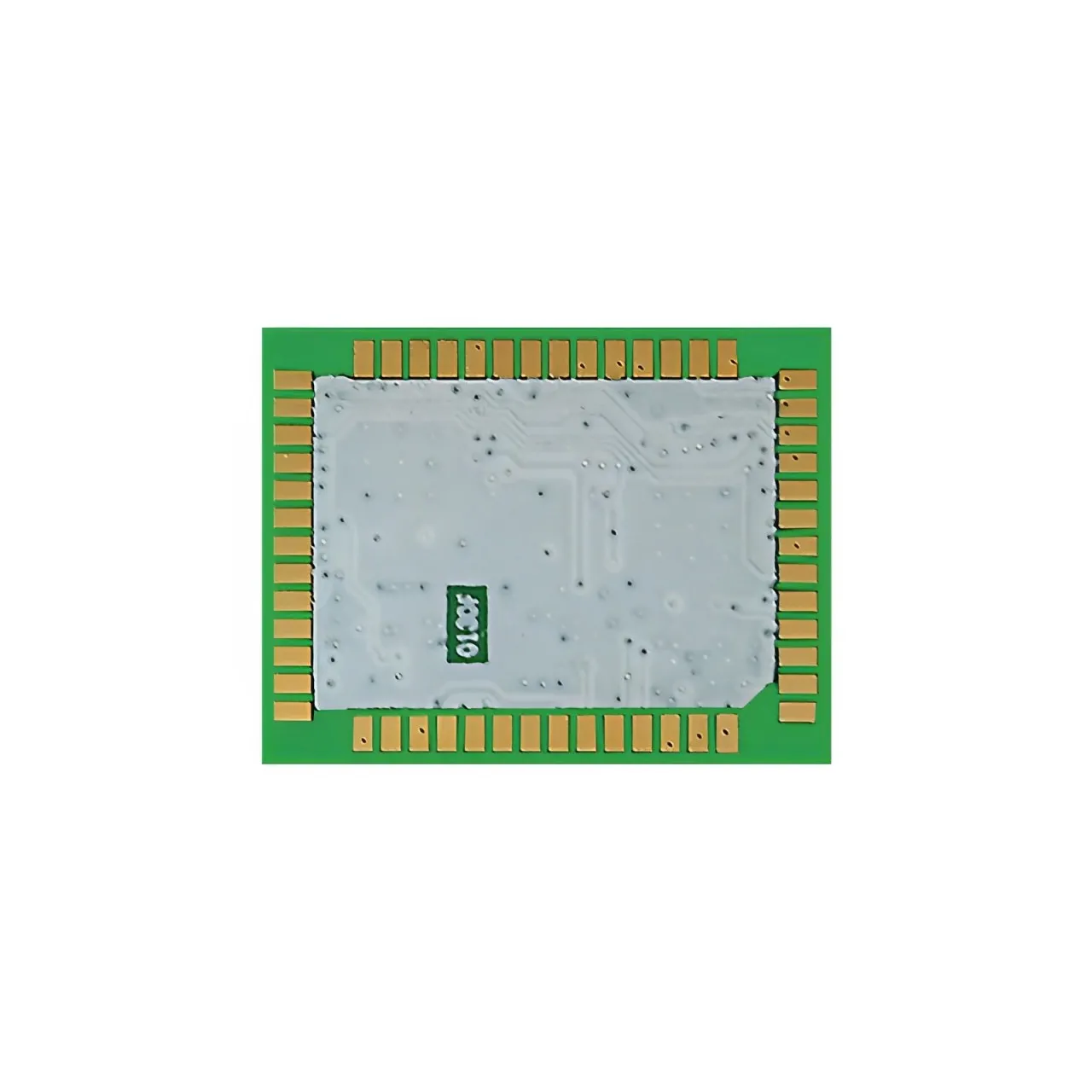

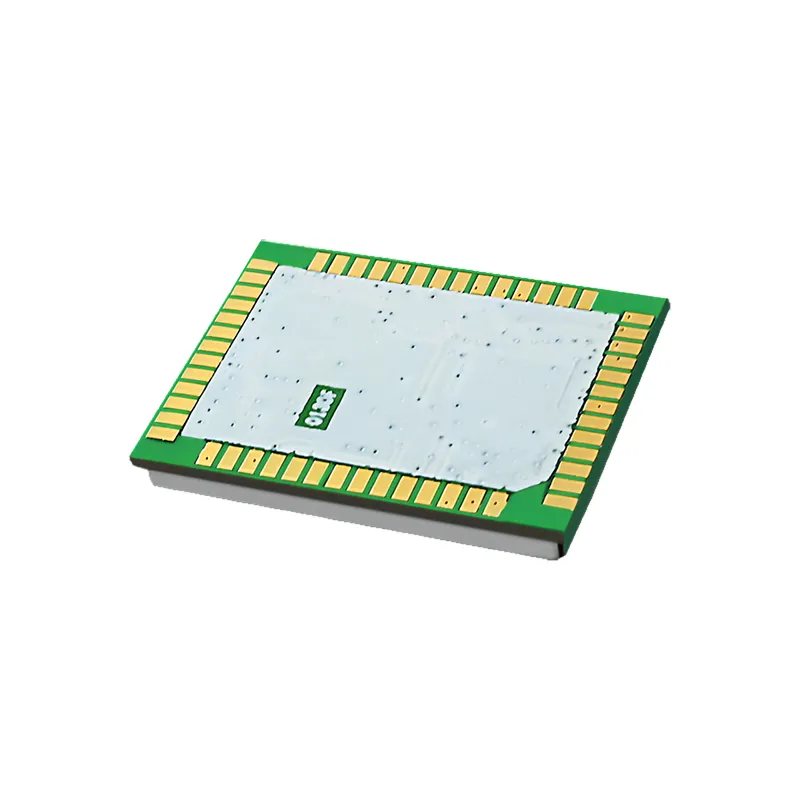

Pin Parameters
| Pin | Name | I/O | Electical level | Description |
| 1 | GND | - | -- | Ground |
| 2 | RF_IN_1 | I | -- | RF input |
| 3 | GND | - | -- | Ground |
| 4 | ANT_DETECT | O | 3.3V±10% | Antenna open circuit detection output (high open circuit, low normal) |
| 5 | ANT_OFF | O | 3.3V±10% | Built-in antenna feed switch control (high off, low enable) |
| 6 | ANT_SHORT_N | O | 3.3V±10% | Antenna short circuit detection output (high normal, low short circuit) |
| 7 | VCC_RF | O | 3.3V±10% | Voltage for external Antenna |
| 8 | RESERVED | - | - - | Reserved |
| 9 | RESERVED | - | - - | Reserved |
| 10 | RESERVED | - | - - | Reserved |
| 11 | RESERVED | - | - - | Reserved |
| 12 | GND | - | -- | Ground |
| 13 | RESERVED | - | - - | Reserved |
| 14 | GND | - | -- | Ground |
| 15 | RESERVED | - | - - | Reserved |
| 16 | RESERVED | - | - - | Reserved |
| 17 | RESERVED | - | - - | Reserved |
| 18 | RESERVED | - | - - | Reserved |
| 19 | RESERVED | - | - - | Reserved |
| 20 | RESERVED | - | - - | Reserved |
| 21 | RESERVED | - | - - | Reserved |
| 22 | RESERVED | - | - - | Reserved |
| 23 | RESERVED | - | - - | Reserved |
| 24 | RESERVED | - | - - | Reserved |
| 25 | RESERVED | - | - - | Reserved |
| 26 | RXD2 | I | - - | Correction UART input |
| 27 | TXD2 | - | - - | Reserved |
| 28 | RESERVED | - | - - | Reserved |
| 29 | RESERVED | - | - - | Reserved |
| 30 | RESERVED | - | - - | Reserved |
| 31 | RESERVED | - | - - | Reserved |
| 32 | GND | - | -- | Ground |
| 33 | VCC | I | 3.3V±10% | Voltage supply |
| 34 | VCC | I | 3.3V±10% | Voltage supply |
| 35 | NC | - | -- | Do not connect to any network |
| 36 | V_BKUP | I | 1.8V-3.6V | Backup supply voltage |
| 37 | GND | - | -- | Ground |
| 38 | RESERVED | - | - - | Reserved |
| 39 | RESERVED | - | - - | Reserved |
| 40 | RESERVED | - | - - | Reserved |
| 41 | GND | - | -- | Ground |
| 42 | TXD1 | O | 3.3V±10% | UART1 data transmition |
| 43 | RXD1 | I | 3.3V±10% | UART1 data acceptance |
| 44 | SDA | I/O | 3.3V±10% | I2C Data |
| 45 | SCL | I/O | 3.3V±10% | I2C Clock |
| 46 | TX_READY | O | 3.3V±10% | TX Data ready to complete output indication (high efficiency) |
| 47 | NC | - | -- | Do not connect to any network |
| 48 | GND | - | -- | Ground |
| 49 | RESET_N | I | 3.3V±10% | Module reset signal input (low effective) |
| 50 | NC | - | -- | Do not connect to any network |
| 51 | EXTINT | I | 3.3V±10% | External interrupt input pin (low valid) |
| 52 | FWD | - | - - | Reserved |
| 53 | TIMEPULSE | O | 3.3V±10% | PPS output |
| 54 | SPEED | - | - - | Reserved |
Product Application
UAV
Automotive application
Precision agriculture
AVL and Location-Based Services
Marine Navigation, Fleet Management
Handheld GPS receiver application
Intelligent logistics scheduling
Measurement of surveying and mapping
Personnel protective
Driving test
Ideal for PDA, Pocket PC
Car navigation and tracking
Geographic Surveying
Intelligent robot
Protocols
| Protocol | Type |
| NMEA 0183 | Out put/In put |
| RTCM3.x | Out put/In put |
| JMS | Custom |
