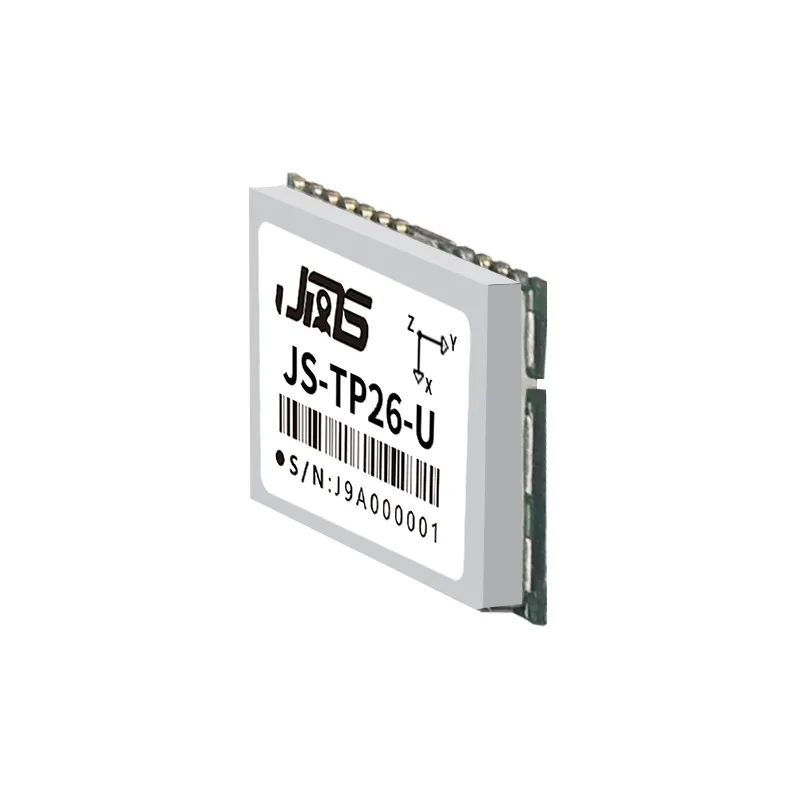

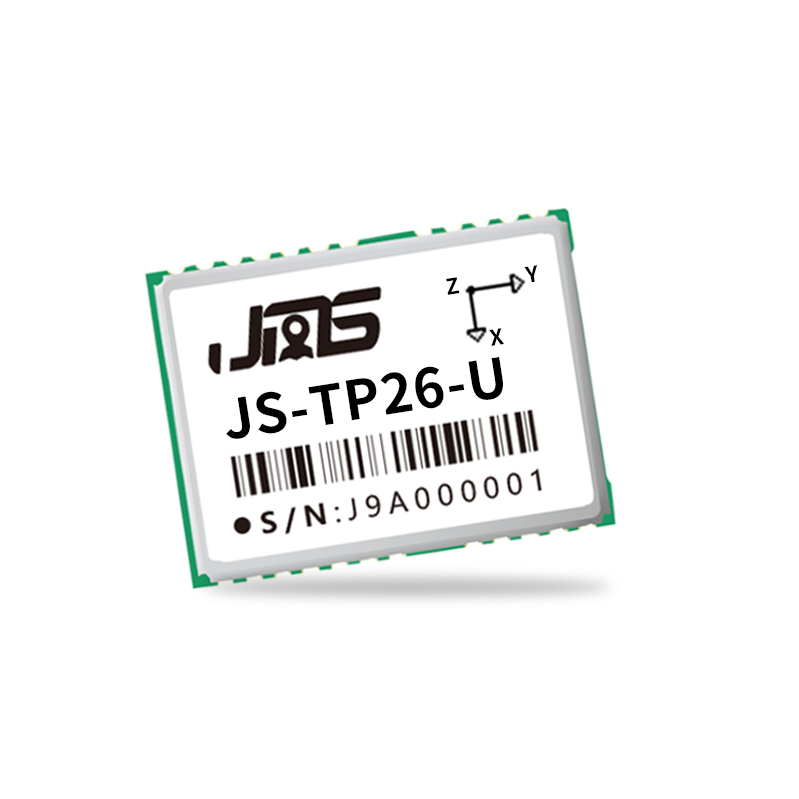

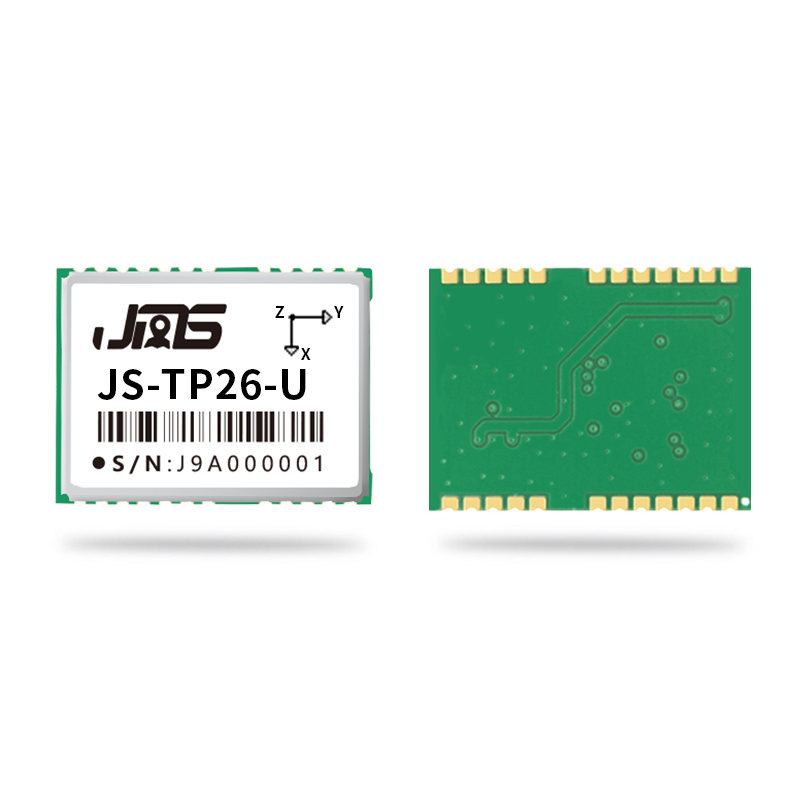

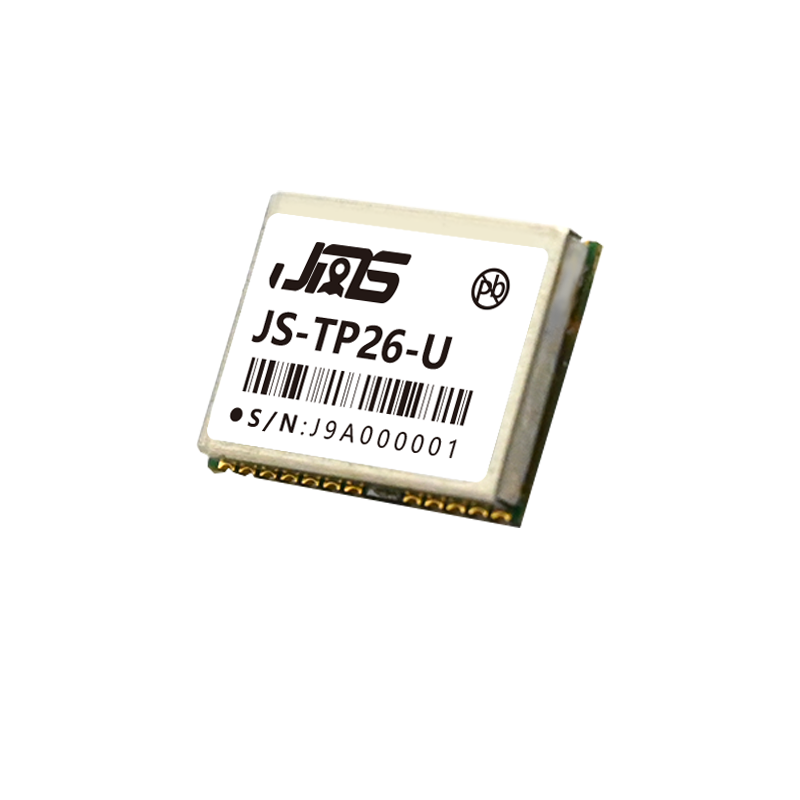

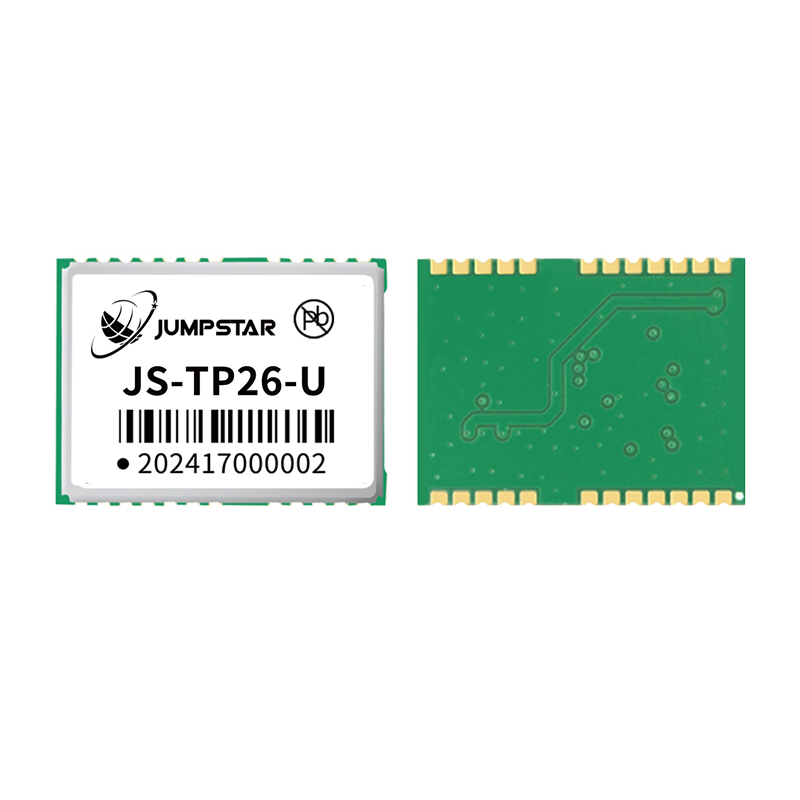

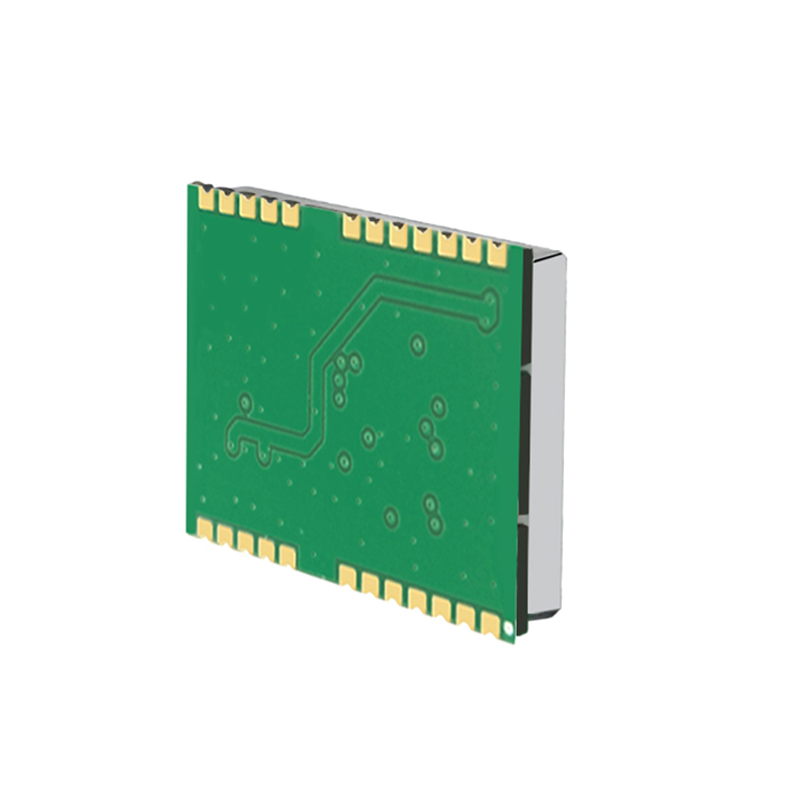

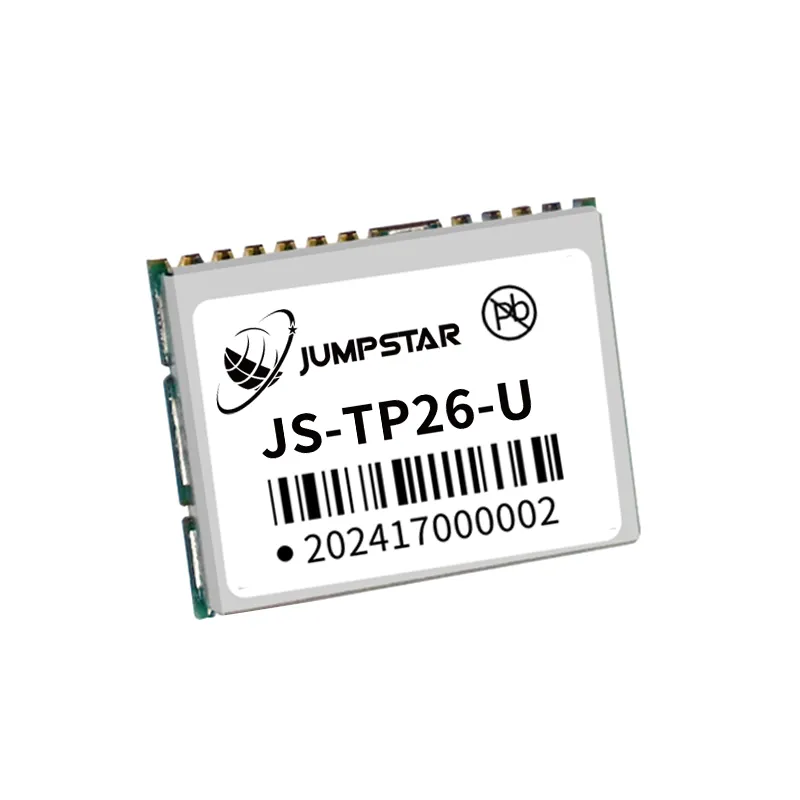

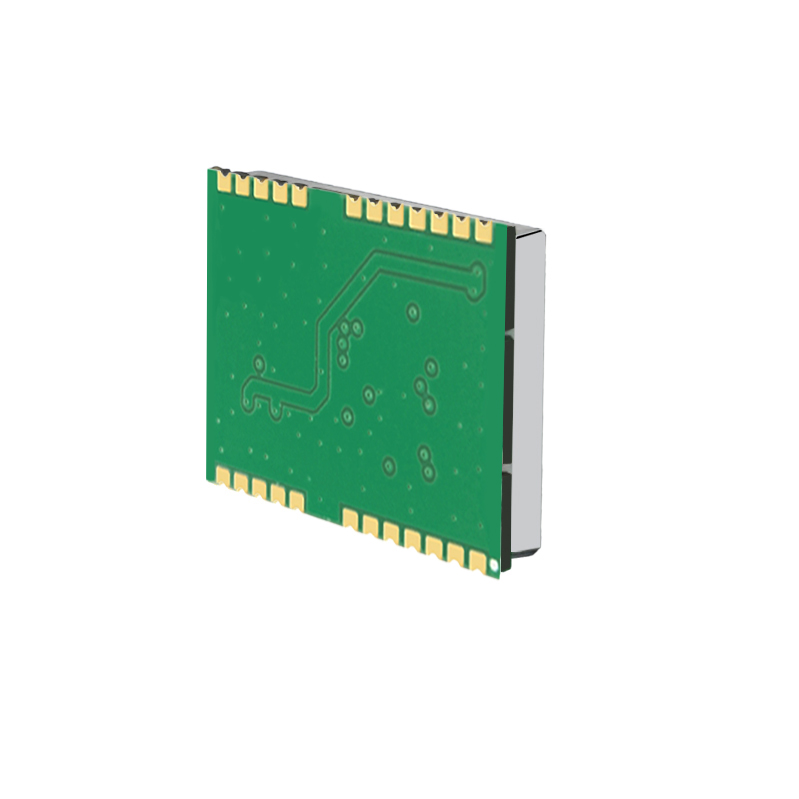

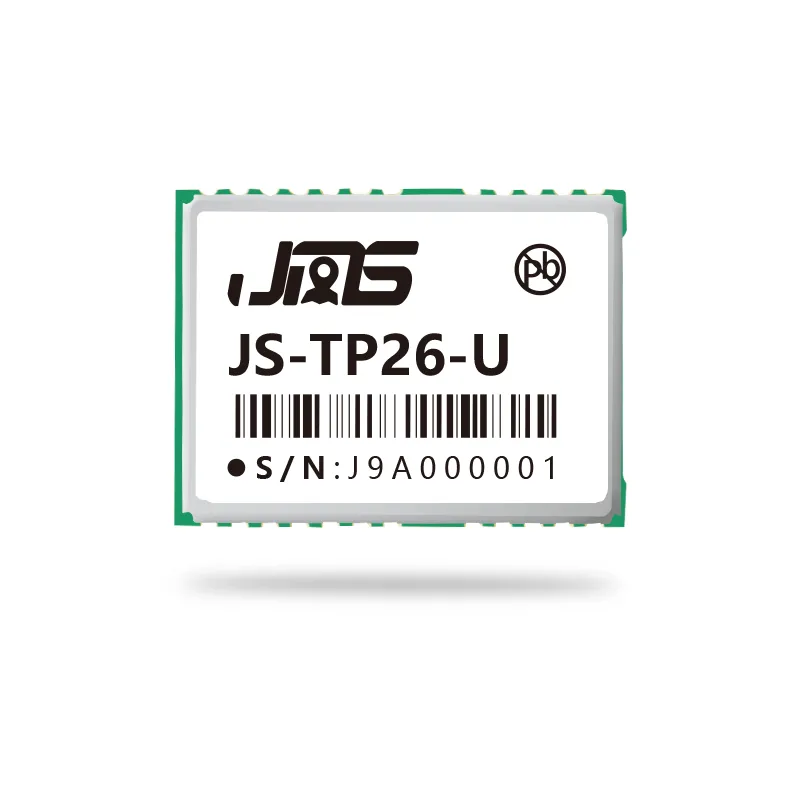

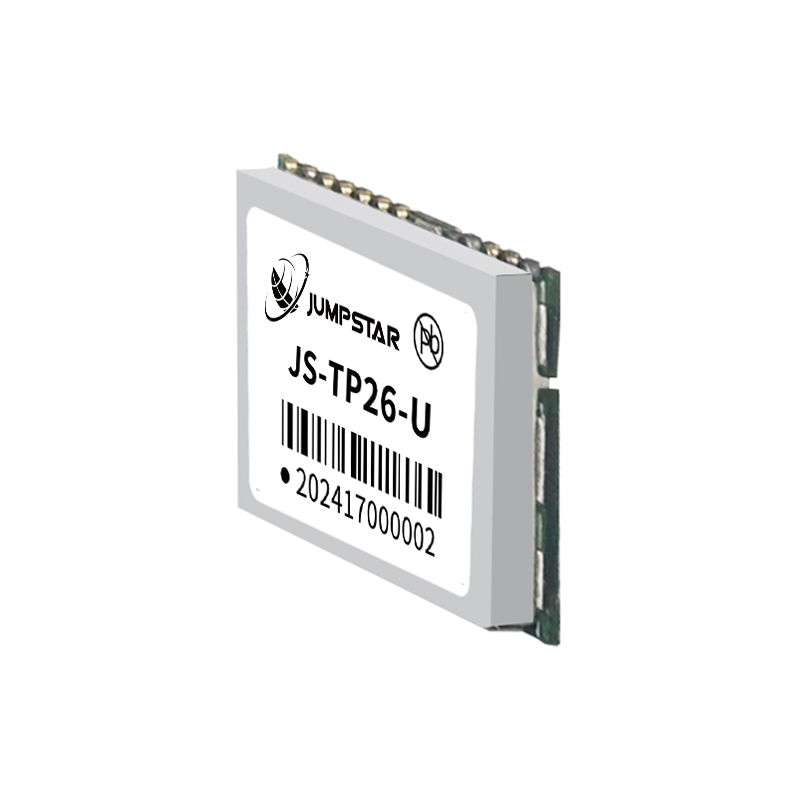

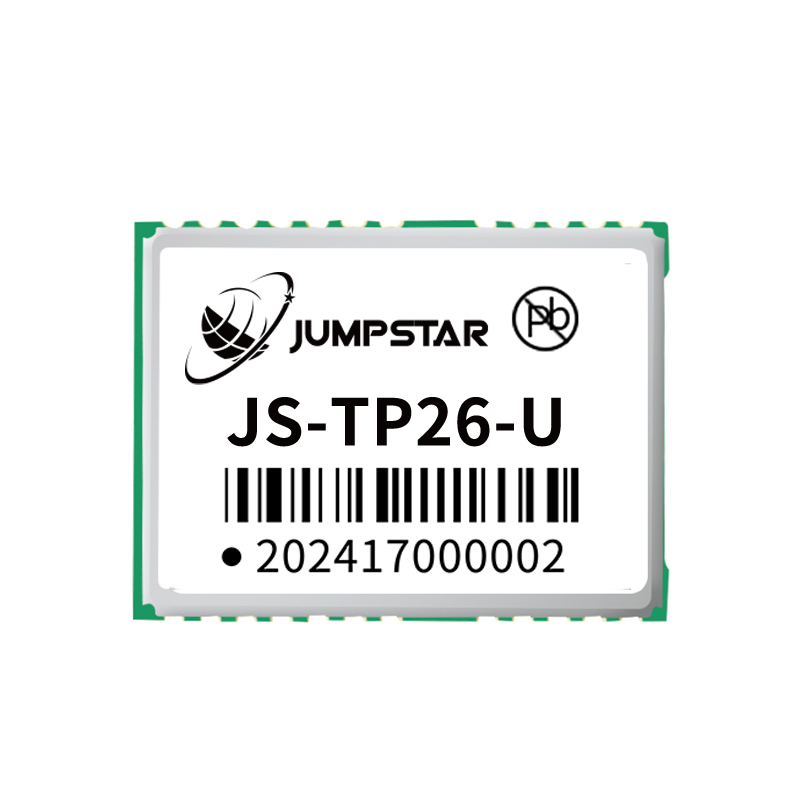

The TP26-U adopts GNSS/INS integrated navigation technology to overcome signal loss issues and enhance positioning continuity in complex environments such as buildings, tunnels, and viaducts. Supporting GPS, GLONASS, Galileo, BDS, SBAS, and QZSS (L1+L5), it integrates a high-performance six-axis MEMS sensor with a 3-axis gyroscope and accelerometer for precise motion tracking. With fine temperature compensation and factory calibration, the TP26-U ensures high accuracy, stability, and reliable performance across all applications.
Product Features
Supports adaptive installation
135 Number of channels (L1:75,L5:60)
Navigation update rate up to 10Hz
Indoor and outdoor multi-path detection and compensation
Low power consumption .Single supply with wide voltage range
Supports GPS, GLONASS, Galileo, BDS, SBAS ,QZSS(L1 + L5 frequency point)
Support AGNSS fast auxiliary positioning
12multi-tone AIC in both L1 and L5 band for removing unwanted signals
RTCM ready(RTCM v2.3 and v3.3)
Integrated TCXO,SAW,RTC
Supports variant interfaces including UART, USB

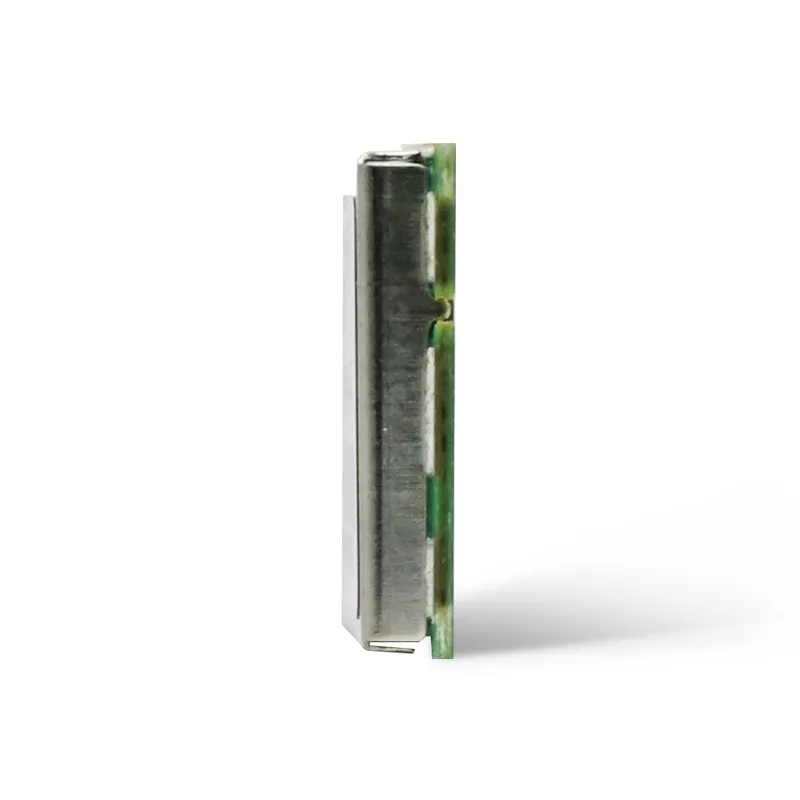

Compact size(16.0mm x 12.2mm x 2.4mm±0.3mm ) suitable for space-sensitive application
Support standard NMEA 0183 V4.1 and backward compliance
Performance
| Parameter | Specification |
| Receiver type | GPS L1CA L5 BDS B1I B2a Galileo E1B E1C E5a GLONASS L1OF QZSS L1CA L1SAIF L5 SBAS WAAS EGNOS MSAS GAGAN |
| Sensitivity | Tracking & Navigation -165dBm |
| Acquisition -148dBm | |
| Time-To-First-Fix | Cold Start ≤24 s |
| Hot Start ≤1 s | |
| Position accuracy | Horizontal 3G+B 1.0m (L1+L5)；2.5m (L1) |
| Vertical 2.25m | |
| Velocity accuracy | 0.05m/s |
| PPS | ±10 ns |
| Horizontal Locating accuracy | GNSS inertial navigation < ( span="") 1.5m CEP @ -130 dBm |
| Without aid Sub-meter (3% CEP) | |
| Operational limits | Dynamics 4g |
| Altitude 10000m | |
| Velocity 100m/s | |
| Baud Rate | 115200 - 921600 bps (Default 115200bps) |
| Maximum fixed update rate | PVT update rate 10 Hz |
| Raw output rate 1 Hz |

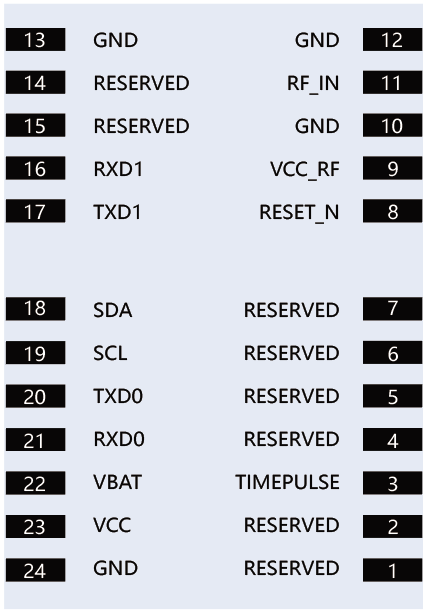

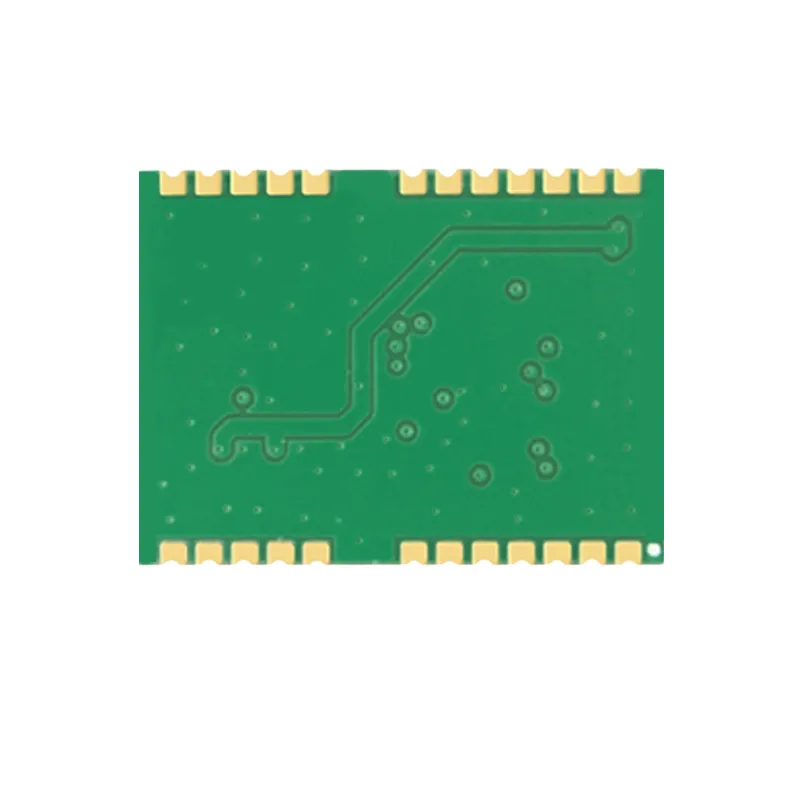

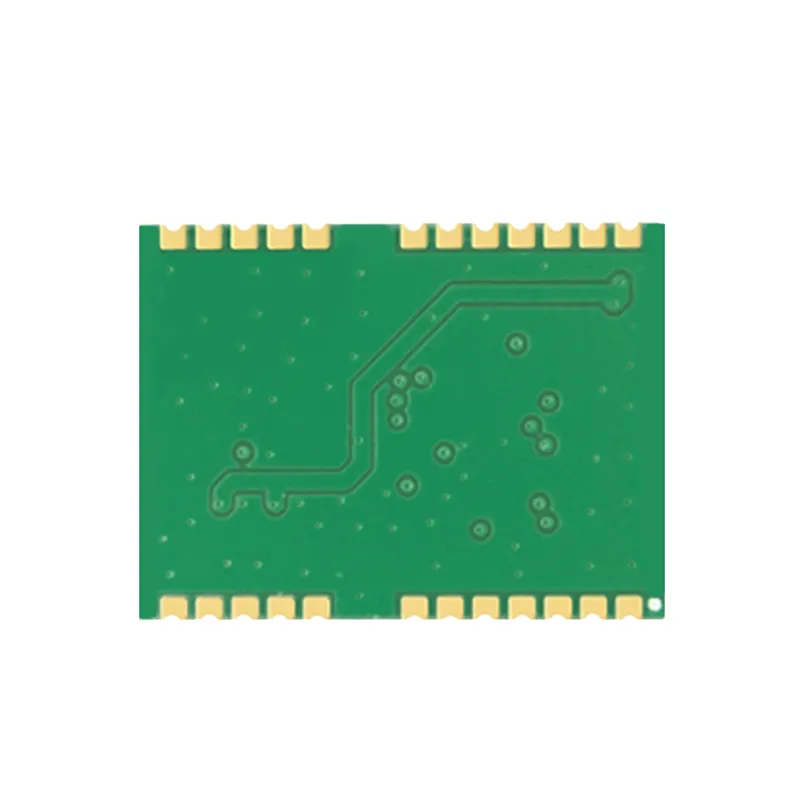

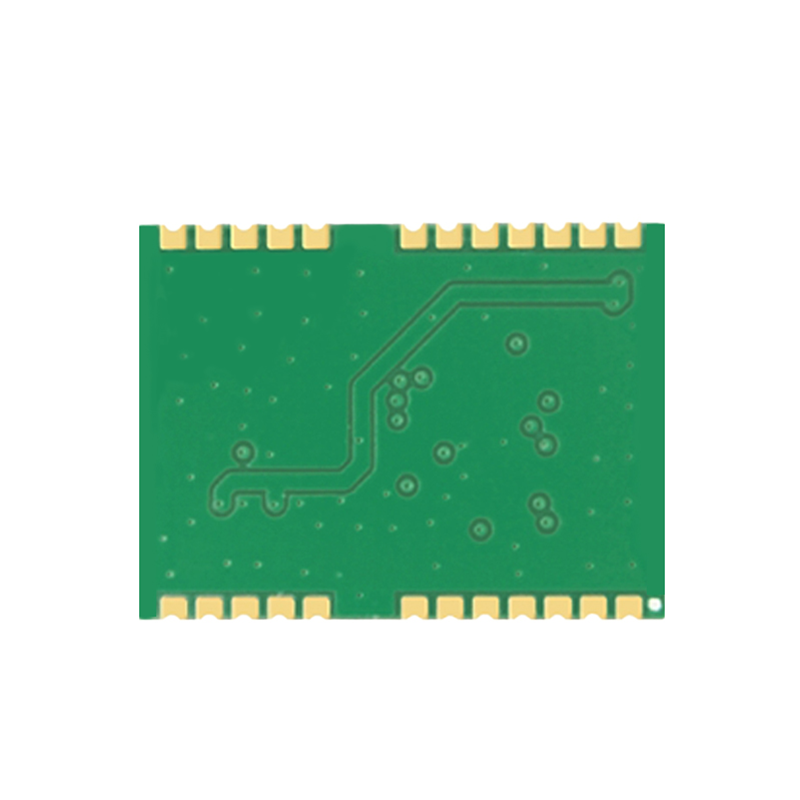

Pin Parameters
| PIN | Name | I/O | Description |
| 1 | RESEVED | - | RESERVED |
| 2 | ESOURCE_D | - | RESERVED |
| 3 | TIMEPULSE | O | 1PPS Time pulse（keep open if not used） |
| 4 | EXTINT | I | External interrupt pin（keep open if not used） |
| 6 | USB_DP | I/O | USB data（keep open if not used） |
| 7 | VDD_USB | I | USB supply（keep open if not used） |
| 8 | RESET_N | I | Module reset signal input（Active low，keep open if not used） |
| 9 | VCC_RF | O | Voltage for external LNA（keep open if not used） |
| 10,12,13,24 | GND | G | Ground |
| 11 | RF_IN | I | GNSS signal Input |
| 14 | GEOFENCE_STAT | - | RESERVED |
| 15 | RTK_STAT | - | RTK_STAT |
| 16 | RXD2 | I | UART2-RXD |
| 17 | TXD2 | O | UART2-TXD |
| 18 | TXD1 | O | UART1-TXD |
| 19 | RXD1 | I | UART1-RXD |
| 20 | TXD0 | O | UART0-TXD（Data transfer and firmware upgrade，LVTTL） |
| 21 | RXD0 | I | UART0-RXD（Data transfer and firmware upgrade，LVTTL） |
| 22 | VBAT | P | Backup voltage supply |
| 23 | VCC | P | Main supply |
Product Application
Maritime navigation
Automotive application
Intelligent logistics scheduling
Traffic monitoring
Fleet Management
Intelligent driving
Vehicle control
On-board navigatio
Protocols
| Protocol | Type |
| NMEA 0183 V4.1 | Out put/In put |
