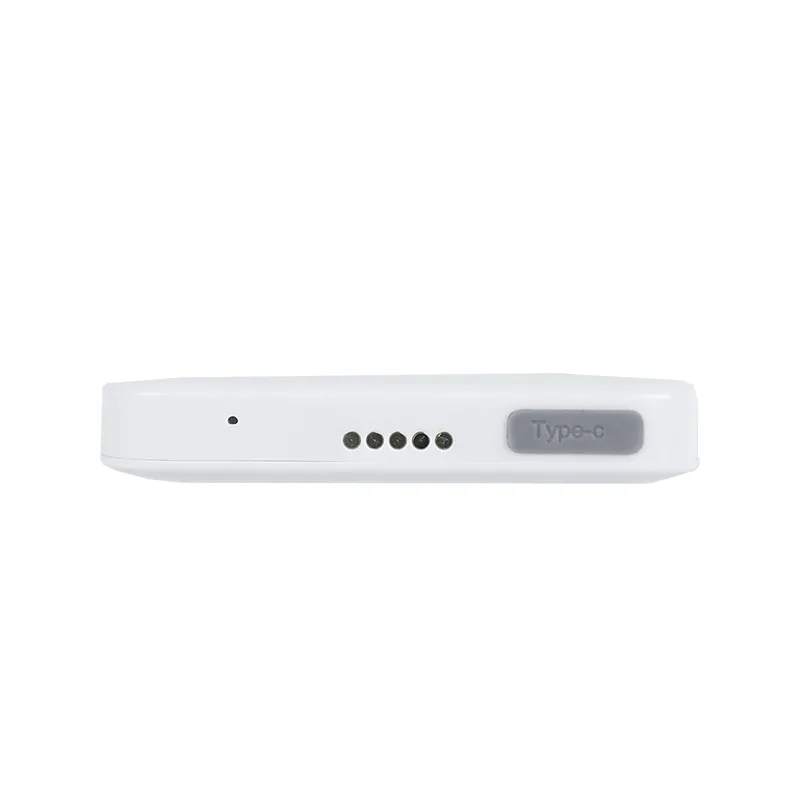

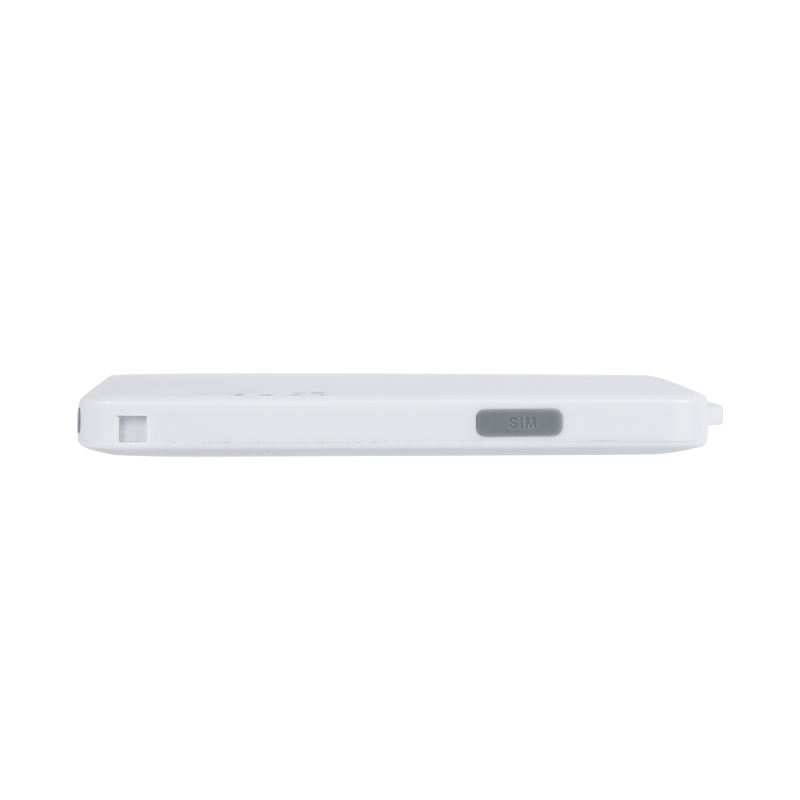

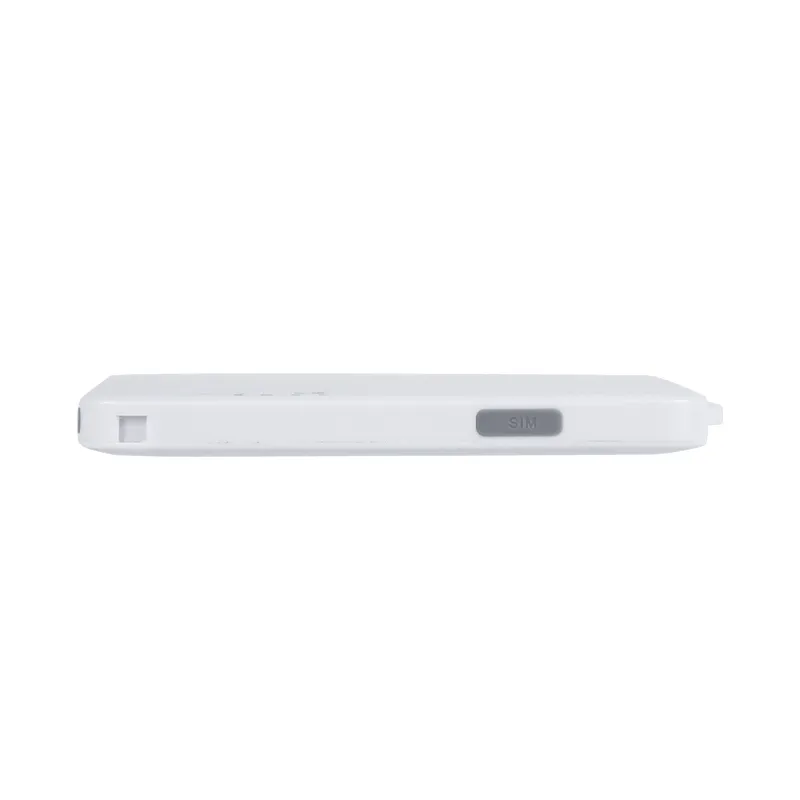

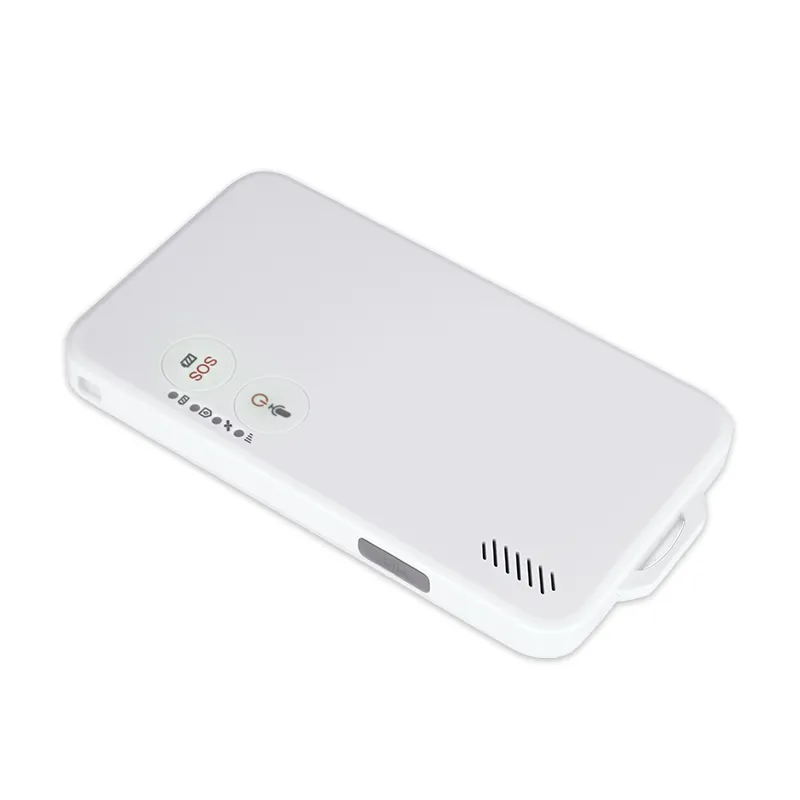

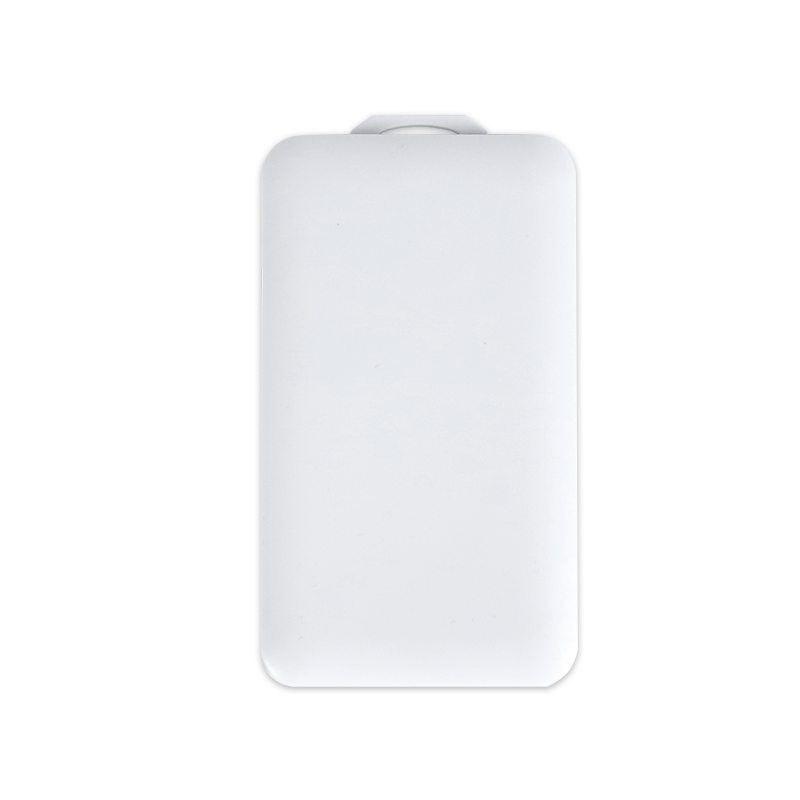

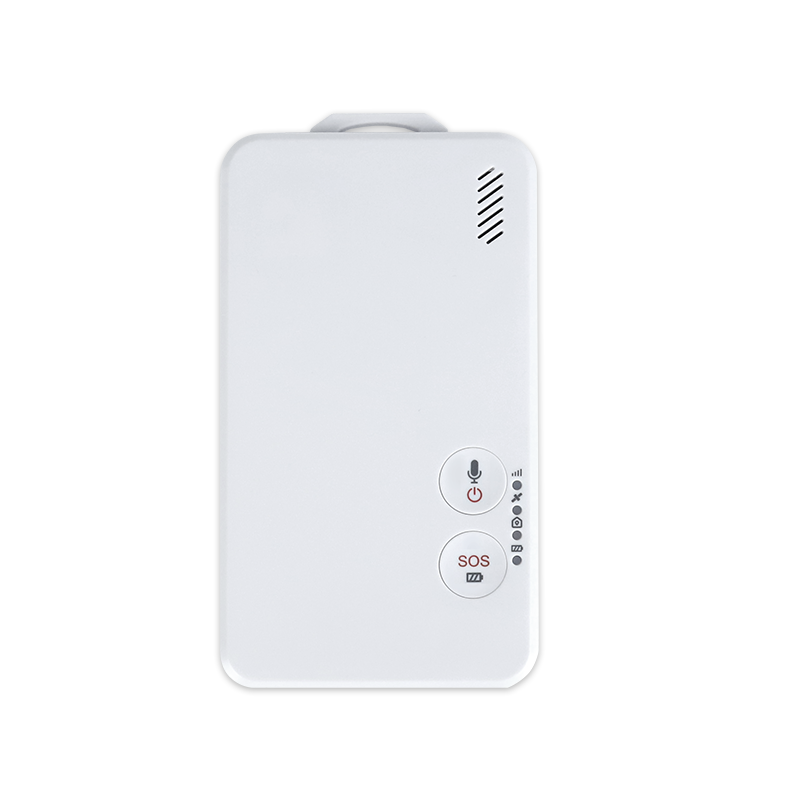

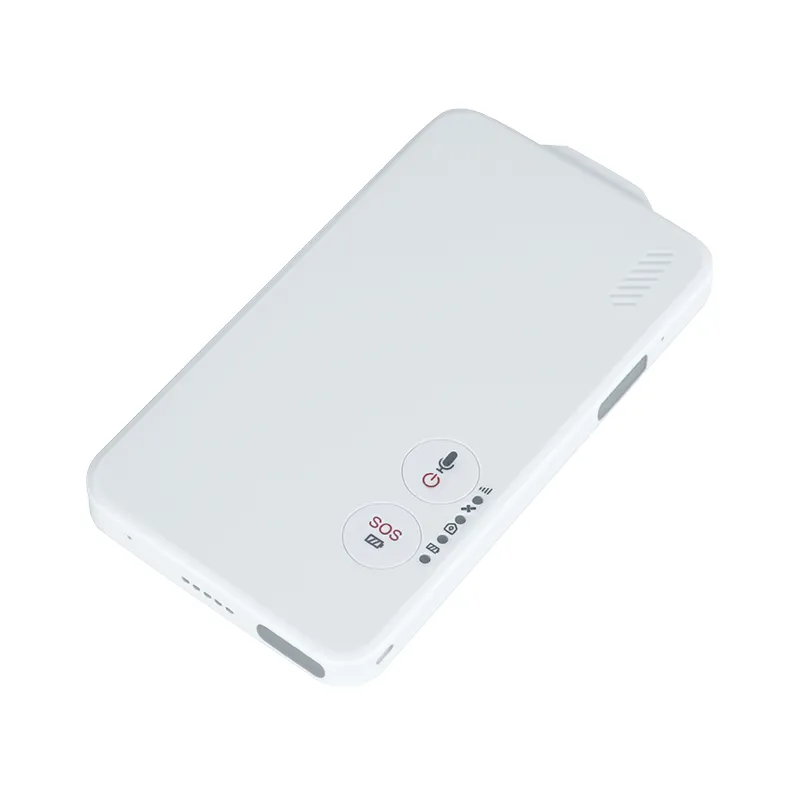

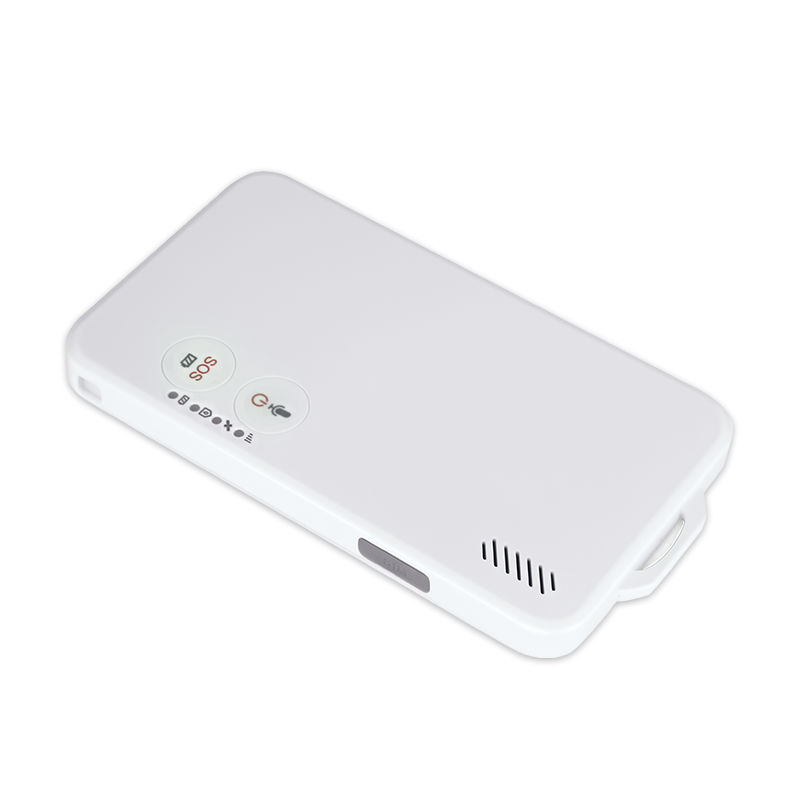

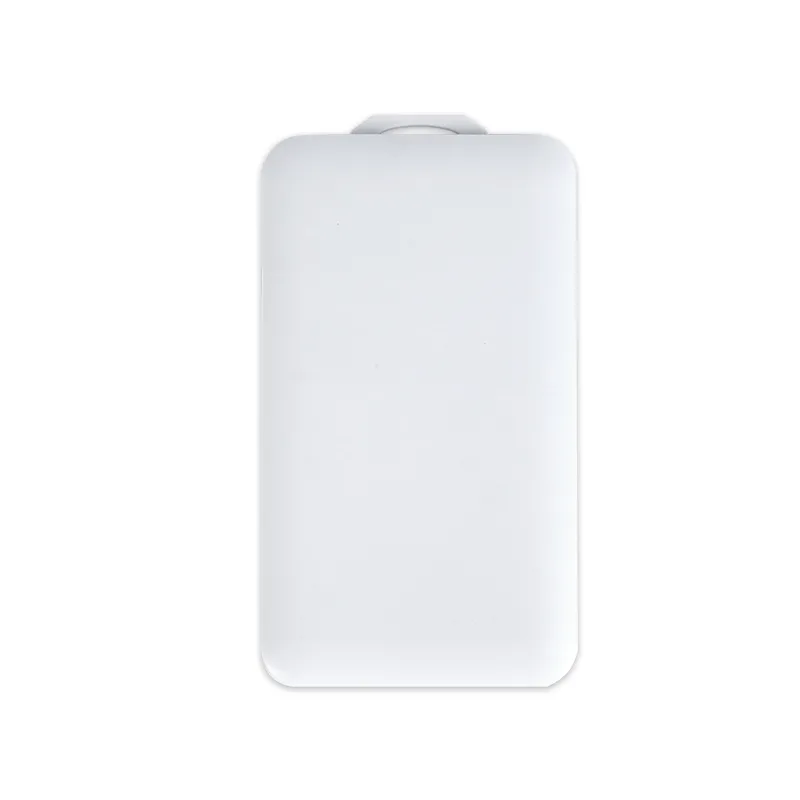

The P7 is a dual-frequency BDS/GPS RTK smart ID card integrating UWB and Bluetooth for reliable indoor positioning without satellite signals. It supports JT/T 808-2013 protocol and 4G data transmission. With vibration-based sleep, SOS alerts, TTS voice broadcast, and status notifications, it suits smart sanitation, campuses, construction sites, elderly care, and scenic management.
Product Features
4G Cat.1
Single BDS、GPS /Bluetooth/UWB
SOS One-Key Alert
Sleep Mode
TTS Voice Broadcast
Ultrasonic Craftsmanship
Contact Charging
Product Specifications
| Category | Item | Description |
| Device Features | 4G Bands | LTE FDD B1/3/5/8 LTE TDD B34/38/39/40/41 |
| Communication Method | TCP, UDP | |
| Bluetooth Features | Transmission Distance ≤30 meters | |
| Positioning Accuracy ≤5 meters | ||
| Electrical Characteristics | UWB Features | Positioning Accuracy ≤50 centimeters |
| Built-in Battery | 2500mAh, Charging Time ≤2.5 hours | |
| Charging Interface | Contact type, Type-C | |
| Charger | 5V2A (charger is not supplied) | |
| Operating Voltage | 3.4V ～ 4.3V | |
| Operating Current | Operating Mode ≤200 mA; Standby ≤3 mA | |
| Mechanical Characteristics | Operating Temperature | -20°C ～ +75°C |
| Storage Temperature | -40°C ～ +75°C | |
| Operating Humidity | 10% ～ 85%RH, non-condensing | |
| IP Rating | IP66 | |
| Dimensions | 127×67×12 mm | |
| Device Weight | 116g | |
| Material | PC+ABS | |
| Wearing Method | Lanyard Type | |
| GNSS Features | Supported Constellations & bands | L1: BDS B1I B1C |
| L5: B2A B2B B2I | ||
| GPS L1+L5 dual-frequency bands(custom) | ||
| Single Point Accuracy | Horizontal ≤1.5 m CEP | |
| Vertical ≤2.5 m CEP | ||
| RTK Accuracy | Horizontal ≤1.0 cm±1 ppm CEP | |
| Vertical ≤1.5 cm±1 ppm 0.1 | ||
| Velocity | 0.1 m/s CEP | |
| Time to First Fix | Cold Start: ≤50s | |
| Hot Start: ≤10s | ||
| Reacquisition ≤10s | ||
| Channels | 150 tracking channels | |
| Sensitivity | Tracking Sensitivity: -165dBm | |
| Acquisition Sensitivity: -159dBm | ||
| Update Rate | 1 ～ 20Hz (default 1Hz) | |
| Baud Rate | 115200 ～ 460800bps (default 115200bps) | |
| Data Format | NMEA 0183 | |
| Differential Data | RTCM3.3/3.2/3.1/3.0 | |
| Others | Explosion-Proof Certification | Can assist customers with explosion-proof certification |
