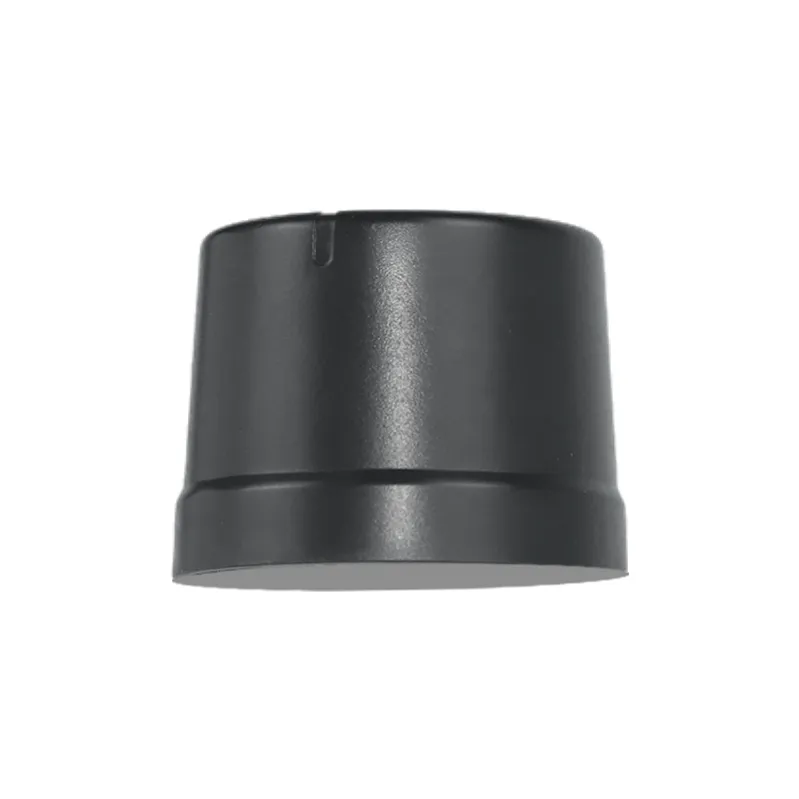

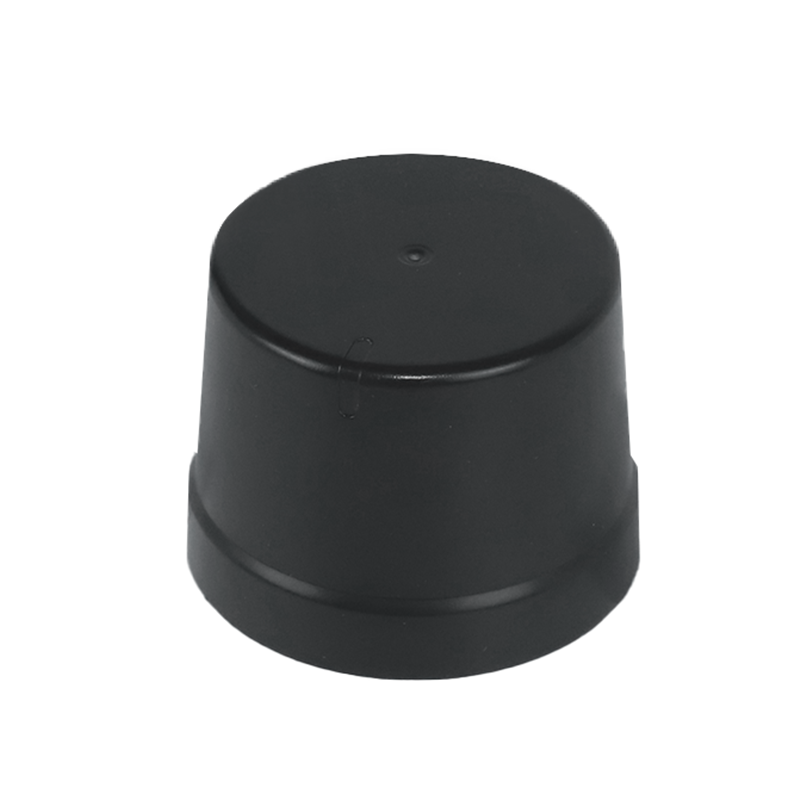

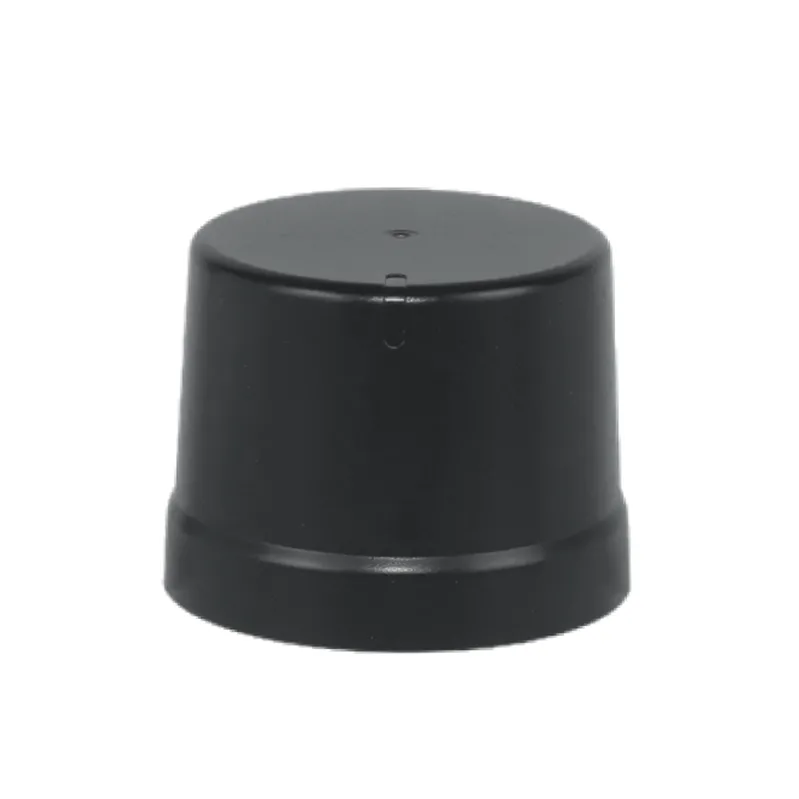

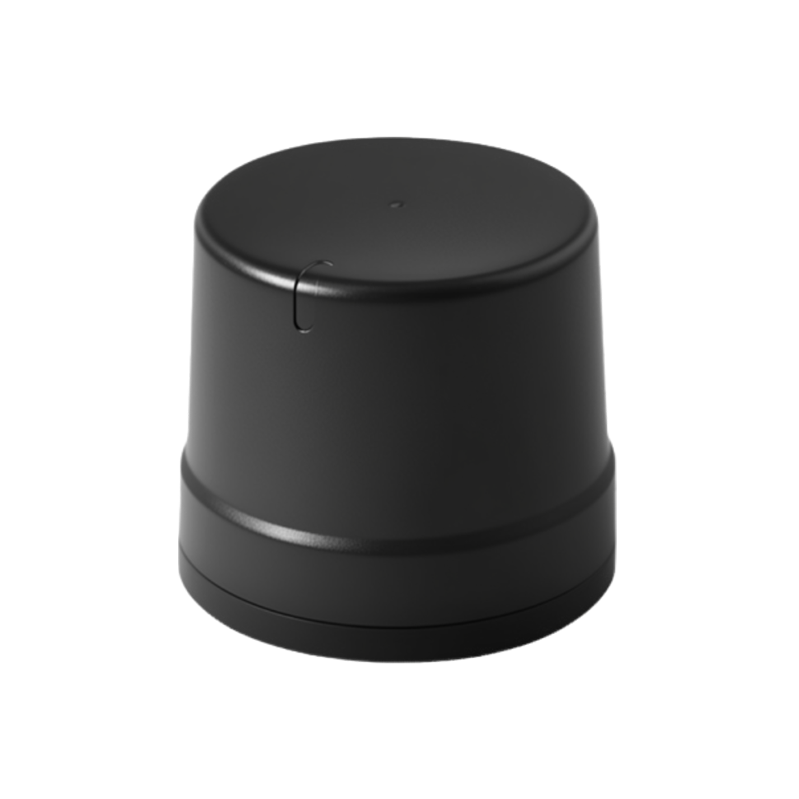

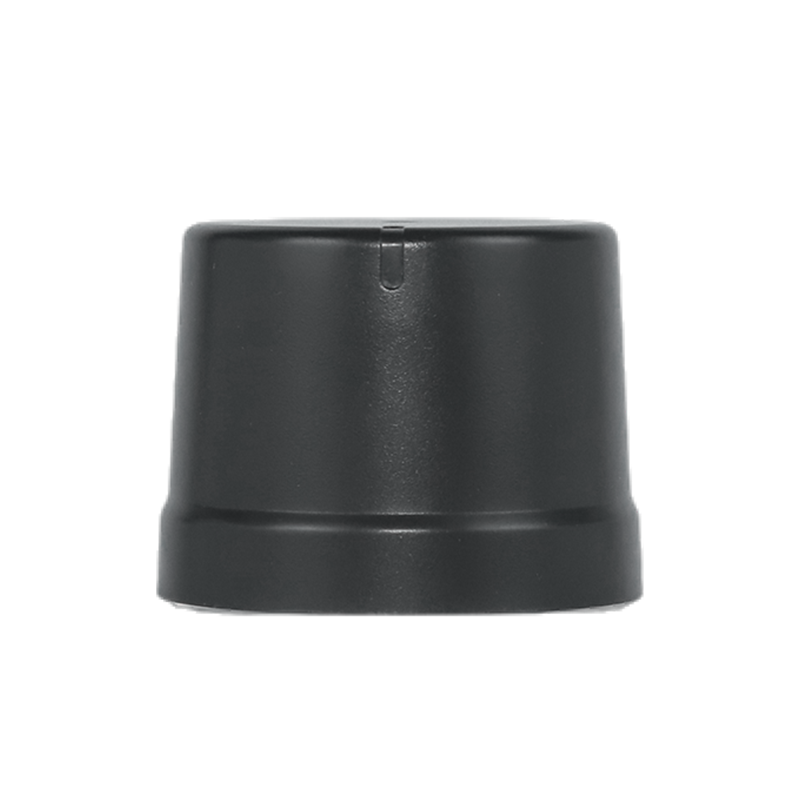

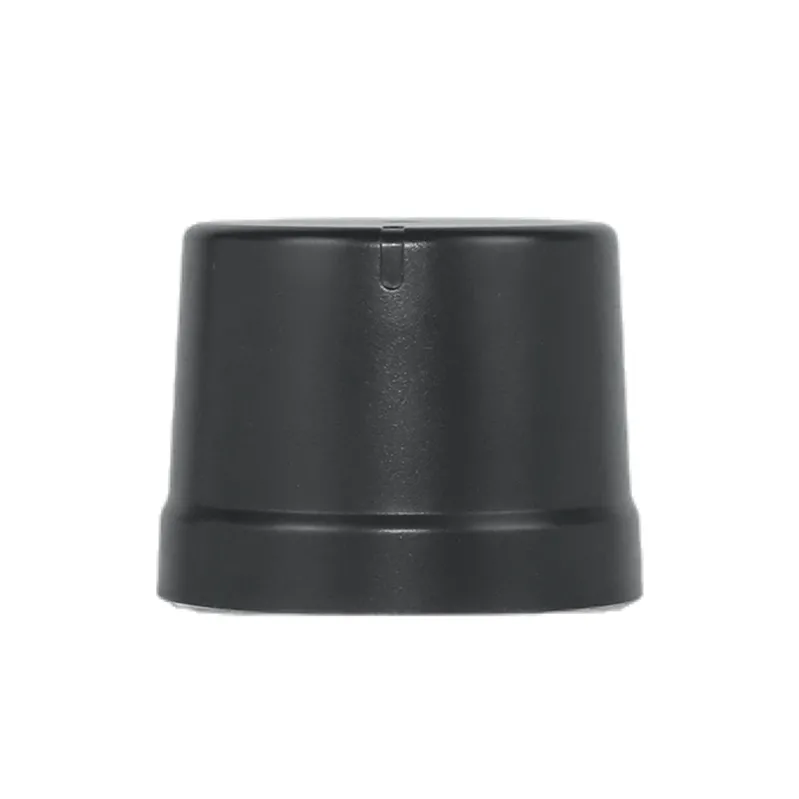

The MK43 is a concurrent multi-GNSS smart antenna supporting GPS, GLONASS, BDS, and QZSS reception. Its multi-band RF architecture processes all visible satellites for RTK positioning with correction data. The high-performance MK43 engine delivers high sensitivity, fast acquisition, and robust interference suppression for reliable navigation in challenging environments.
Product Features
Build on high performance GNSS M6D
96 search channels and 60 trace channels
Cold start acquisition sensitivity of -147dBm and -163dBm tracking sensitivity
Max 10 Hz navigation update rate
Supports GPS,BDS,GLONASS and QZSS
Support the Beidou-3 satellite
MSM7 input is supported
Integrated TCXO, LNA, SAW, RTC
Configurable peripheral IO pins
Integrated high gain antenna
Low power consumption and it has intelligent power control mechanism
Single supply with wide voltage range
Compact size (Bottom diameter47.2mm,Head diameter42.3mm,Height 36.8mm ) ±0.3mm
Performance
| Parameter | Specification | |
| Receiver type | GPS/QZSS L1C/A L2C GLONASS G2 G1 BDS B1l B2l ( Including the Beidou-3 satellite ) | |
| Sensitivity | Tracking | -163 dBm |
| Reacquisition | -147 dBm | |
| Time-To-First-Fix | Cold Start | ≤ 35 s |
| Warm Start | 20 s | |
| Hot Start | 1 s | |
| Position accuracy | Autonomous | 2.0 m CEP |
| DGNSS | 0.5 m CEP | |
| RTK | 2 cm + 1ppm ( Horizontal ) | |
| Accuracy of time pulse signal | RMS | 25 ns |
| Velocity accuracy | GNSS | 0.1 m/s |
| D-GNSS | 0.05 m/s | |
| Operational limits | Dynamics | ≤ 4 g |
| Altitude | 18000 m | |
| Velocity | 515 m/s | |
| Baud Rate | 115200 - 230400 bps（ Default 115200 bps ） | |
| Navigation update rate | Default 1 Hz ( If you need a greater navigation update rate, please contact us ) | |

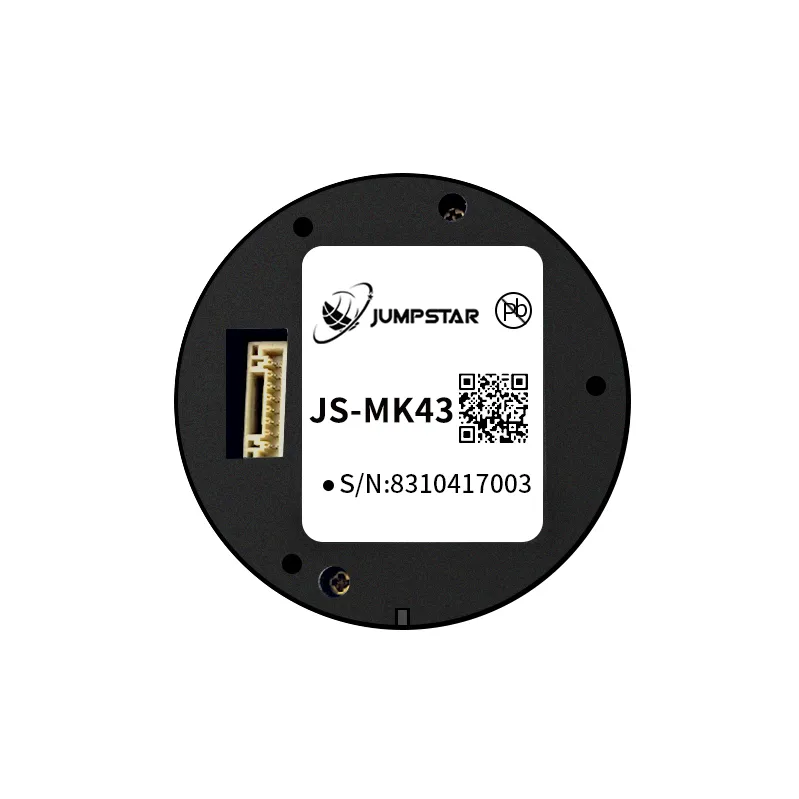

Pin Parameters
| No. | Name | I/O | Description |
| 1 | GND | G | Ground |
| 2 | TX2 | O | UART2 output RTCM3 data |
| 3 | RX2 | I | Serial Port(UART 2: for 1PPS output ＜Default>/RTCM3 input) |
| 4 | SDA | I/O | I2C Clock（keep open if not used） |
| 5 | SCL | I/O | I2C Clock（keep open if not used） |
| 6 | TX1 | O | UART Output |
| 7 | RX1 | I | UART Input |
| 8 | VCC | P | Main supply |
Product Application
Automatic pilot
Aided driving
Wisdom path field
Intelligent safety testing
Direct detection
Vehicle management
UAV
Agricultural automation
Intelligent city
Intelligent robot
Protocols
| Protocol | Type |
| NMEA 0183 V4.0/V4.1 | Input/output |
| RTCM 3.X | Input/output |
| JMS | Input/output, JMS proprietary |
