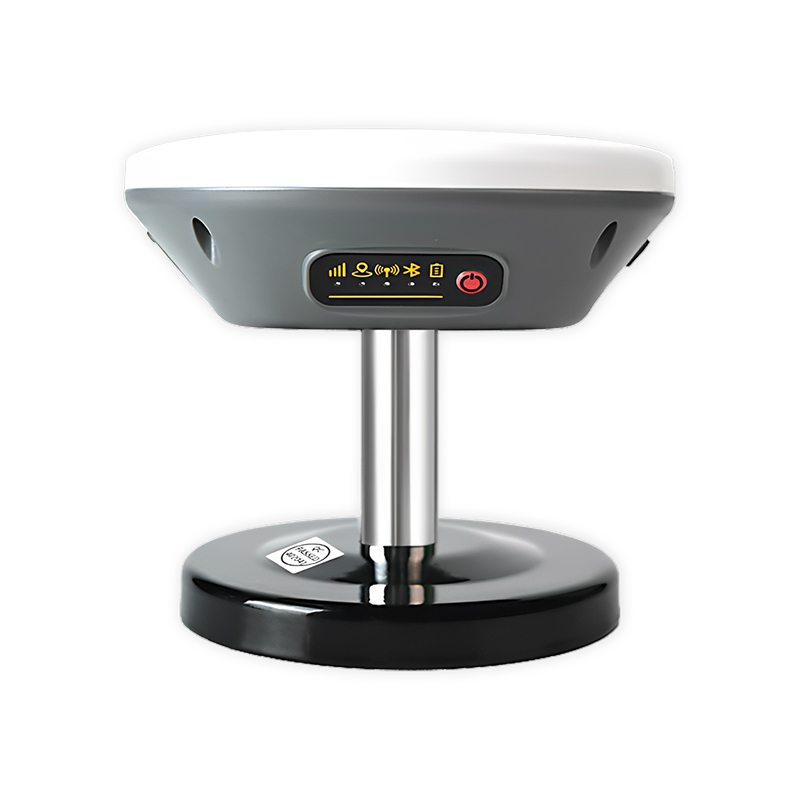

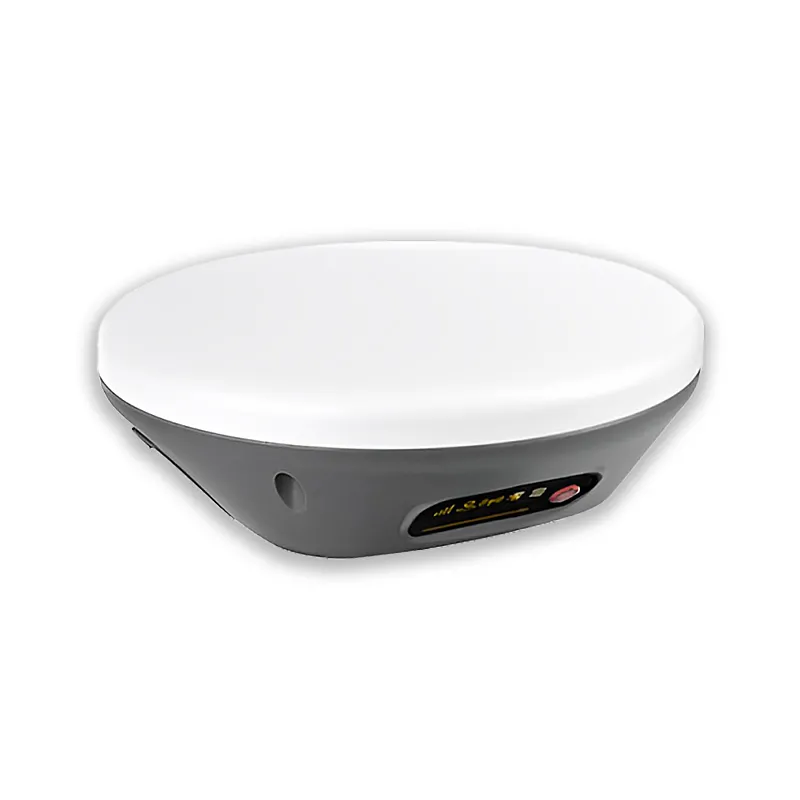

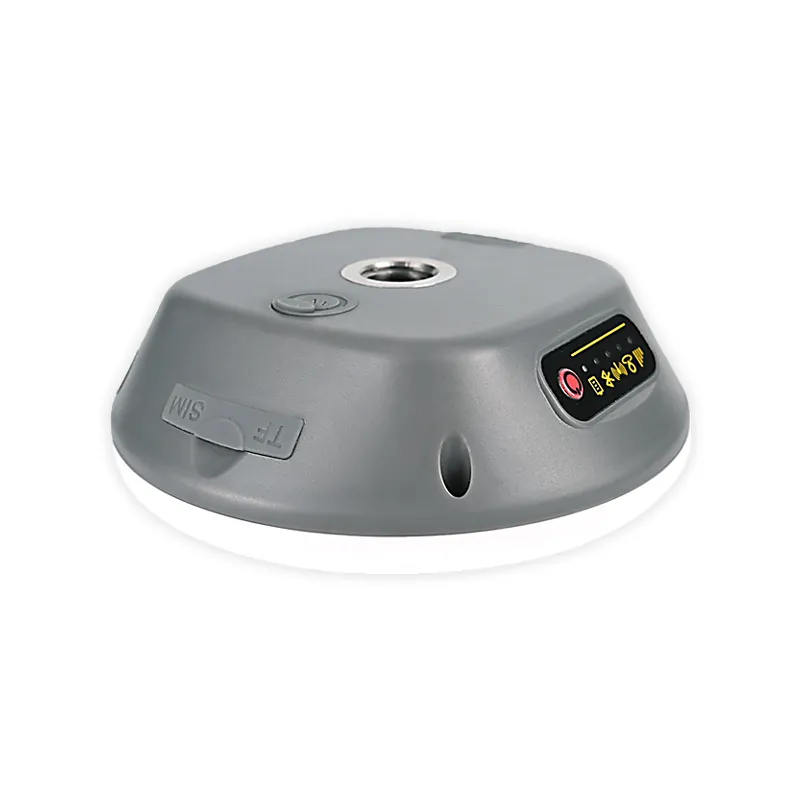

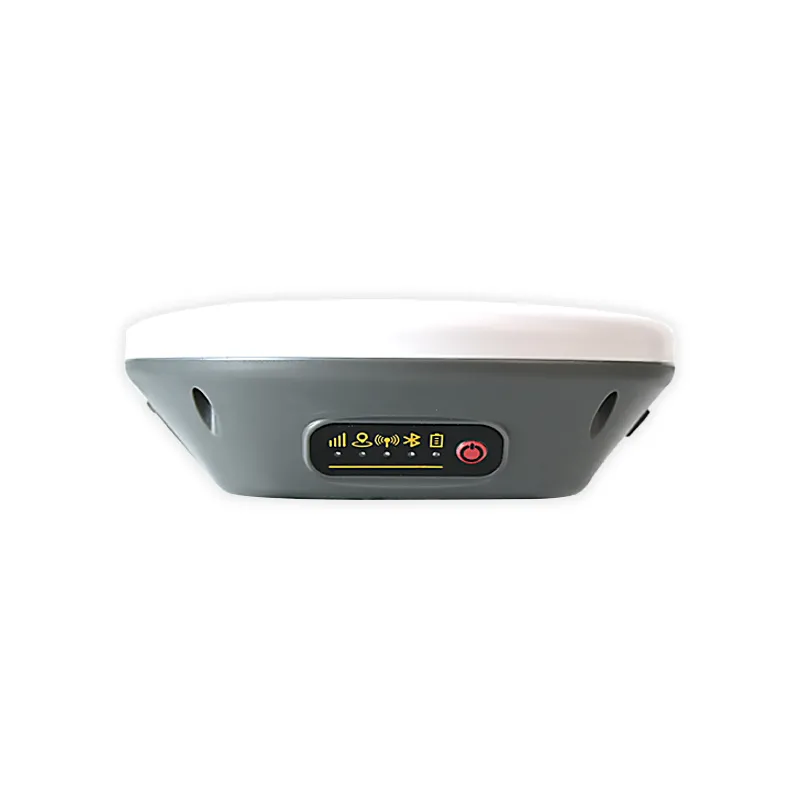

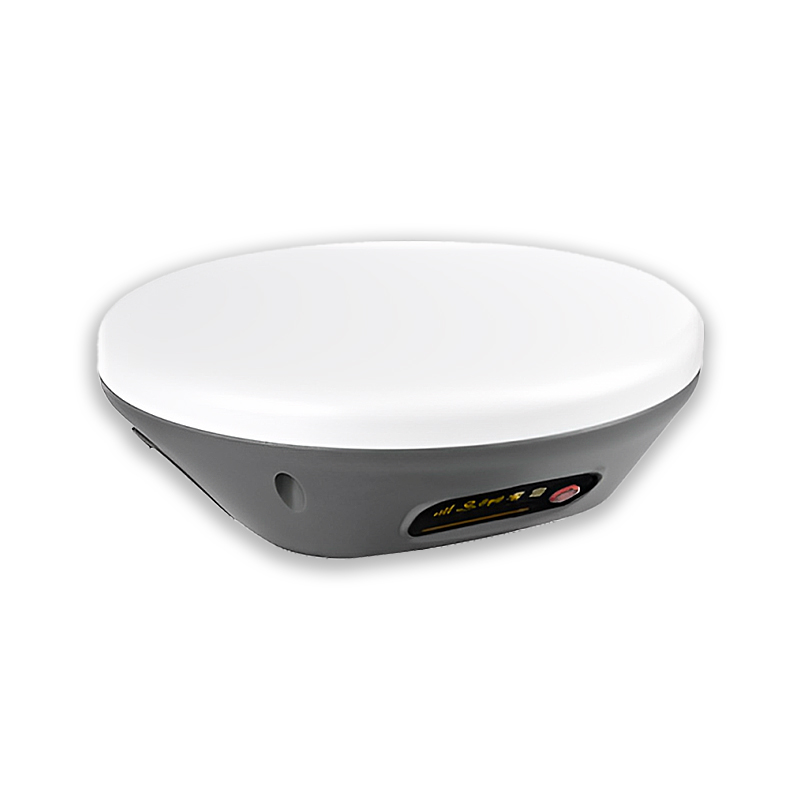

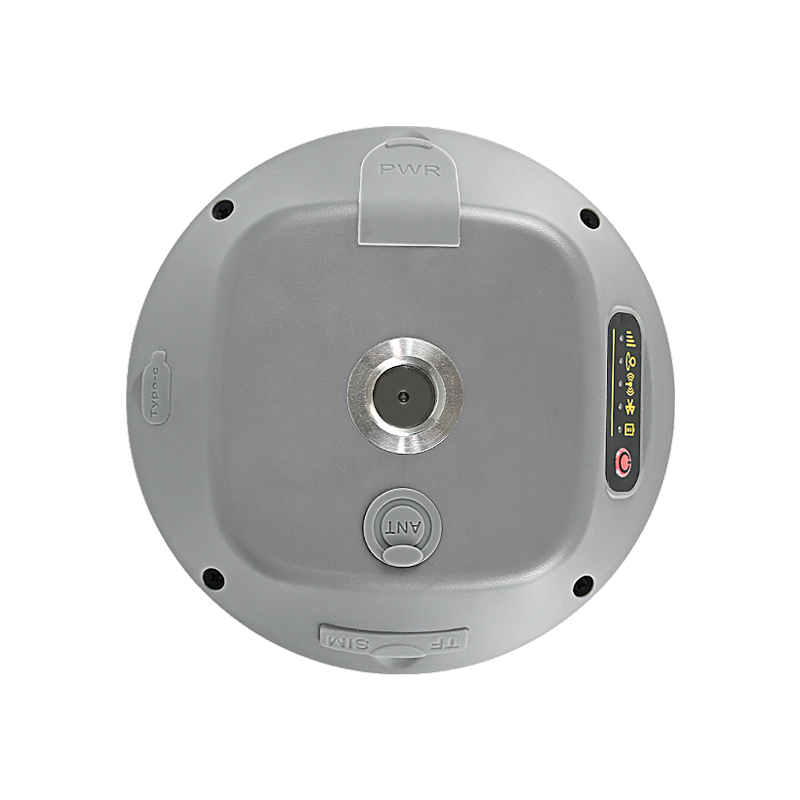

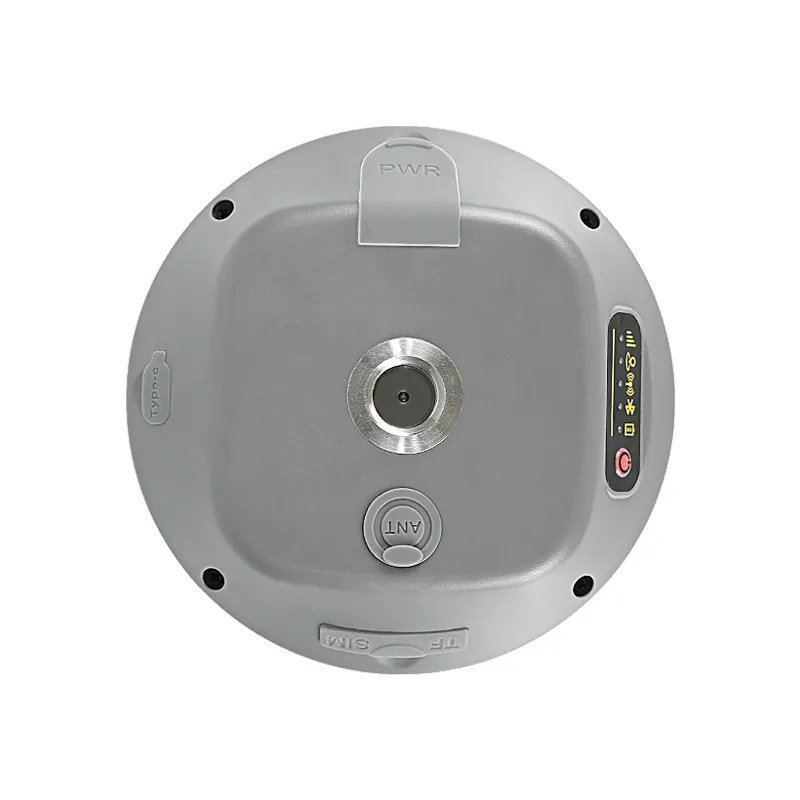

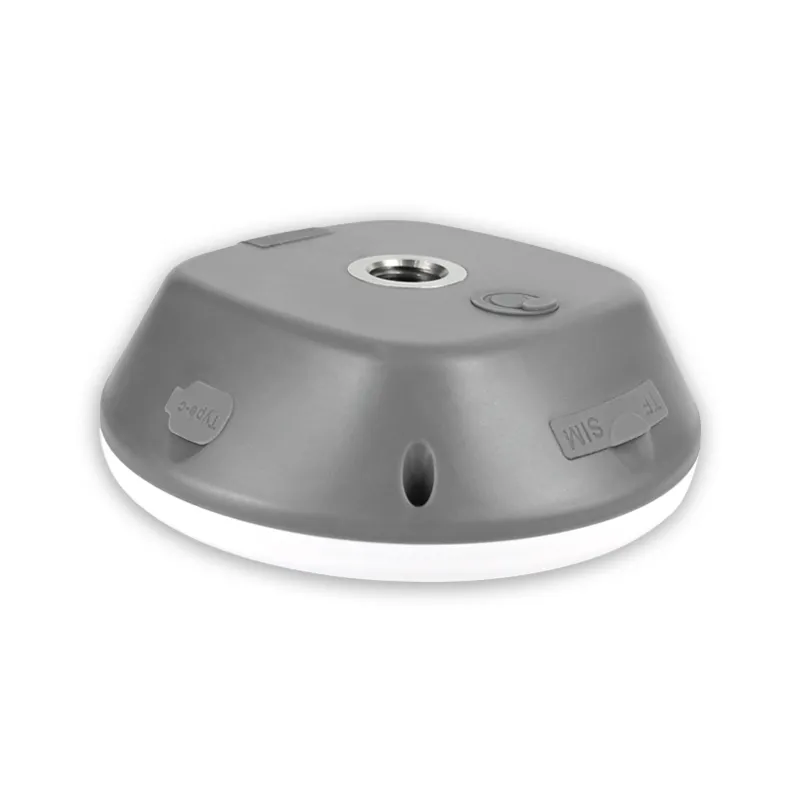

X11 is a high-precision RTK smart antenna integrating positioning, communication, and data storage in a compact design. It supports RTK positioning, Bluetooth, radio, 4G, Wi-Fi, and TF card storage, delivering reliable centimeter-level accuracy. Designed for unmanned driving, UAVs, surveying, agriculture machinery, and marine applications, it ensures stable connectivity and flexible deployment across diverse operating environments.
Features
4G full network operation
Full frequency RTK positioning
Bluetooth communication wifi communication
Radio communication
communication with handheld controller (reserved function)
Remote upgrade
built-in TF card
Smoothly switch between mobile station and base station
Product Specifications
| Category | Property | Description |
| Host Features | 4G frequency band | LTE-FDD B1/3/5/8 |
| LTE-TDD B34/38/39/40/41 | ||
| Supported operators | full | |
| Communication | TCP, UDP | |
| Bluetooth transmission distance | 30m | |
| Bluetooth | Support BLE 5.2 (optional) | |
| Radio transmission distance | Pending | |
| Radio frequency band | 410-470MHz | |
| Protocols support | SOUTH、TRIMATLK、TRANSEOT、TRIMMARK3 | |
| Wifi | 2.4 (optional) | |
| Wifi transmission distance | 30m | |
| Electrical Characteristics | Operating voltage | 9V-45V |
| Working current | ≤600mA DC12V | |
| Built-in backup power | 5200mA | |
| Voltage detection | support | |
| Working hours | Pending | |
| Environmental characteristics | Operating temperature | -20℃～65℃ |
| Storage temperature | -30℃～80℃ | |
| Operating humidity | 10%～85%RH, No water beads | |
| Mechanical properties | waterproof | IP66 |
| Host size | 12212243.09mm | |
| Host weight | 375g | |
| Material | APS+PC | |
| other | Explosion-proof certification | support explosion-proof certification based on the requirement |
| GNSS Features | Satellites & Frequencies | GPS, BDS, GLONASS, Galileo, QZSS, SBAS |
| RTK Positioning Accuracy | 2cm+1ppm | |
| Speed measurement accuracy | 0.05m/s | |
| Capture time | Cold Start≤10s | |
| Warm Start≤5s | ||
| Channels | Capture Channel 96 | |
| Tracking Channel 60 | ||
| Sensitivity | Tracking sensitivity-163dBm | |
| Capture sensitivity-147dBm | ||
| Update rate | 1-10HZ(default 1HZ) | |
| Baud rate | 115200-230400bps (default 115200bps) | |
| Data Format | NMEA 0183 | |
| Differential Data | RTCM3.3/3.2/3.1/3.0 |
