The P9 is a compact, high-precision GPS tracker with integrated GSM/GPRS for real-time location monitoring. Ideal for safeguarding children and the elderly, it also supports remote tracking of assets and pets. Delivering reliable positioning data in dynamic environments, it offers an effective solution for personal and property security.
Product Features
GSM /GPRS modem
Mini Size
One button SOS
Low Power Consumption
Alarm & remote listening
Call support (up to 3 contacts)
SMS-based configuration
Real-time location queries
Performance
| Category | Parameter | Description |
| Frequency Bands | 4G | B1/ 3/ 5/ 7/ 8/ 20/ 28 |
| Electrical | Built-in Battery | 600mAh |
| Charging Port | Micro | |
| Charging Voltage | DC 5V、330mah/hours | |
| Operating Voltage | 3.4V-4.3V | |
| Operating Current | -- | |
| Standby Time | -- | |
| Mechanical | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~60℃ | |
| Operating Humidity | 10%~85%RH, (non-condensing) | |
| IP Rating | IP65 waterproof | |
| Dimension | 43mm×43mm×12mm | |
| Weight | 25g | |
| Material | PC+ABS | |
| Others | Explosion-Proof | Can cooperate with customers for explosion-proof certification |
| GNSS | Supported GNSS and Frequency | GPS/QZSS L1C/A |
| SBAS EGNOS, GAGAN, MSAS and WAAS | ||
| GLONASS L1OF | ||
| Positioning Accuracy | 5m(single-point) | |
| Velocity Accuracy | 500 m/s | |
| Time to First Fix (TTFF) | Cold Start: ≤60s | |
| Hot Start: ≤30s | ||
| Re acquisition: ≤30s | ||
| Channels | 72 capture channels | |
| 32 tracking channels | ||
| Sensitivity | Tracking: -166dBm | |
| Acquisition: -160dBm | ||
| Update Rate | 1HZ | |
| Baud rate | 9,600 -- 460800 bps （Default 38400 bps） | |
| Data Format | NMEA 0183 |

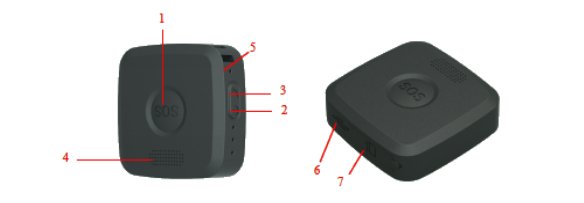

External Interfaces
| No. | Button Function | Action | Status |
| 1 | Incoming call Outgoing call | Short Press: Answer | ✔ |
| Outgoing call | Long Press (3s): Dial | ✔ | |
| 2 | Power On | Long Press (3s) | ✔ |
| Power Off | Long Press (3s) | ✔ | |
| 3 | Hang Up | Short Press: End Call | ✔ |
| 4 | Speaker | Voice broadcast | ✔ |
| 6 | Micro USB | Charging | ✔ |
| 7 | Sim Card Slot | 4G Connectivity | ✔ |
