A07 4G Vehicle Positioning Terminal is a next-generation device designed for precise tracking, monitoring, and fleet management. Featuring an advanced GNSS platform, it supports real-time positioning, route analysis, alarms, anti-theft protection, and remote control of fuel and power. With a rugged waterproof design, its ideal for trucks, logistics fleets, taxis, and long-distance buses, meeting diverse industry needs for reliable mobile asset management.
Performance
| Name | Parameters |
| Operating Voltage | DC 9V ～ 98 V |
| Operating Current (Average Current) | < 60 mA (DC 12 V ) |
| Battery Operating Duration | 2 h |
| Backup Battery | 3.6 V / 350 mA |
| Operating Temperature | -20°C ～ +70°C |
| Operating Humidity | <95% |
| Battery | 350 mAh ( 3.7 V ) |
| Dimensions | 80 mm × 43 mm × 22 mm |

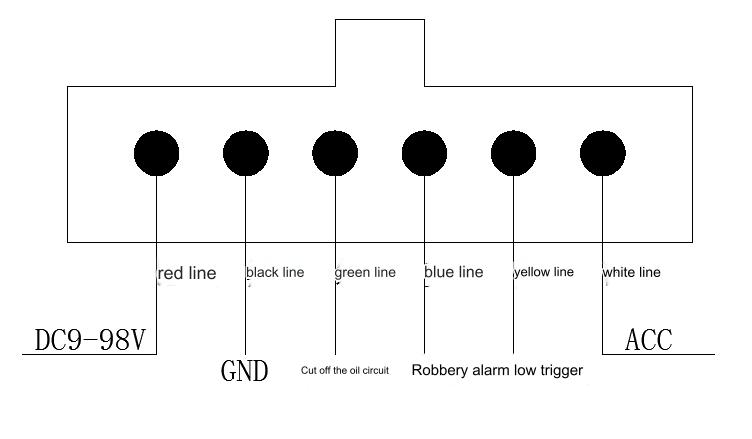

Terminal Interface Pin Definiti
| Serial number | Color | Interface definition | Remarks |
| 1 | Red | Power | DC 9~98 V |
| 2 | Black | GND | |
| 3 | Green | Cut-off Fuel Line | |
| 4 | Blue | Robbery Alarm | |
| 5 | Yellow | Low Trigger | |
| 6 | White | ACC |
