GPS vs RTK: Accuracy Differences & High-Precision GNSS Solutions

Introduction

Satellite positioning technologies deliver varying precision levels. Standard GPS serves general navigation, while professional applications require greater accuracy. Real-Time Kinematic (RTK) positioning achieves centimeter-level precision, exceeding conventional GPS accuracy by approximately 100 times. Understanding these distinctions informs technology selection for business applications.

Technology Fundamentals

System Architecture

GPS, operational since 1964, provides global three-dimensional positioning through satellite constellations. RTK enhances GNSS infrastructure through differential correction, combining standard signals with real-time data from fixed base stations to eliminate common errors.

GPS operates as a one-way ranging system. RTK employs two-station differential positioning, where a base station at known coordinates calculates signal errors and transmits corrections to mobile receivers.

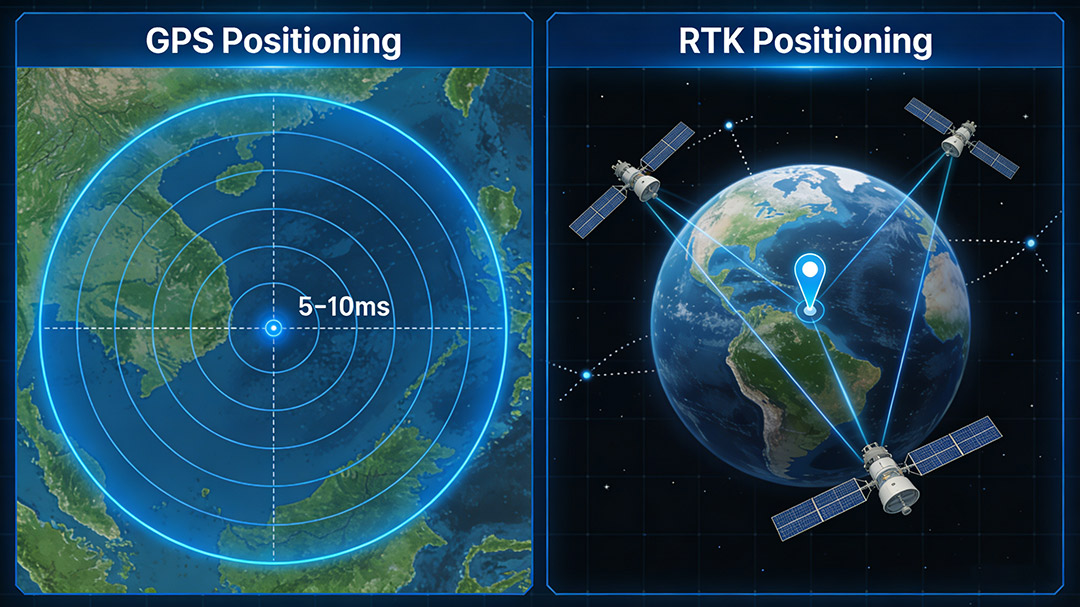

Accuracy Comparison

Standard GPS:

● Horizontal accuracy: 3-5 meters

● Vertical accuracy: 10+ meters

● Performance degrades in challenging environments

RTK GNSS:

● Horizontal accuracy: 1-2 centimeters

● Vertical accuracy: 2-3 centimeters

● Precision: 1 cm + 1 ppm × D (distance from base)

● Consistent results within 30-40 km range

Operational Principles

GPS Positioning

GPS receivers calculate position through trilateration, measuring distances to minimum four satellites using signal transmission time. Error sources include:

Atmospheric Interference: Ionospheric and tropospheric refraction alters signal propagation speed.

Satellite Ephemeris Errors: Orbital deviations create position uncertainties.

Clock Discrepancies: Receiver clocks lack atomic precision, creating timing offsets.

Multipath Effects: Signal reflections generate false range measurements.

RTK Correction

RTK addresses limitations through differential processing:

Base Station: A stationary receiver at surveyed coordinates monitors GNSS signals, calculating real-time error values from known position.

Data Transmission: Corrections broadcast via radio, cellular, or satellite links to rovers within operational range.

Carrier Phase Measurement: RTK utilizes carrier phase observations rather than code-based measurements. The 19 cm GPS L1 wavelength enables precise distance calculation.

Real-Time Processing: Rovers combine satellite signals with correction data, resolving integer ambiguities for centimeter-level positioning.

This methodology eliminates atmospheric delays, satellite clock errors, and orbital inaccuracies affecting both stations.

Error Management

GPS Limitations

Standard GPS encounters:

● Ionospheric delay varying with solar activity

● Tropospheric refraction affecting low-elevation satellites

● Poor satellite geometry amplifying errors

● Signal obstruction in urban or forested areas

● Receiver noise introducing measurement uncertainty

RTK Advantages

RTK systems provide:

Common-Mode Error Cancellation: Base and rover receivers within 30-40 km experience similar atmospheric and satellite errors, which differential processing eliminates.

Independent Positioning: Each point references the base station directly, preventing error accumulation across measurements.

Baseline Degradation: Accuracy decreases linearly with distance—approximately 1 mm per kilometer from base station.

Local Error Susceptibility: Rover locations remain vulnerable to multipath and obstruction effects that base corrections cannot address.

IMU Integration: Advanced receivers incorporate inertial measurement units maintaining positioning during signal interruptions.

Application Requirements

Standard GPS Applications

Meter-level accuracy suffices for consumer navigation, fleet tracking, asset management, recreational activities, and non-critical timing applications prioritizing cost-effectiveness.

RTK Applications

Centimeter precision enables:

Surveying: Professional land surveying requires 8-10 mm horizontal and 15 mm vertical accuracy for boundary determination and construction staking.

Precision Agriculture: Automated steering and variable rate application optimize inputs and reduce overlap through consistent positioning.

UAV Operations: Aerial surveying and autonomous flight demand precise georeferencing and terrain following.

Robotics: Autonomous systems require reliable positioning for navigation and task execution.

Construction: Machine control achieves design specifications without manual staking, reducing rework.

Transportation: Connected vehicles and autonomous driving depend on lane-level accuracy.

Jumpstar GNSS Solutions

Product Portfolio

Jumpstar, established 2010 in Shenzhen, delivers GNSS precision positioning with 15+ years expertise:

GNSS Modules:

● Standard Precision Modules

● High Precision RTK Modules

● IMU Dead Reckoning Modules

● Integrated antenna solutions

Positioning Boards:

● High Precision RTK Boards

● GNSS/INS Navigation Boards

● Anti-Jamming Boards

Multi-Functional RTK Receivers:

● UAV & Robotics Receivers

● Anti-Jamming Receivers

● Positioning & Heading Receivers

● RTK Base Stations

GNSS Antennas:

● Multi-band compatible designs

● Anti-interference configurations

● Survey-grade and mobile options

Technical Specifications

Jumpstar solutions deliver:

● 1 cm + 1 ppm accuracy

● GPS, GLONASS, Galileo, BeiDou, QZSS support

● IMU-assisted dead reckoning

● Advanced anti-jamming processing

● Compact OEM integration

Industry Applications

Jumpstar technology powers solutions across UAV systems including precision agriculture drones, surveying UAVs, and autonomous aerial vehicles; robotics including agricultural robots, inspection robots, and autonomous mobile platforms; precision agriculture with automated guidance, section control, and variable rate technology; smart transportation including fleet management, intelligent infrastructure, and connected vehicles; surveying and mapping with RTK rovers, GIS data collection, and geodetic networks; and personal protection with location tracking and emergency response systems.

Implementation Considerations

Cost Analysis

RTK systems require higher initial investment but deliver operational benefits through automated operations, reduced material waste, eliminated rework, increased productivity, and enhanced data quality.

Infrastructure Requirements

Deployment requires base station access via private stations, NRTK subscriptions, or SBAS services. Communication utilizes UHF/VHF radio, cellular networks, or satellite links. Base stations need continuous power and weather protection; rovers require adequate battery capacity.

Integration Support

Jumpstar provides SDK/API support, multiple interfaces (UART, USB, SPI, I2C), NMEA/RTCM protocol compatibility, technical documentation, and reference designs.

Technology Evolution

Emerging Developments

PPP-RTK convergence enables global centimeter accuracy without dense base networks. Multi-frequency, multi-constellation receivers improve reliability and reduce convergence time. Machine learning optimizes ambiguity resolution and multipath detection. Tight IMU integration maintains accuracy through extended signal outages.

Market Growth

Adoption accelerates in autonomous vehicles, smart city infrastructure, precision agriculture expansion, construction BIM integration, and advanced air mobility.

Conclusion

GPS and RTK selection depends on application requirements. Standard GPS provides meter-level accuracy for general navigation. RTK delivers centimeter precision essential for professional surveying, autonomous systems, and precision agriculture.

RTK technology offers 100× accuracy improvement, real-time performance, eliminated error accumulation, and proven reliability.

Jumpstar's GNSS portfolio—from modules to complete receivers—provides technical foundations for precision positioning solutions. With 15+ years expertise, multi-constellation support, IMU integration, and anti-jamming capabilities, Jumpstar enables reliable, high-performance system deployment.

As industries demand automation and precision, RTK transitions from advantage to necessity. Evaluating accuracy requirements, operational environment, and integration capabilities guides appropriate GNSS solution selection.
