Beidou-Integrated GNSS/RTK: China’s Smart Rail Revolution with Space-Air-Ground Surveying & BIM

Beidou satellite, drone, and ground surveying integrated for China's smart high-speed rail revolution.

China is pioneering a paradigm shift in railway construction and surveying, moving beyond traditional manual methods to embrace a comprehensive "Space-Air-Ground-Data" smart ecosystem. This intelligent revolution, centered on the Beidou Navigation Satellite System (BDS), is transforming the entire lifecycle of high-speed rail, from pre-design to operation.

Beidou-Integrated Surveying: A Three-Dimensional Check-Up for the Earth

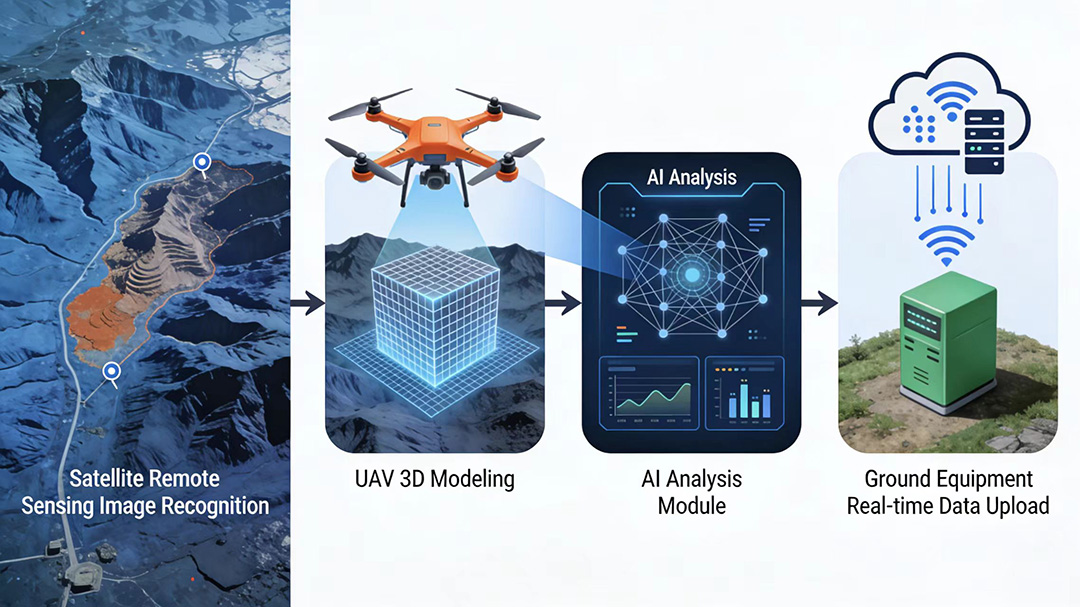

Space-air-ground Beidou surveying diagram for railway geological risk detection.

The core of this transformation is the Space-Air-Ground Integrated Surveying system, which is a collaborative ecosystem linking "Space, Air, Ground, and Data". It replaces the shortcomings of traditional surveying—inaccuracy, data fragmentation, and low efficiency.

1. Intelligent Prospecting: Early Warning for Subsurface Risks

Railway construction is fraught with "hidden dangers" like karst collapse, water-soluble caves, and soft rock strata, which can threaten engineering safety. The integrated system provides a "three-dimensional check-up" of the ground, identifying risks early.

● Space (Sky) Perspective: High-definition satellite remote sensing interpretation rapidly identifies potential mining areas and soft rock strata, acting as a "global CT scan" of the earth.

● Air Perspective: Unmanned Aerial Vehicles (UAVs) equipped with oblique photography conduct low-altitude flights over key areas, generating real-scene 3D models at a 1:2000 scale, even visualizing soft soil distribution in mountainous valleys.

● Ground Perspective: Surveying personnel use mobile equipment with Beidou receivers to collect geological data, borehole records, and mapping data in real time, uploading them to the cloud without manual transcription.

● AI Analysis: An independently developed engineering geology information management system uses deep learning to automatically analyze the vast datasets, generating geological profiles and cross-sections with significantly reduced manual error and labor.

This integrated approach boosted overall prospecting efficiency by 15% and identified over six types of geological prospecting data, successfully locating three hidden risks in the pre-survey stage.

2. Intelligent Route Selection: Generating Optimal 3D Solutions in Minutes

Route selection is crucial for high-speed rail, balancing geology, land use, environmental protection, social impact, and economic viability. Traditionally, route comparison was slow and often relied on human experience.

The integrated technology transforms this process into an "Intelligent Recommendation Engine". By accessing comprehensive Space-Air-Ground data (topography, geology, road network, etc.) and seamlessly integrating with intelligent design software, it automatically constructs a two- and three-dimensional route planning environment.

● Optimized Output: The system requires only the input of economic, technical, and environmental evaluation weights to generate multiple route options within a short time.

● Proven Efficiency: In a 45 km high-risk section pilot test, the system automatically generated route corridors, bridges, tunnels, and roadbed 3D models in just 3 minutes.

● Superior Results: It output three priority options—"Highest Fit to Planning," "Most Economically Feasible," and "Balanced Economy and Planning"—that perfectly matched the results of repeated manual calculations. This approach improved route design and proposal efficiency by over 12% compared to traditional methods.

3. Collaborative Design: Breaking the Digital Wall with BIM

High-speed rail design involves over ten specialized fields (e.g., bridges, tunnels, signaling, power). Historically, poor interface coordination led to field revisions, costing time and money.

A key pillar of the integrated system is the breakthrough of the domestic Building Information Modeling (BIM) platform. Leveraging digital twin technology, an independently developed multi-specialty collaborative design software is built upon a single, unified model.

● Automatic Conflict Detection: The system automatically checks for interface conflicts, such as misaligned slopes between roads and tunnels.

● Visualization and Simulation: It enables "virtual construction" of equipment like the four major power systems (communication, signaling, power, and traction power supply), allowing designers to check constraint limits and avoid construction blind spots.

● Investment Savings: This collaborative design capability is credited with saving 20 million RMB in project investment.

Sovereignty and Self-Reliance: The "Chinese Chip" Advantage

The application of integrated surveying marks not just a technological upgrade, but a strategic victory in achieving "100% independent and controllable" technology. Previously, China's railway BIM platform relied on foreign software, leading to data security risks and technical limitations.

Today, these challenges are overcome:

● Beidou Independence: The domestically developed "Star of Railway Construction" Beidou receiver, coupled with the national industry standard for railway Beidou ground augmentation stations, fundamentally solves the problem of "relying on GPS". This makes China the first country globally to achieve Beidou substitution for GPS across the entire railway surveying domain.

● Software Autonomy: The domestically produced BIMBase platform replaces foreign software, supporting collaborative design across dozens of specialties and ensuring the entire railway surveying and design toolchain is fully self-reliant.

The Future: From "Build and Stabilize" to Full Lifecycle Protection

As China promotes the "14th Five-Year Plan" for railway planning and Smart High-Speed Rail 2.0, the integrated technology will evolve further.

The future involves integrating construction and operation, allowing Beidou to monitor high-speed rail subsidence in real-time and using AI to predict geological hazards. This ensures that the high-speed rail transition from "built and stable" to a "full lifecycle supervision and protection" system. This represents a milestone in technological confidence and the nation's commitment to cutting-edge infrastructure
