IMU Dead Reckoning Modules

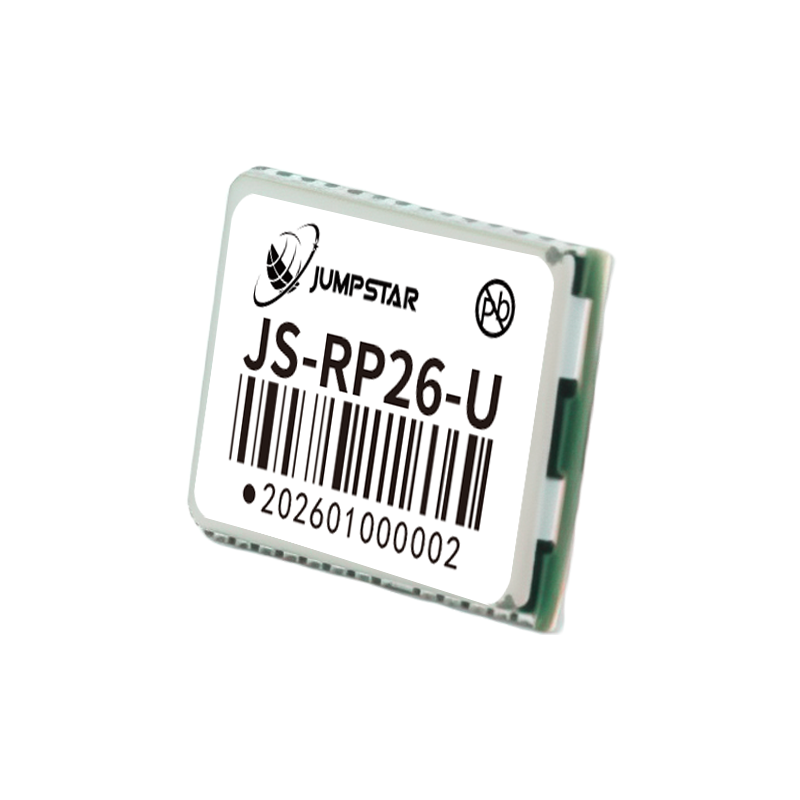

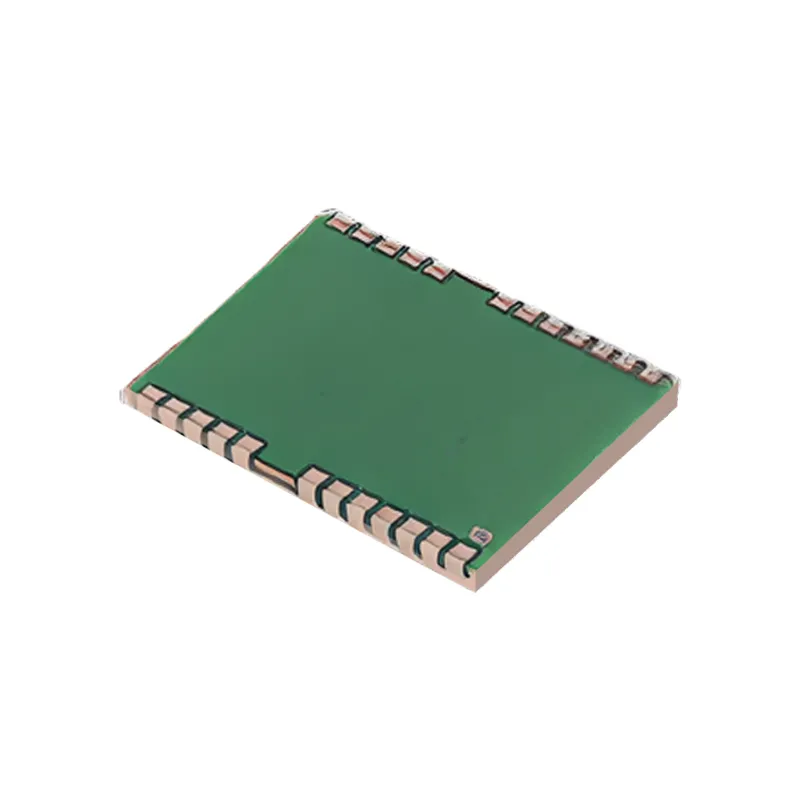

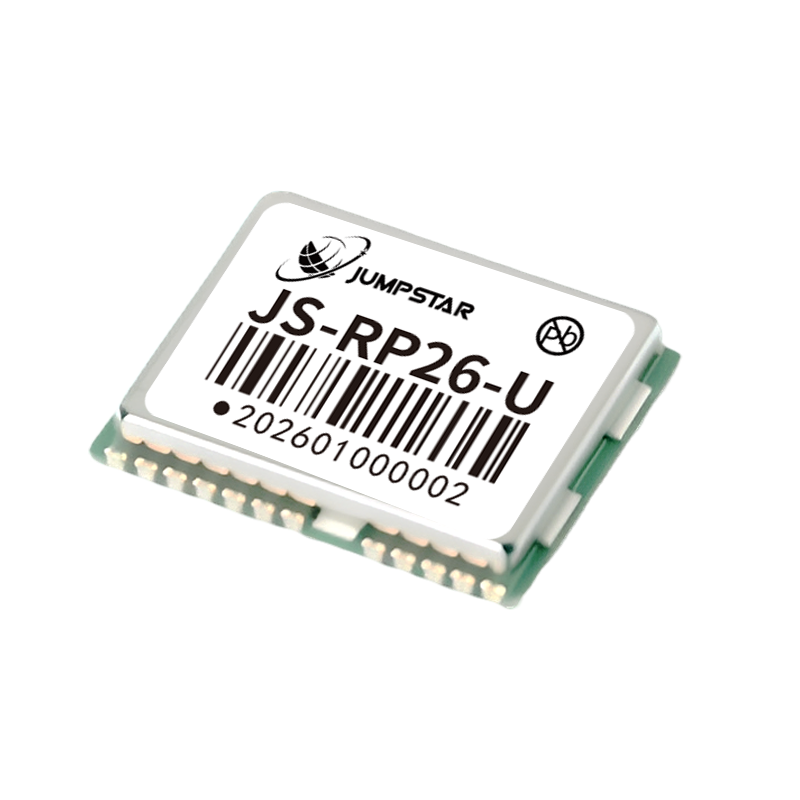

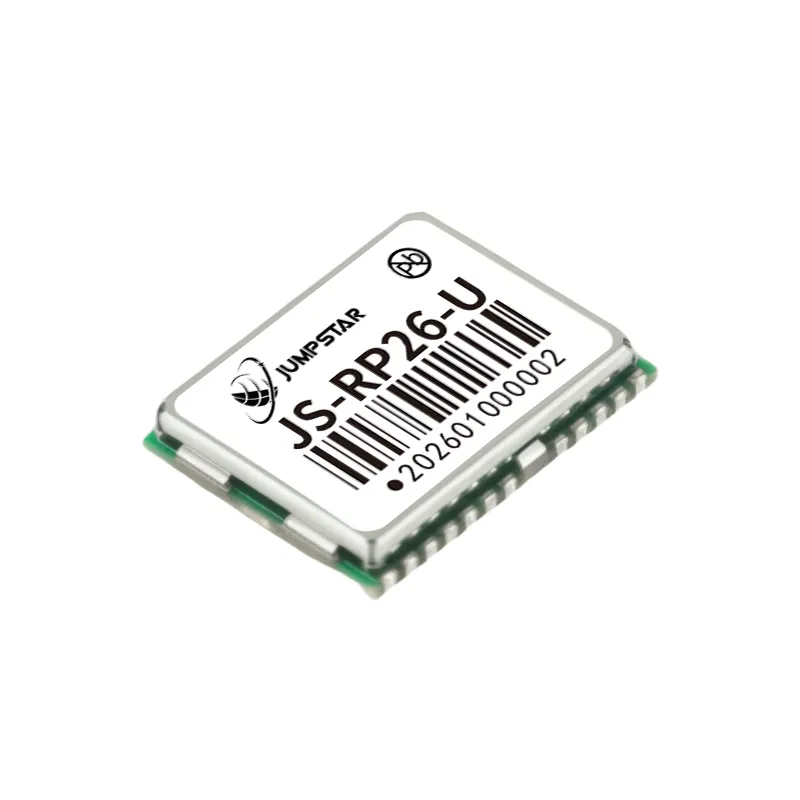

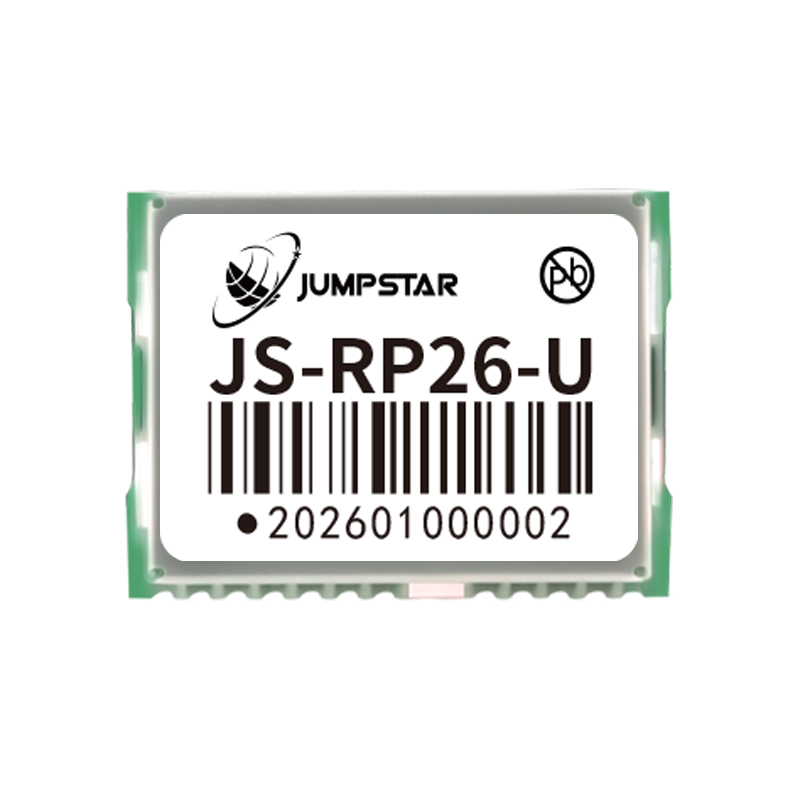

The JS-RP26-U is a single-frequency (L1) GNSS module with an integrated inertial navigation unit, offering high performance and low power consumption. It features advanced low-power design and supports optimized multi-band, multi-mode signal tracking. With anti-multipath and anti-interference RF front-end technology, it provides up to eight anti-interference filters for L1, improving positioning and TTFF performance. Ideal for applications in railways, maritime navigation, UAVs, and automotive systems.

Share:

Product Features

  • Based on high-performance SOC series

  • Integrated inertial navigation

  • Low power consumption, high performance

  • Features 200 tracking channels and dedicated search engine

  • Update frequency up to 20Hz

  • Supports all satellite constellations at single frequency (L1)

  • Supports AGPS and SBAS.

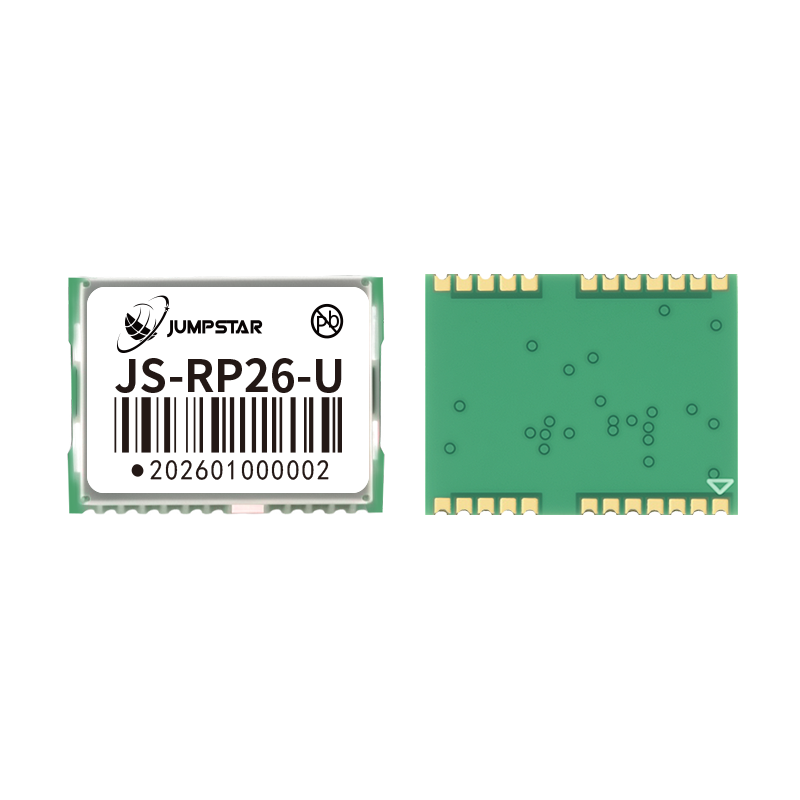

  • Compact dimensions (16.2mm × 12.2mm × 2.3mm ± 0.3mm), lightweight (<1.1g).

  • Supports standard NMEA 0183 protocol and RTCM 3.X

  • Supports adaptive installation

Performance Indicators

CategorySpecifications
Constellation PointsGPS: L1
BDS: B1I B1C
QZSS: L1
GALILEO: E1
GLONASS: G1
SensitivityTracking and Navigation: -165 dBm
Reacquisition: -159 dBm
Hot Start: -159 dBm
Cold Start: -148 dBm
Time To First FixCold Start: 28 s
AGPS: 1.5 s
Hot Start: 1 s
Positioning AccuracySingle Point<br>Horizontal: 1.0 m CEP<br>Vertical: 2.0 m CEP
Velocity Accuracy0.1 m/s CEP
Tracking Channels200
INSGNSS signal loss 120 s internal error 5%
Application LimitsDynamic: ≤ 4 g
Altitude: 20000 m
Velocity: 500 m/s
Baud Rate115200 ~ 921600 bps (default 115200 bps)
Max Update Rate20 Hz (default 1 Hz)

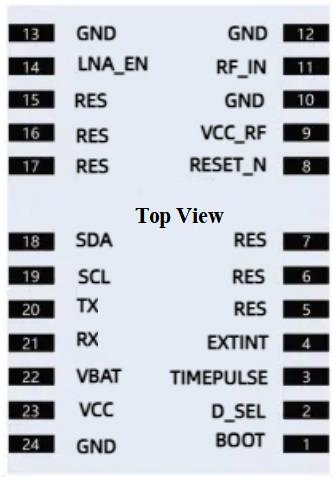

Pin Assignment

Pin Assignment
Pin No.Pin NameI/ODescription
1BOOT-Reserved
2D-Reserved
3TIMEPULSEO1 PPS, pulse (keep open if not used)
4EXTINT-Reserved
5,6,7,15,16,17RES-Reserved
8RESET_NOReset pin (low active, keep open if not used)
9VCC_RFOOutput voltage RF bands (keep open if not used)
10,12,13,24GND-Ground
11RF_INIGNSS signal input
14LNA_EN-Reserved
18SDAI/OI²C (internal use only)
19SCLI/OI²C (internal use only)
20TXOTTL output (keep open if not used)
21RXITTL input (keep open if not used)
22VBATIStandby voltage power supply
23VCCPMain power supply


  • Emergency Response

  • Intelligent Logistics Dispatch

  • Automotive Applications

  • Drone Applications

  • AVL and Location-Based Services

  • Railway Applications

  • Maritime Navigation and Fleet Management



Agreement

ProtocolType
NMEA 0183Input/Output, ASCII
RTCM3.XInput/Output
