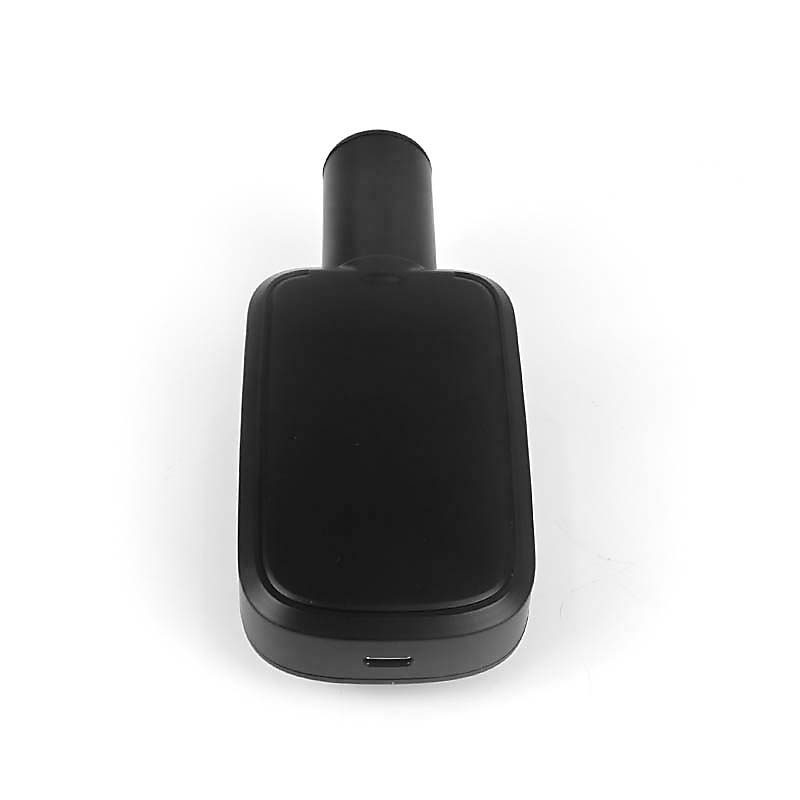

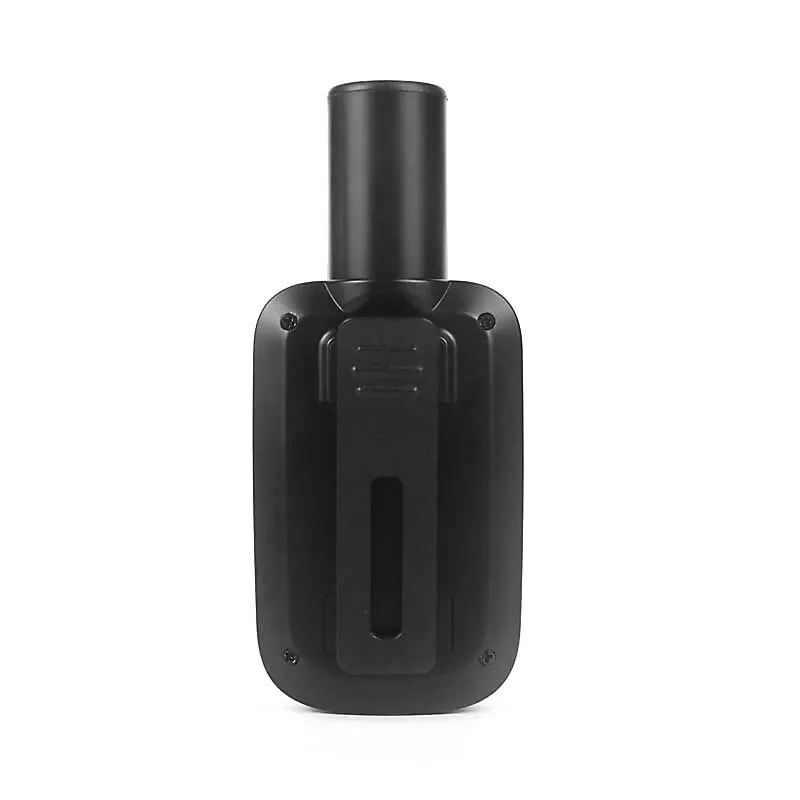

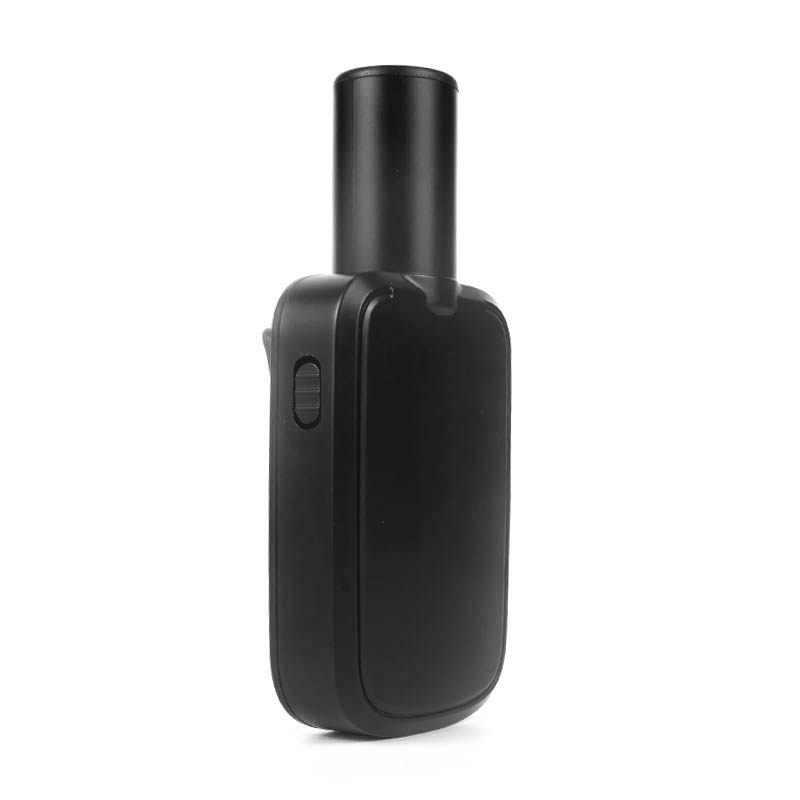

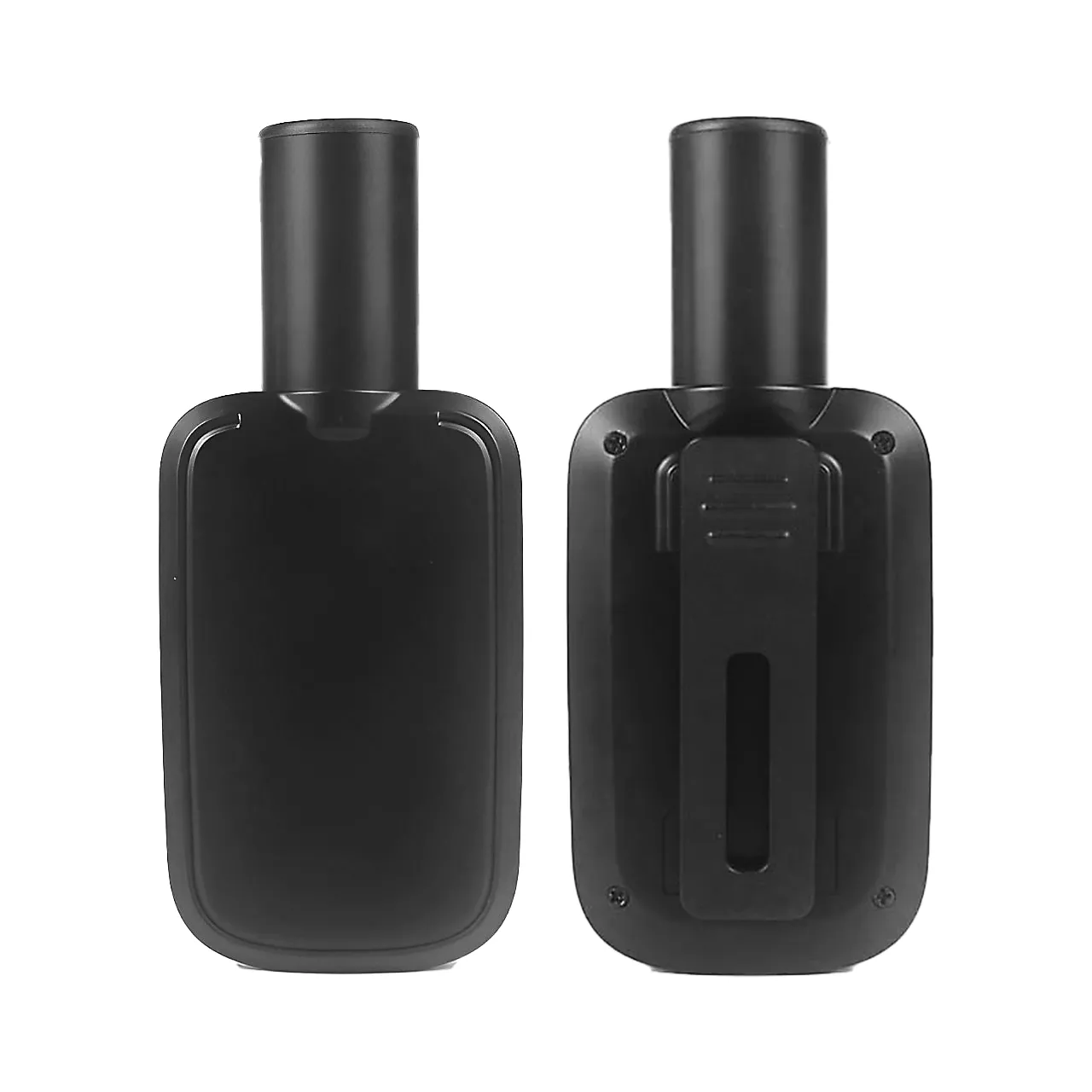

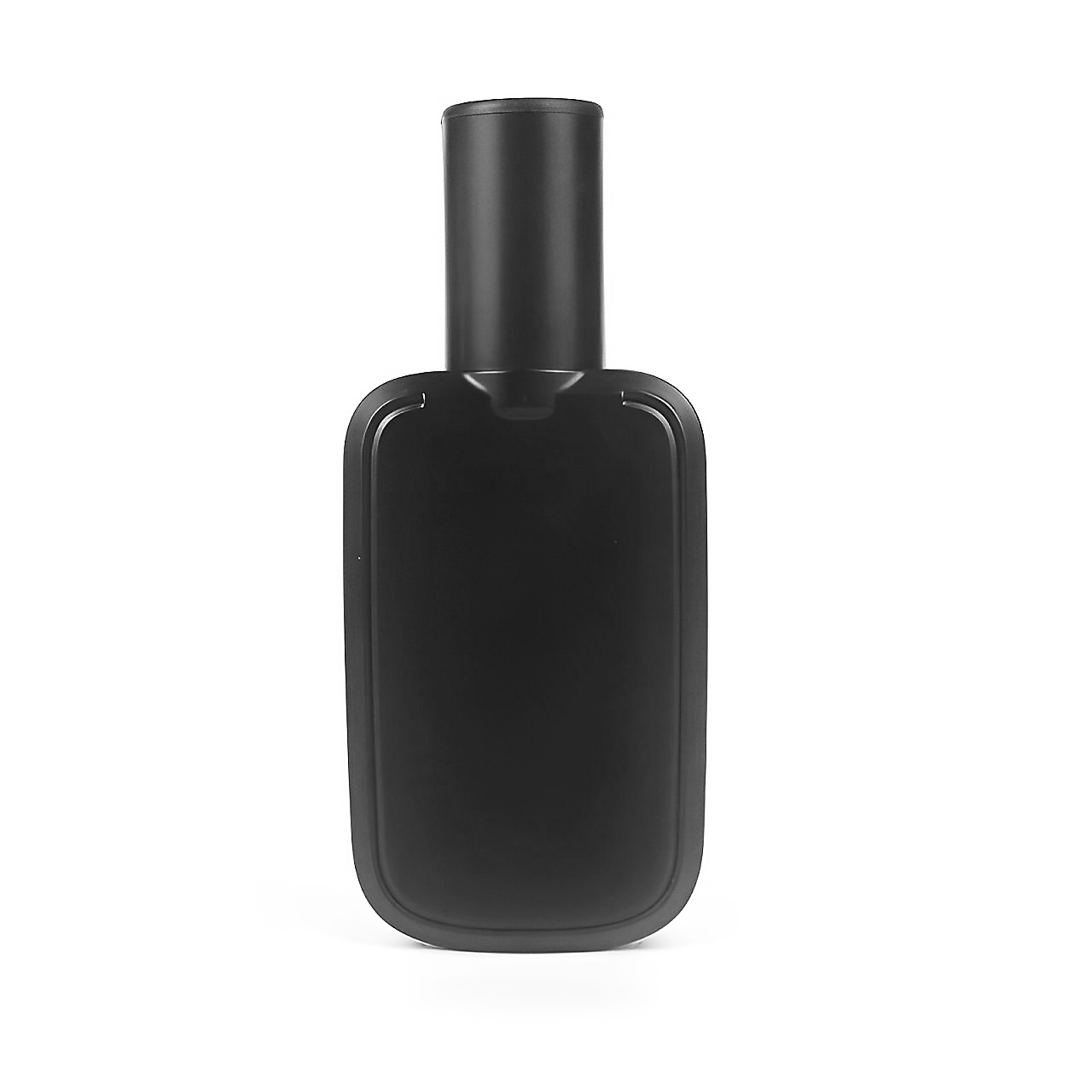

P2A is a compact Bluetooth BeiDou positioning terminal designed for personnel tracking and management. Featuring a professional-grade GNSS chip, strong anti-interference capability, and stable performance, it supports positioning, dispatching, trajectory analysis, and data collection via a satellite platform. It is suitable for railway inspection, emergency response, forestry patrol, event management, and outdoor operations.
Performance
| Item | Parameter |
| Operating Voltage | DC5V |
| Peak Current | 3A |
| Operating Temperature and Humidity | -20℃ ～ +70℃, 20% ～ 95% |
| Positioning Accuracy | 2.5 m CEP |
| Receiving Signal | GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF |
| Reporting Interval | Default reporting every 1 second |
| Bluetooth | Bluetooth 4.0 |
| Charging Interface | Type-C |
| Built-in Battery | 2500mAh |
| Working Time | 8 hours |
| Dimensions | 130mm×55mm×38mm |
| Weight | 104g |
