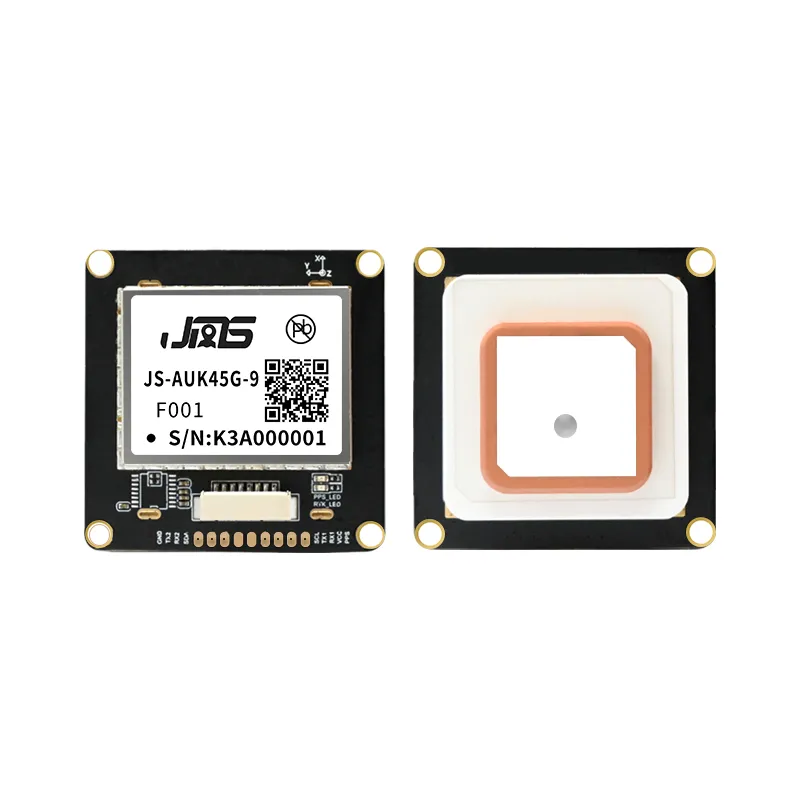

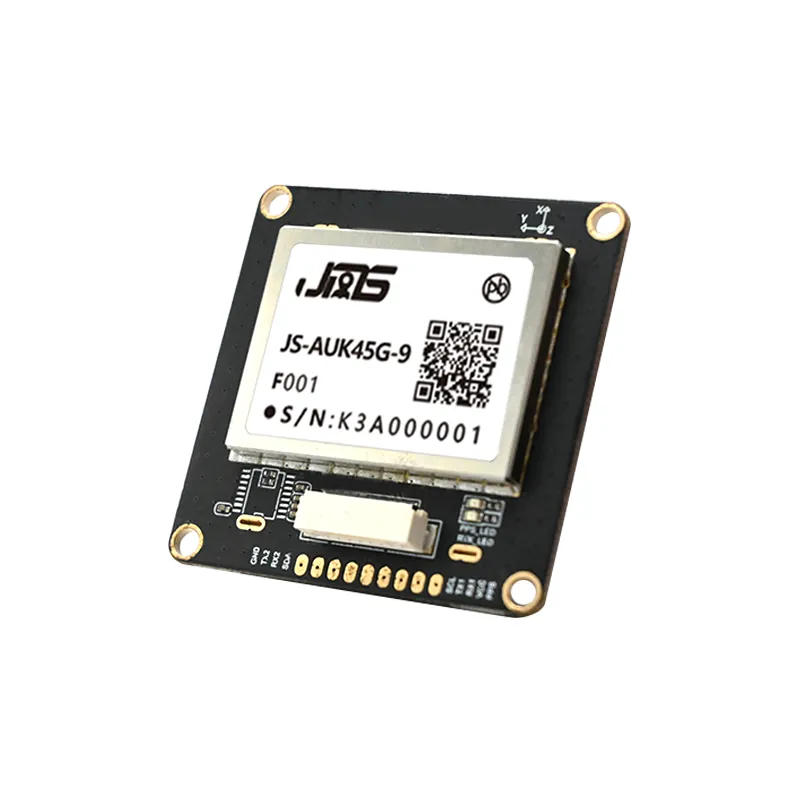

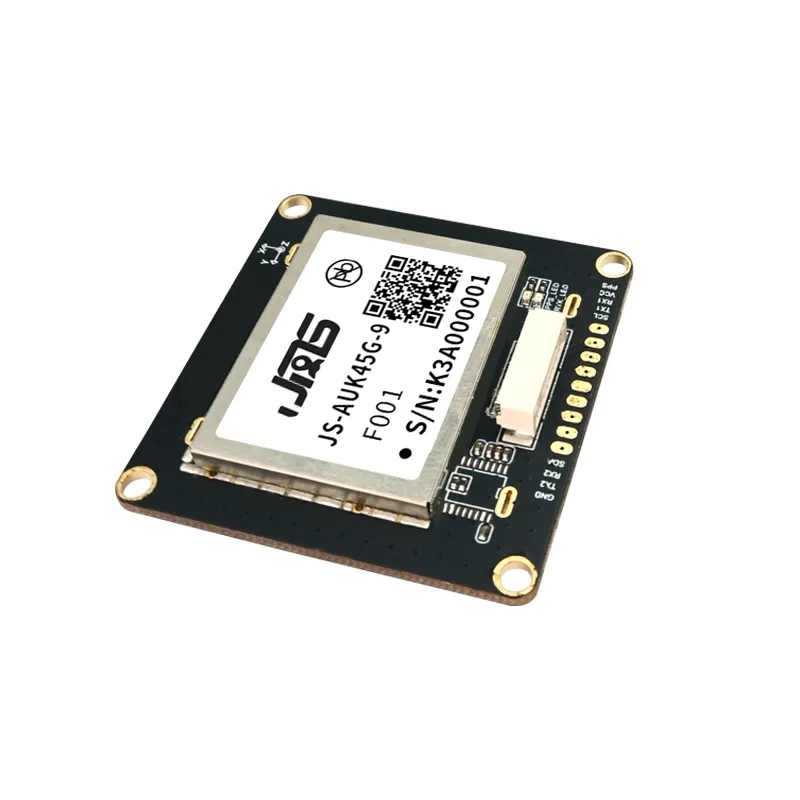

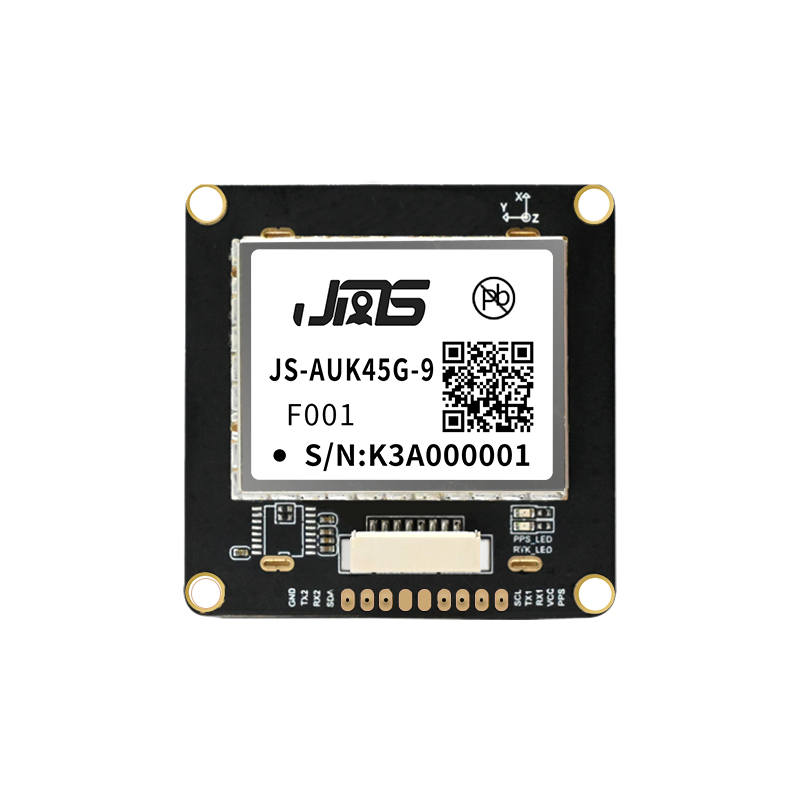

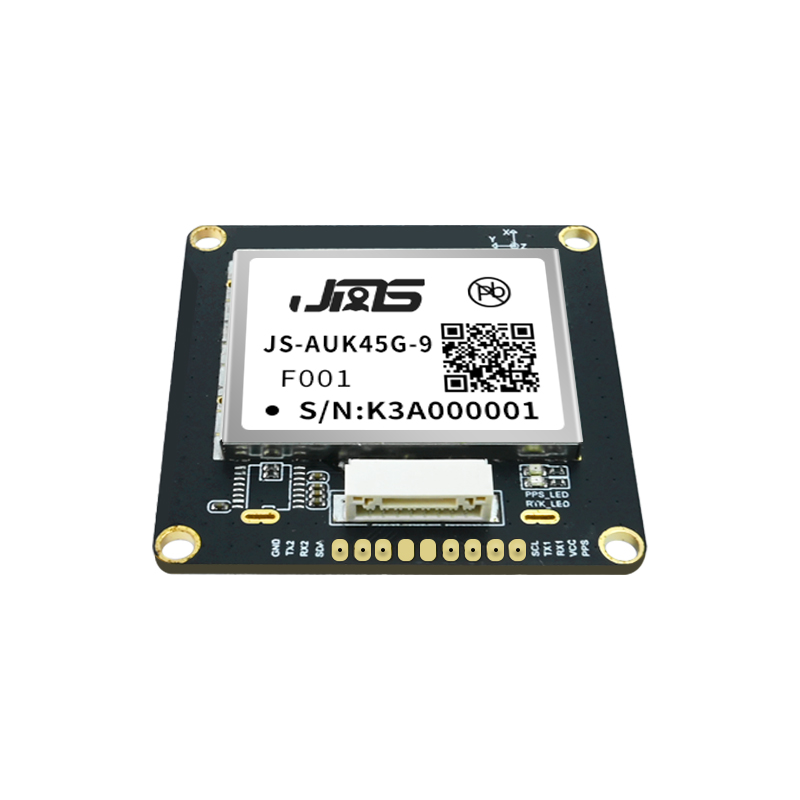

The JS-AUK45G-9 is a high-performance concurrent GNSS receiver designed to track multiple systems simultaneously. With its advanced multi-band RF front-end, it supports all major constellations including GPS, QZSS, SBAS, GLONASS, Galileo, and BDS. By processing all satellites in view with correction data, it delivers precise RTK navigation. Powered by the JS-AUK45G-9 engine, it provides exceptional sensitivity, rapid acquisition, and strong interference suppression, ensuring reliable positioning even in challenging environments.
Product Features
Build on high performance GNSS single chip
192 search channels and 60 trace channels
Cold start acquisition sensitivity of -148dBm and -167dBm tracking sensitivity
Default 1Hz navigation update rate
Supports GPS,BDS, GLONASS, Galileo and QZSS,SBAS
Integrated TCXO, LNA, SAW, RTC
Configurable peripheral IO pins

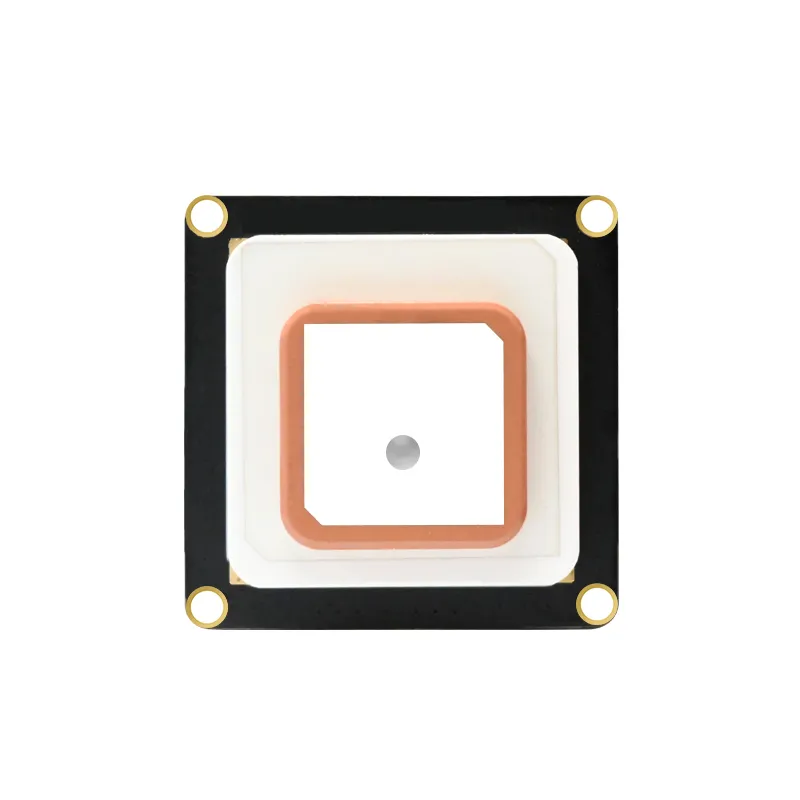

Integrated high gain antenna
Low power consumption and it has intelligent power control mechanism
Single supply with wide voltage range
Compact size (56.0*56.0*17.2mm±0.3mm) suitable for space-sensitive application
Rich hardware interface to support multiple configurations. UART, I2C, RS232, USB
This module can be equipped with VCM5883 (IST8310) Address(8-bit)=1EH
Performance
| Parameter | Specification | |
| Receiver type | GPS/QZSS/SBAS L1C/A L2C Galileo E1 E5b GLONASS L1OF L2OF BDS B1l B2l | |
| Sensitivity | Tracking | -167 dBm |
| Reacquisition | -148 dBm | |
| Time-To-First-Fix | Cold Start | 25 s |
| Warm Start | 20s | |
| Hot Start | 2 s | |
| Horizontal Position accuracy | PVT | 1.5 m CEP |
| SBAS | 1.0 m CEP | |
| RTK | 2 cm+1 ppm ( Horizontal ) | |
| Accuracy of time pulse signal | RMS | 30 ns |
| Velocity accuracy | GNSS | 0.05 m/s |
| Operational limits | Dynamics | ≤ 4 g |
| Altitude | 80000 m | |
| Velocity | 500 m/s | |
| Baud Rate | 9600 - 921600 bps（ Default 115200 bps ） | |
| Max navigation update rate | 5 Hz ( If you need additional navigation update rates, please contact us ) | |

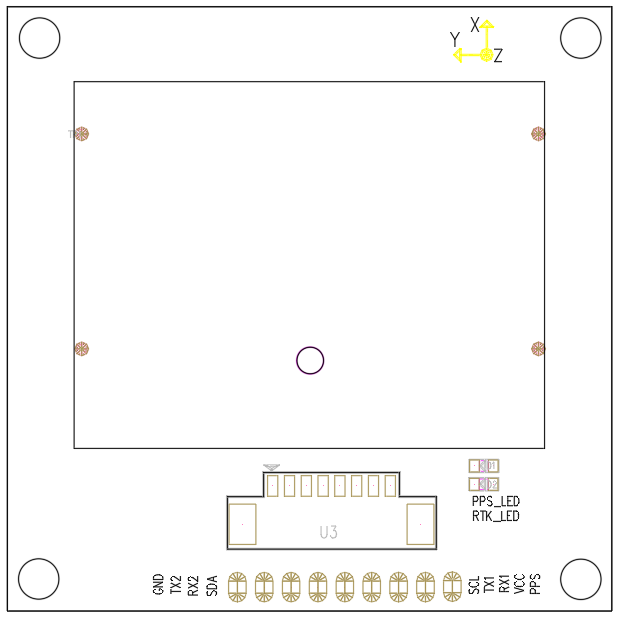

Pin Parameters
| PIN | Name | I/O | Description |
| 1 | GND | G | Ground |
| 2 | TX2 | O | Serial Port(UART 2: dedicated for RTCM3 corrections) |
| 3 | RX2 | I | Serial Port(UART 2: dedicated for RTCM3 corrections) |
| 4 | SDA | I/O | I2C Date（keep open if not used） |
| 5 | SCL | I/O | I2C Clock（keep open if not used） |
| 6 | TX1 | O | GPS TX Test |
| 7 | RX1 | I | GPS RX Test |
| 8 | VCC | P | Main supply |
| 9 | PPS | O | Time pulse |
Product Application
Automatic pilot
Aided driving
Wisdom path field
Intelligent safety testing
Direct detection
Vehicle management
UAV
Agricultural automation
Intelligent city
Intelligent robot
Protocols
| Protocol | Type |
| NMEA 0183 V4.11/ V4.0/V4.1 | Input/output |
| RTCM 3.3 | Input/output, binary |
| UBX | Input/output, binary, JMS proprietary |
