Product Features
Build on high performance GNSS M6D
96 search channels and 60 trace channels
Cold start acquisition sensitivity of -147dBm and -163dBm tracking sensitivity
Default 1Hz navigation update rate
Supports GPS/QZSS, BDS, GLONASS
Integrated TCXO,LNA,SAW,RTC
Configurable peripheral IO pins
Integrated high gain antenna
Low power consumption and It has intelligent power control mechanism
Single supply with wide voltage range
Compact size (65.0*63.0*22.0mm±0.5mm) suitable for space-sensitive application
Rich hardware interface to support multiple configurations. UART, RS232,I2C optional
Geomagnetic sensors (VCM5883)
Performance
| Parameter | Specification | |
| Receiver type | GPS L1 C/A L2C GLONASS G2 G1 BDS B1l B2l ( Including the Beidou-3 satellite ) | |
| Sensitivity | Tracking | -163 dBm |
| Reacquisition | -147 dBm | |
| Time-To-First-Fix | Cold Start | ≤ 35 s |
| Warm Start | 20 s | |
| Hot Start | 1 s | |
| Position accuracy | Autonomous | 2.0 m CEP |
| DGNSS | 0.5m CEP | |
| RTK | 2 cm+1 ppm ( Horizontal ) | |
| Accuracy of time pulse signal | RMS | 25 ns |
| Velocity accuracy | GNSS | 0.1 m/s CEP |
| D-GNSS | 0.05 m/s | |
| Operational limits | Dynamics | ≤ 4 g |
| Altitude | 18000 m | |
| Velocity | 515 m/s | |
| Baud Rate | 9600 - 230400 bps（ Default 115200 bps ） | |
| Max navigation update rate | 10 Hz (If you need additional navigation update speeds, please contact us) | |

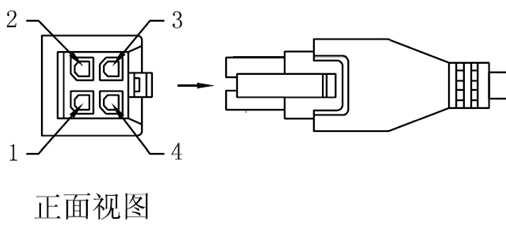

Pin Parameters
| No. | Name | I/O | Description |
| 1 | VCC | P | Main supply |
| 2 | RXD | I | TTL Input （keep open if not used） |
| 3 | TXD | O | TTL Output（keep open if not used） |
| 4 | GND | G | Ground |
Product Application
UAV
Automotive application
Precision agriculture
AVL and Location-Based Services
Marine Navigation, Fleet Management
Handheld GPS receiver application
Intelligent logistics scheduling
Measurement of surveying and mapping
Personnel protective
Driving test
Car navigation and tracking
Geographic Surveying
Intelligent robot
Protocols
| Protocol | Type |
| NMEA 0183 | Input/output, ASCII |
| RTCM 3X | Input/output, binary |
| JMS | Input/output, binary, JMS proprietary |
