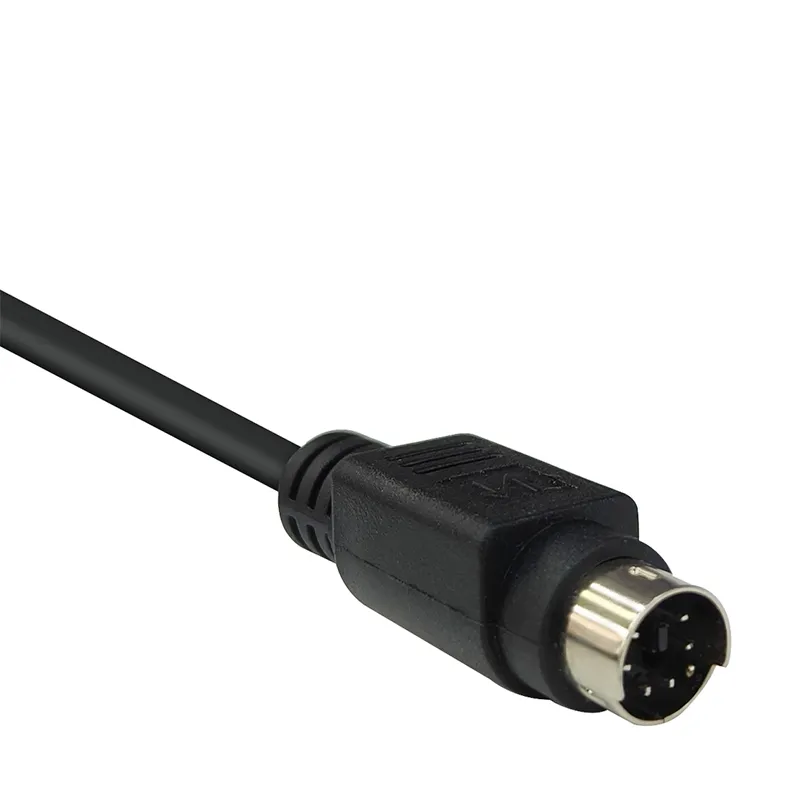

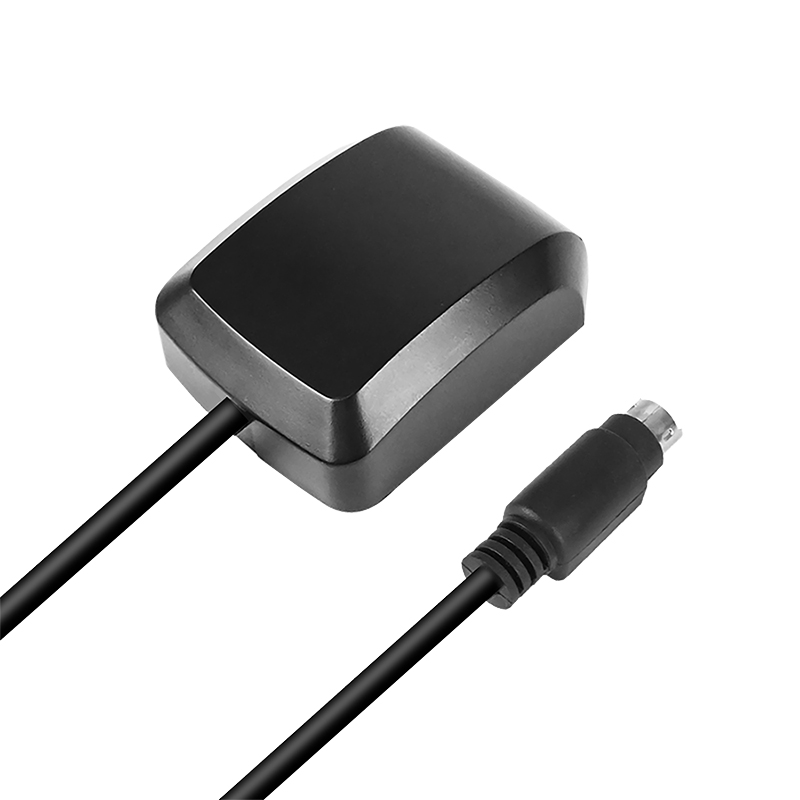

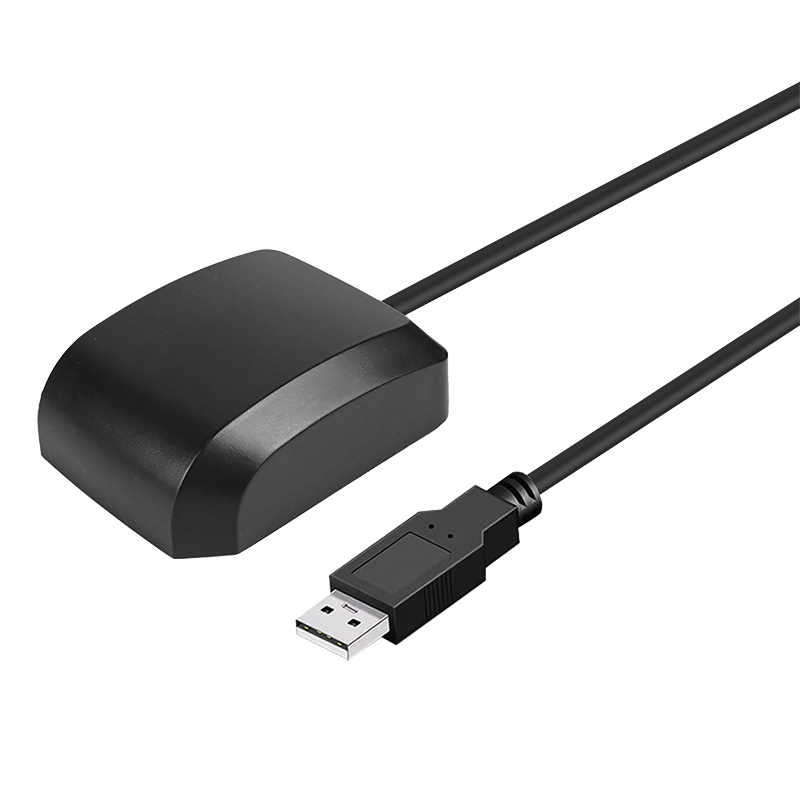

JS-168UP30B-1 is a low-power, cost-efficient multi-mode GNSS positioning module supporting BDS, GPS, GLONASS, Galileo, QZSS, and SBAS. Powered by a high-performance SoC positioning engine, it offers high sensitivity, fast acquisition, effective interference suppression, and customizable interfaces for diverse application requirements.
Product Features
Build on high-performance GNSS AUP30B-1
Over 2 million effective correlators
Cold start acquisition sensitivity of -148dBm and -166dBm tracking sensitivity
Up to 10 Hz navigation update rate
Supports GPS, BDS, GLONASS, Galileo, QZSS,SBAS
Supports A-GNSS
Integrated TCXO,LNA, SAW,RTC
Compact size(50.2mm x 39.2mm x19.2mm±0.3mm)
Support standard NMEA 0183, UBX
Performance
| Parameter | Specification |
| Receiver type | GPS/QZSS L1C/A SBAS EGNOS, GAGAN, MSAS and WAAS GLONASS L1OF BDS B1I, B1C Galileo E1 B/C |
| Sensitivity | Tracking & Navigation: -166dBm |
| Reacquisition: -160dBm | |
| Hot Start: -160dBm | |
| Cold Start: -148dBm | |
| Time-To-First-Fix | Cold Start: 29 s |
| Hot Start: 1 s | |
| Horizontal Position accuracy | Autonomous: 2.0 m CEP |
| SBAS: 1.5 m CEP | |
| RMS: 30 ns | |
| Accuracy of time pulse signal | 99%: 60 ns |
| Velocity accuracy | 0.05 m/s |
| Operational limits | Dynamics: ≤ 4 g |
| Altitude: 80000 m | |
| Velocity: 500 m/s | |
| Frequency of time pulse signal | Default 1PPS (0.25 Hz to 10 MHz configurable) |
| Baud Rate | 4800 -- 921600 bps (Default 38400 bps) |
| Max navigation update rate | 10 Hz (Default 1Hz, configurable) |
Product Application
Automotive application
Intelligent logistics scheduling
AVL and location-based services
Personnel protective
Marine navigation, fleet management
Car navigation and tracking
Navigation,fleet management
Intelligent robot
