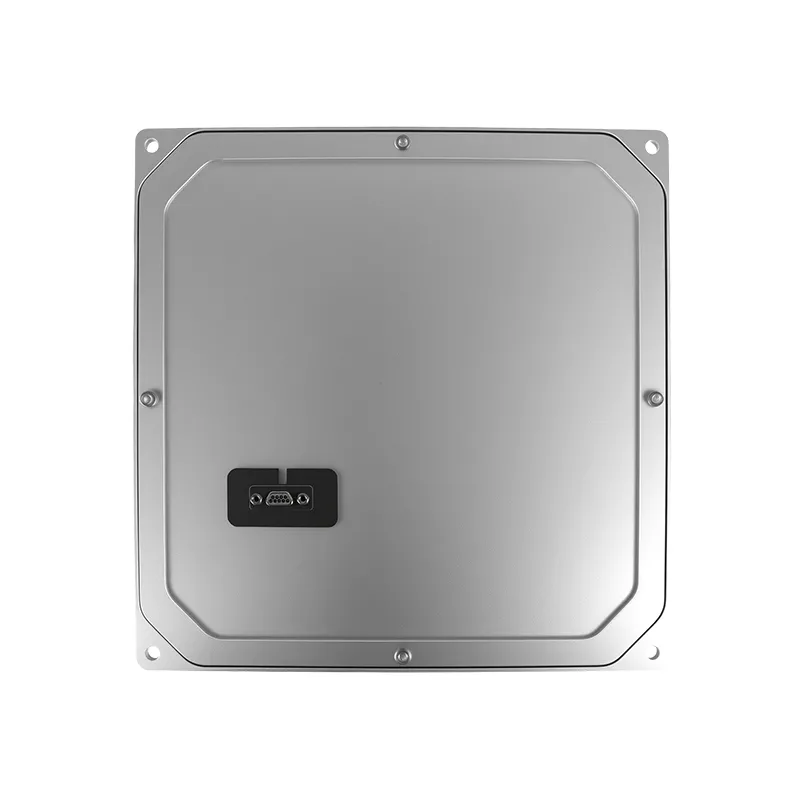

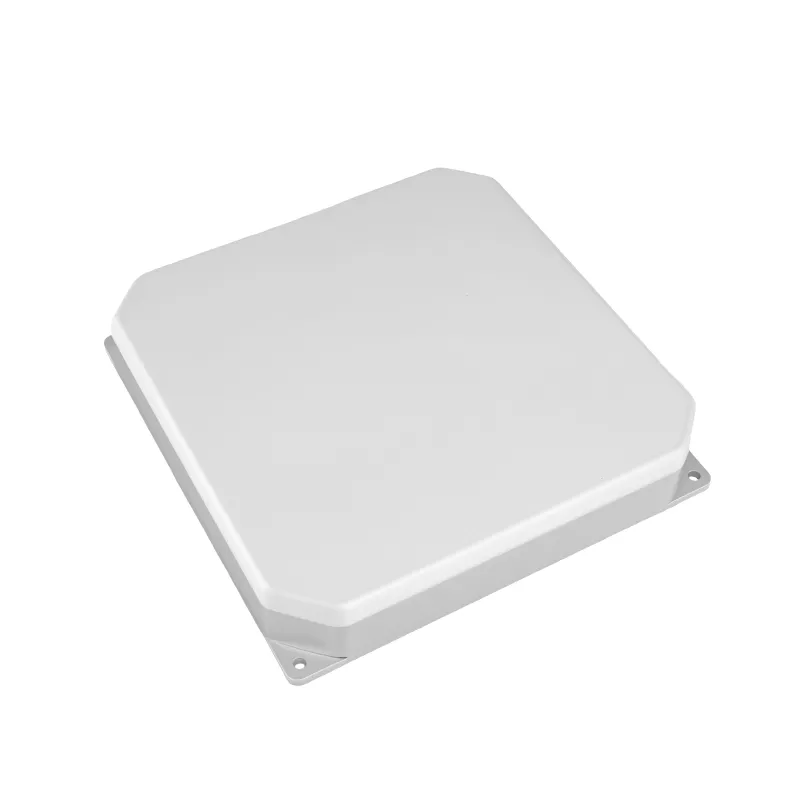

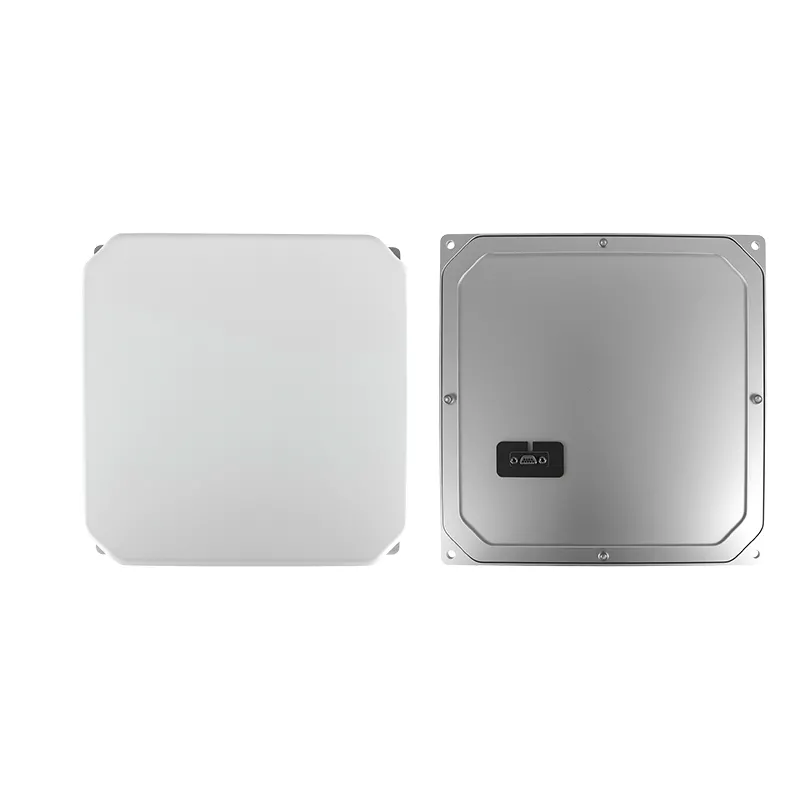

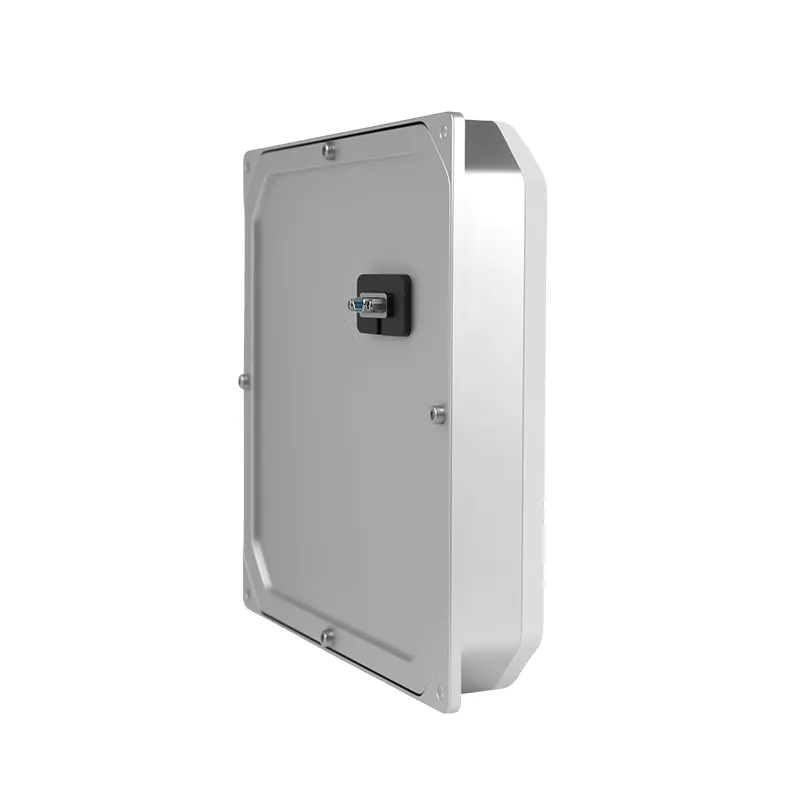

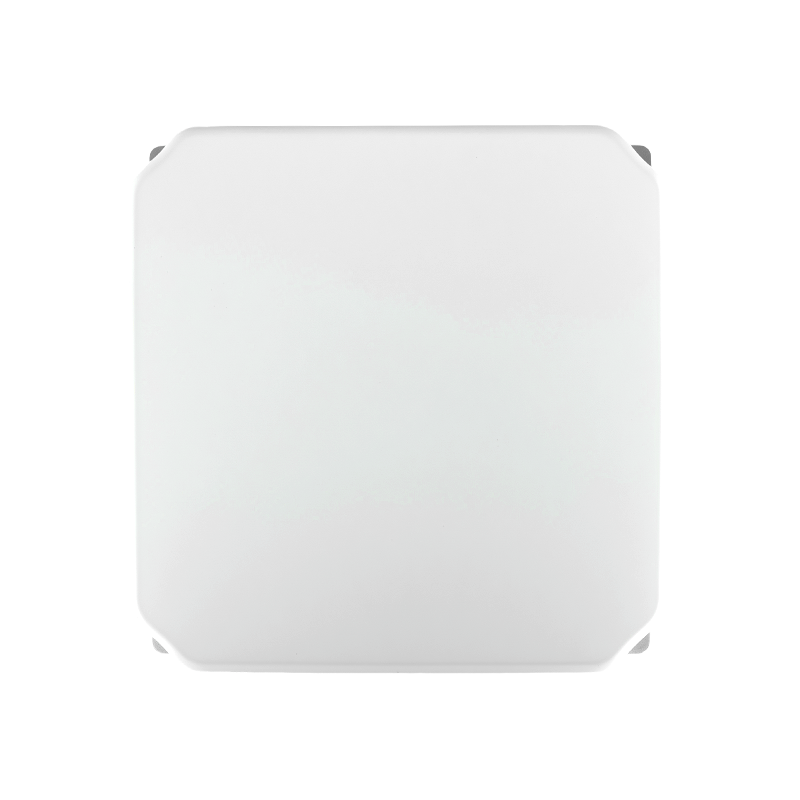

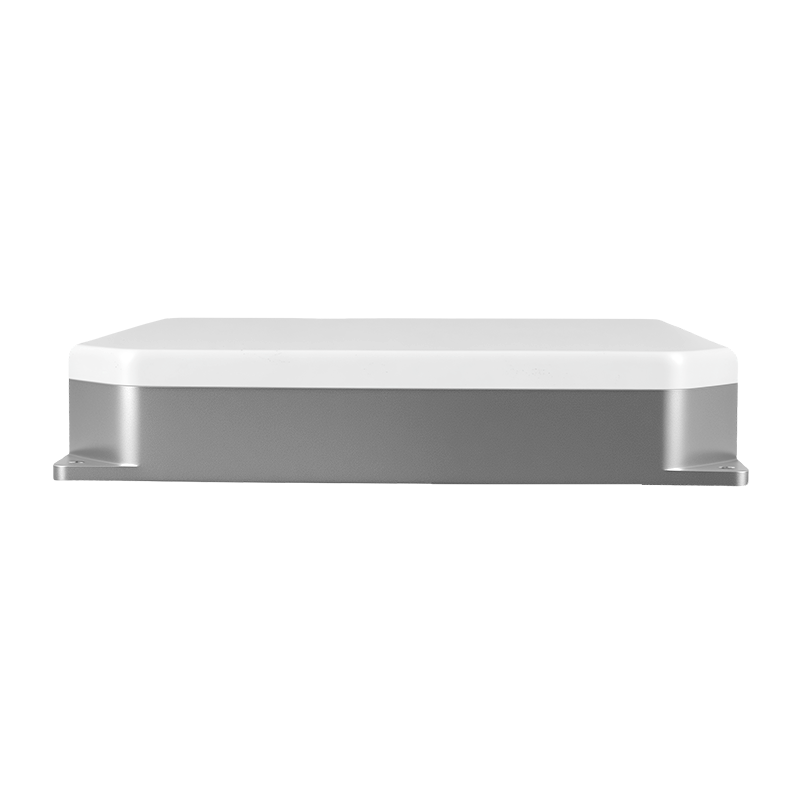

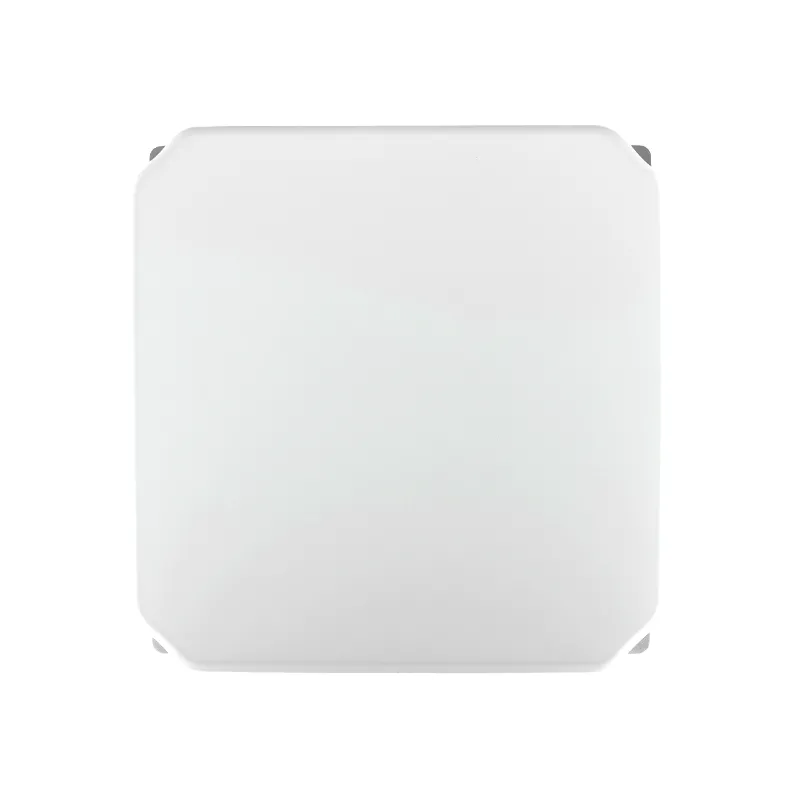

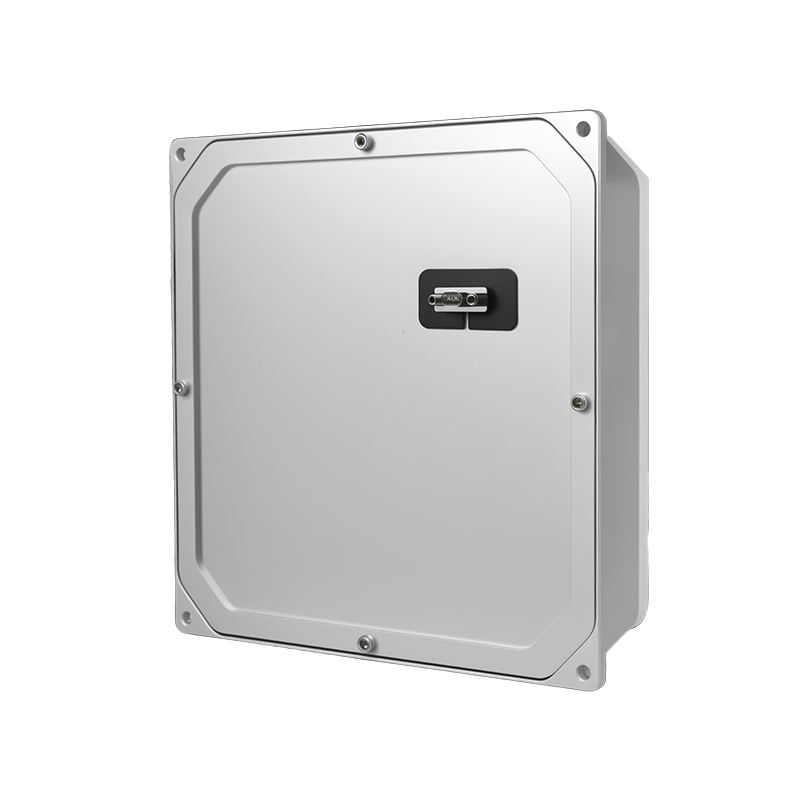

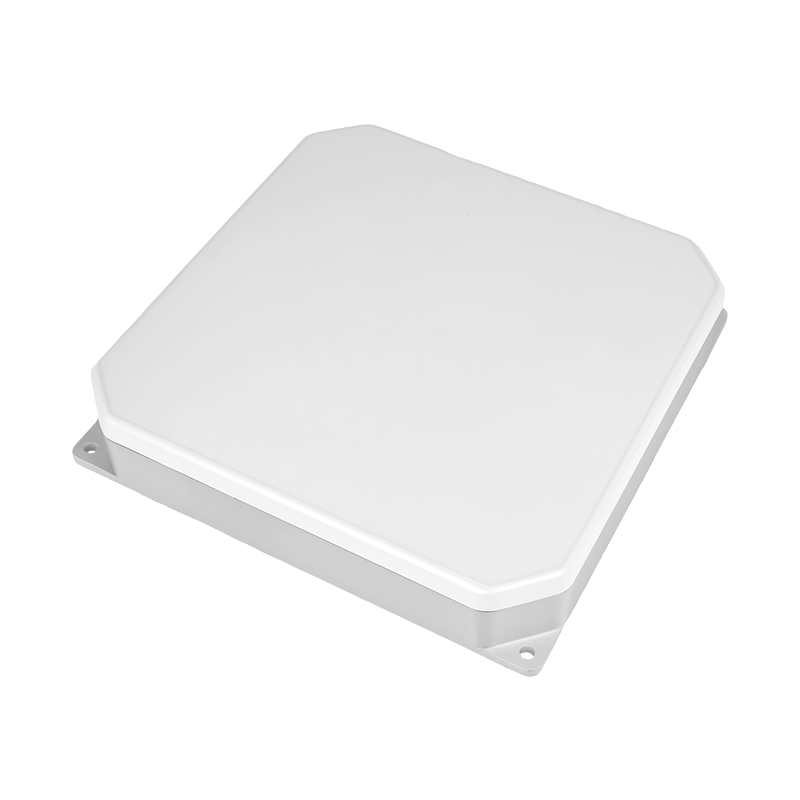

The X168 is a highly integrated anti-jamming antenna combining an anti-jamming module with an array antenna. Its compact, lightweight, and low-power design enables reliable anti-jamming communication for airborne, vehicle-mounted, and portable systems operating in demanding and interference-intensive environments.
Product Characteristics
Supported frequency bands:GPS L1/L2/L5bands, BDS B1/B2/B3 bands,GLONASS G1/G2 bands,GALILEO E1/E5/E6 bands
Number of anti-interference components: Five-component anti-interference device
Interference immunity:115dB under single interference, 95dB under three interferences
The equipment is highly integrated and easy to install and use
Smallest size:168x168x32mm (excluding connector),weight ≤75g
Low noise figure RF front end, high sensitivity
Performance Indicators
| Parameter | Detailed Explanation |
| Receive frequency | BDS: B1, B2, B3 GLONASS: G1, G2 GPS: L1, L2, L5 Galileo: E1, E5, E6 |
| Anti-interference frequency | BDS: B1, B2, B3 GLONASS: G1, G2 GPS: L1, L2, L5 Galileo: E1, E5, E6 |
| Anti-interference capability | Single interference 115 dB |
| Three interferences 95 dB | |
| Operating voltage | 5 V |
| Rated power consumption | ≤2 W (Indoor temperature) |
Pin assignment
| PIN. | Name | Input/Output | Description |
| 1 | VIN+ | Input | 5V power input |
| 2 | GND | - | Ground |
| 3 | TX2_SBF | Output | SBF protocol output |
| 4 | TX1_NMEA | Output | NMEA protocol output |
Product Application
loT Communication
Airborne
Precision Engineering Operations
Vehicle terminal
Rail transit vehicle
Marine communications
Portable mobile terminal
loT smart terminals
