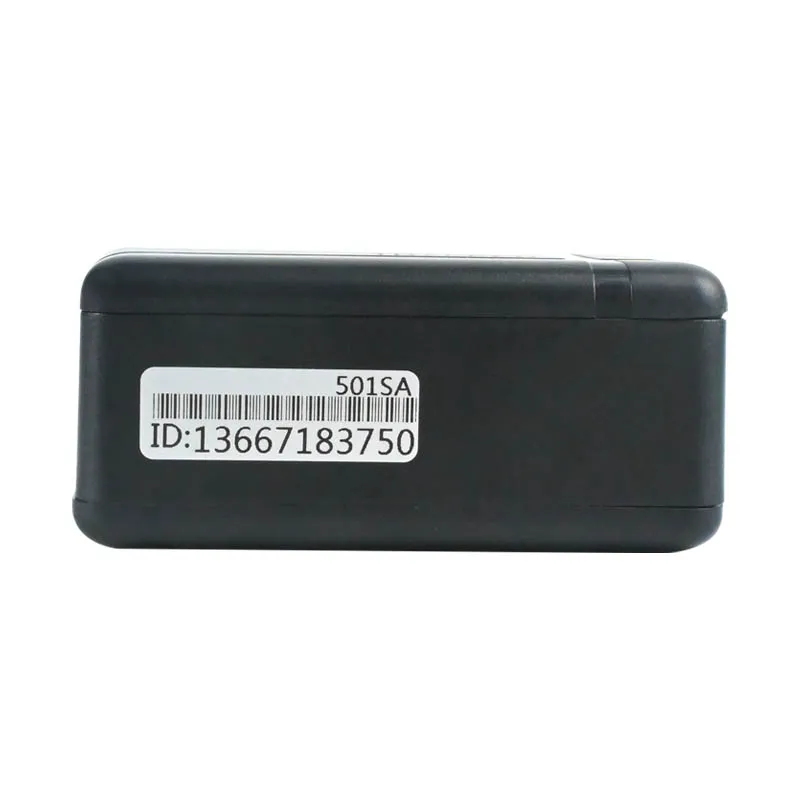

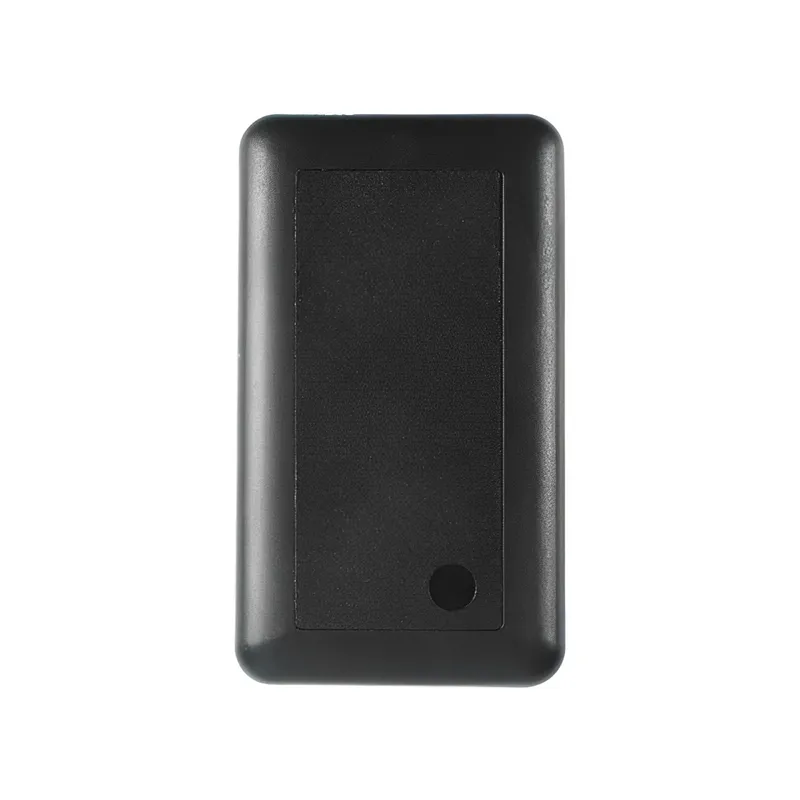

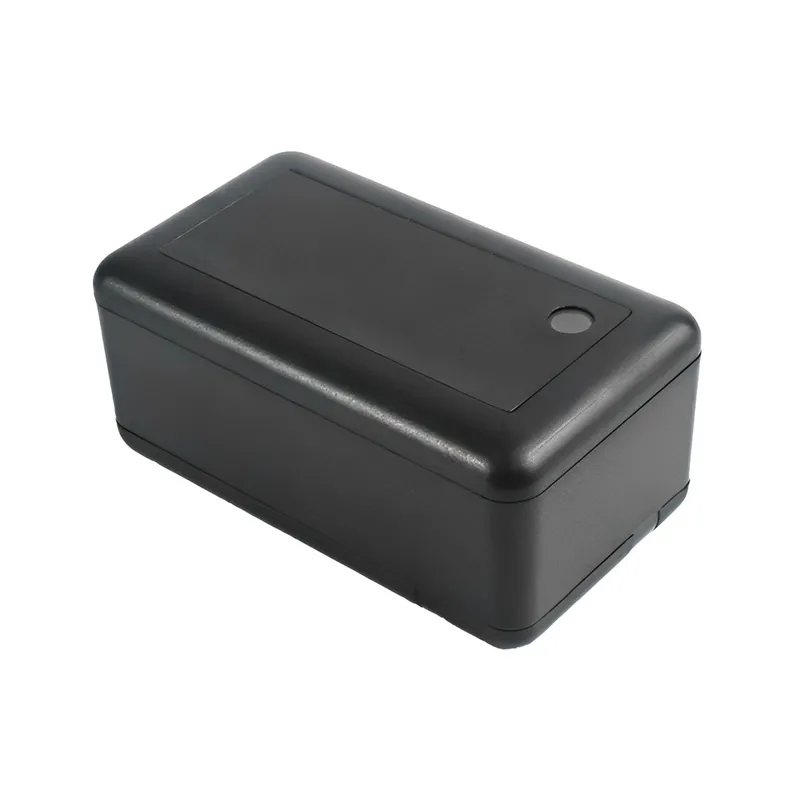

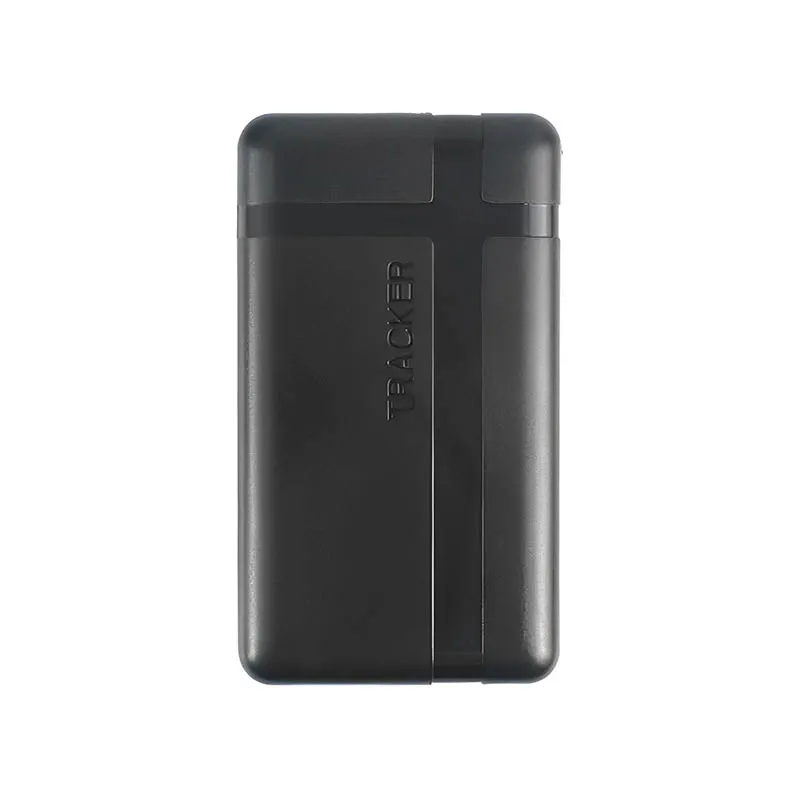

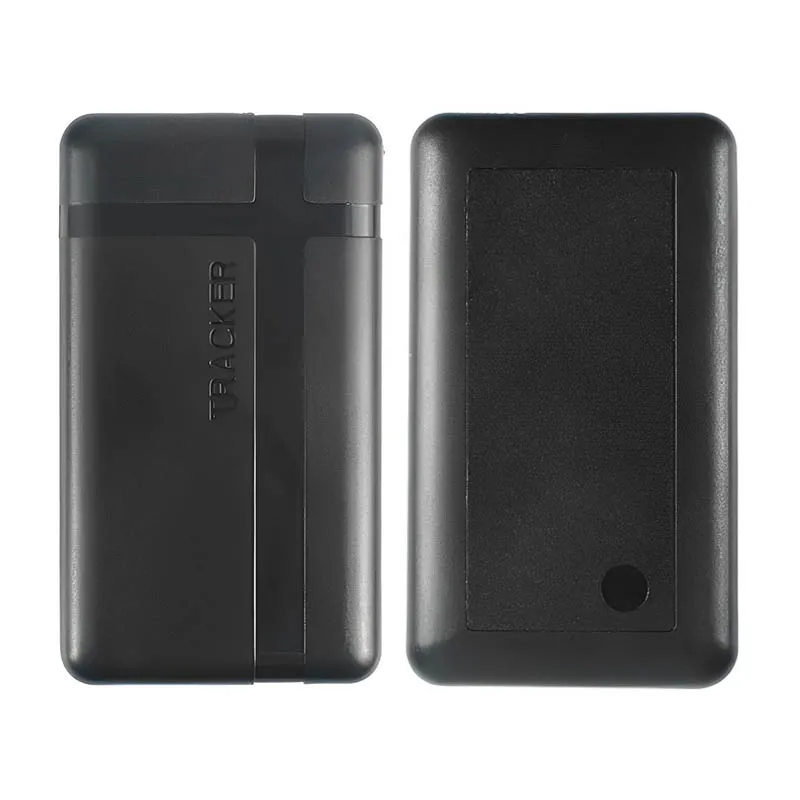

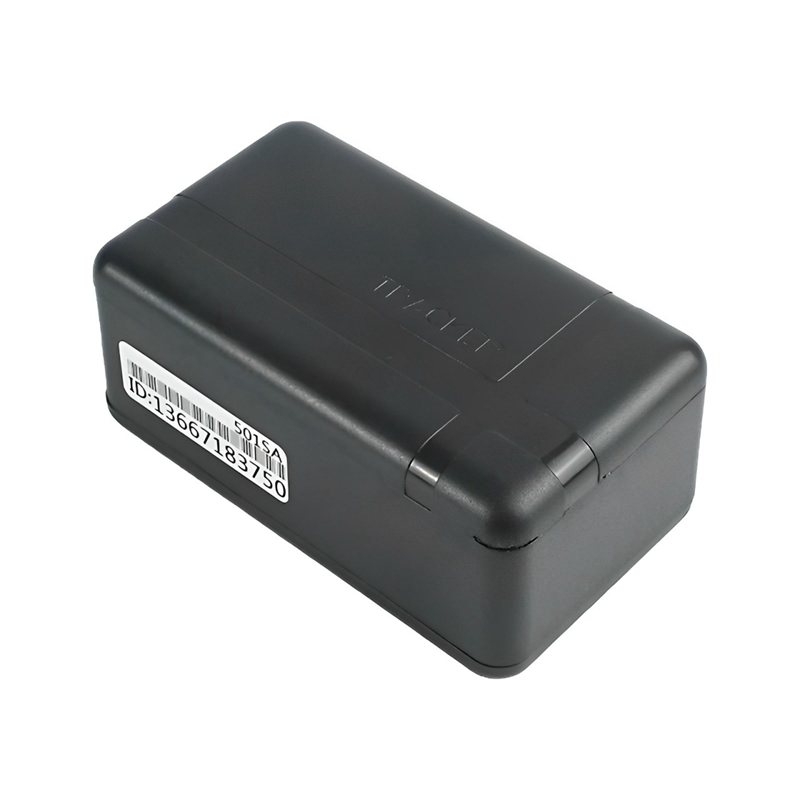

JS-A19 is an ultra-long-standby vehicle tracker combining GPS, BDS, and base-station positioning with 4G all-network + 2G communication. Powered by a Cylindrical Lithium Manganese Dry Cell, it delivers up to three years of operation with once-daily reporting. Featuring ultra-low 2 µA standby current, light-sensing tamper alerts, and remote mode switching (Alarm Clock, Timing, and Car Chase), it’s ideal for vehicle leasing, fleet, and asset management.
Performance
| Items | Specification |
| Hardware Platform | 4G Cat 1/1603 simcom A7670SA-LASL |
| Frequency band | SIMCOM A7670SA-LASE |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66G SM/2G:850/900/1800/1900MHz | |
| Operating voltage | DC 3V |
| Working current | 75-100mA@3V |
| Standby current | 2uA |
| Positioning method | GPS positioning + BDS + base station positioning |
| Positioning error | base station<100m, GPS<10m(The positioning error is related to the terrain and time of the vehicle area.) |
| Capture sensitivity | -143dB |
| Tracking sensitivity | -159dB |
| GPS Antenna | Built-in GPS/BD dual-mode FPC antenna 25X25 |
| Positioning method | GPS positioning + BDS + base station positioning |
| Positioning error | base station<100m, GPS<10m(The positioning error is related to the terrain and time of the vehicle area.) |
| Capture sensitivity | -143dB |
| Communication Network | 4G All network +2G |
| Communication method | UDP/TCP Depends on the communication protocol |
| GPRS | Class12 TCP/IP build |
| Cold start | -38s |
| Hot start | -2s |
| Operating temperature range | -25°C ~ +80°C |
| Storage temperature range | -25°C ~ +85°C |
| Communication Network | 4G All network +2G |
| Communication method | UDP/TCP Depends on the communication protocol |
| GPRS | Class12 TCP/IP build |
| Cold start | -38s |
| Battery | Cylindrical Lithium Manganese Dry Cell |
| Battery operating time | 3 years of continuous operation with new batteries |
| Anti-disassembly method | Light-sensing anti-disassembly model |
| Size | 87.5*X57.2*X47*mm |
| Weight | About 80g |
| Battery | 4500 mAh/5000 mAh optional |
