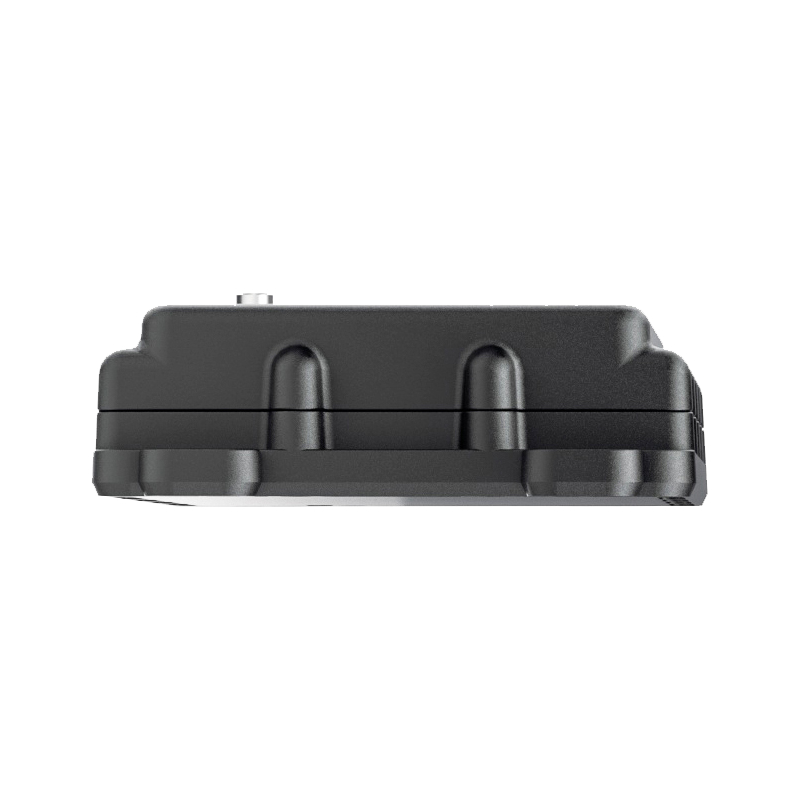

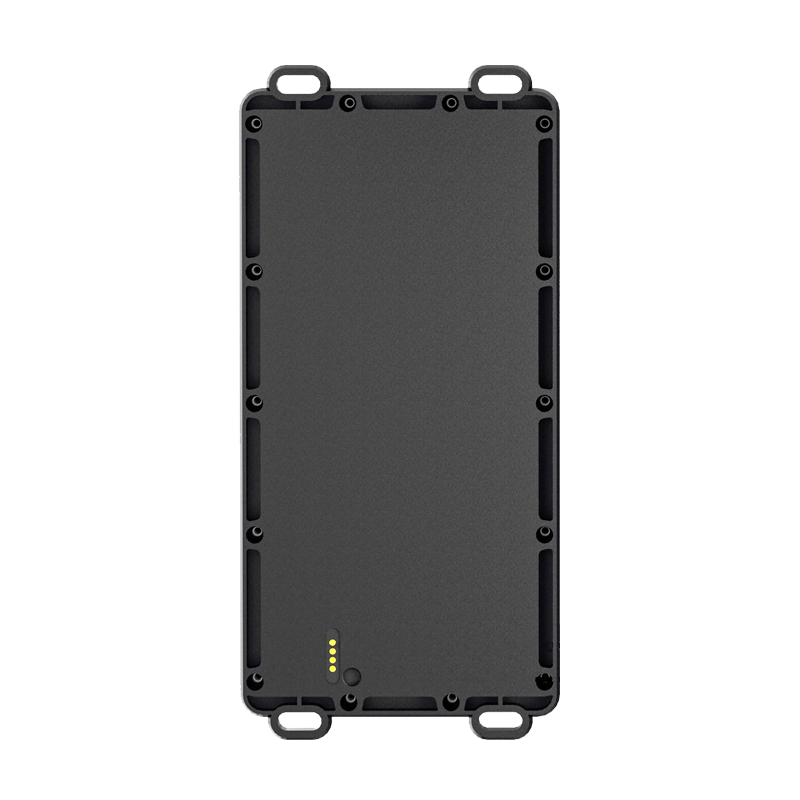

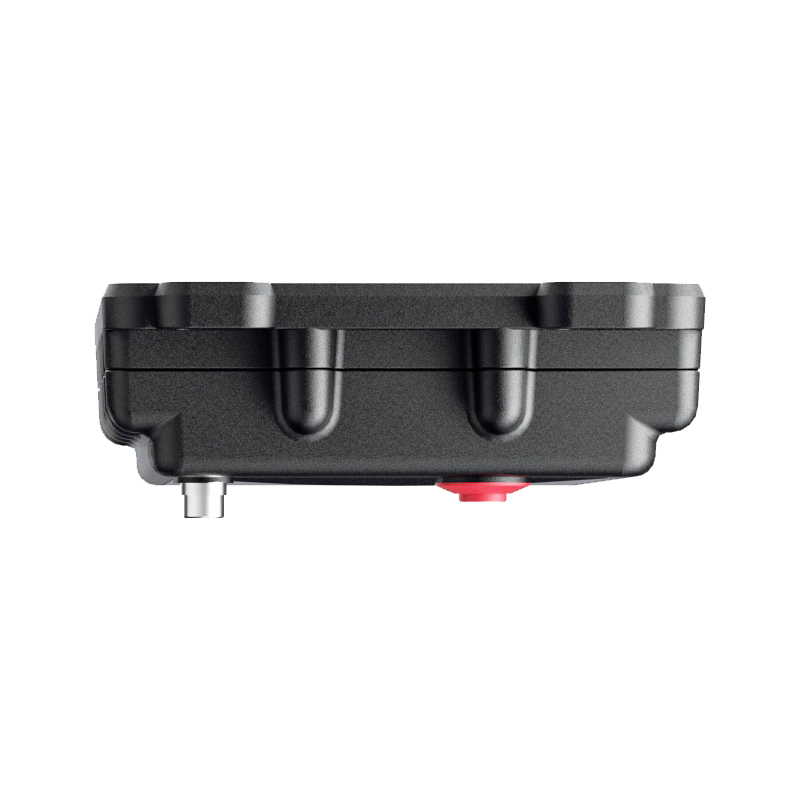

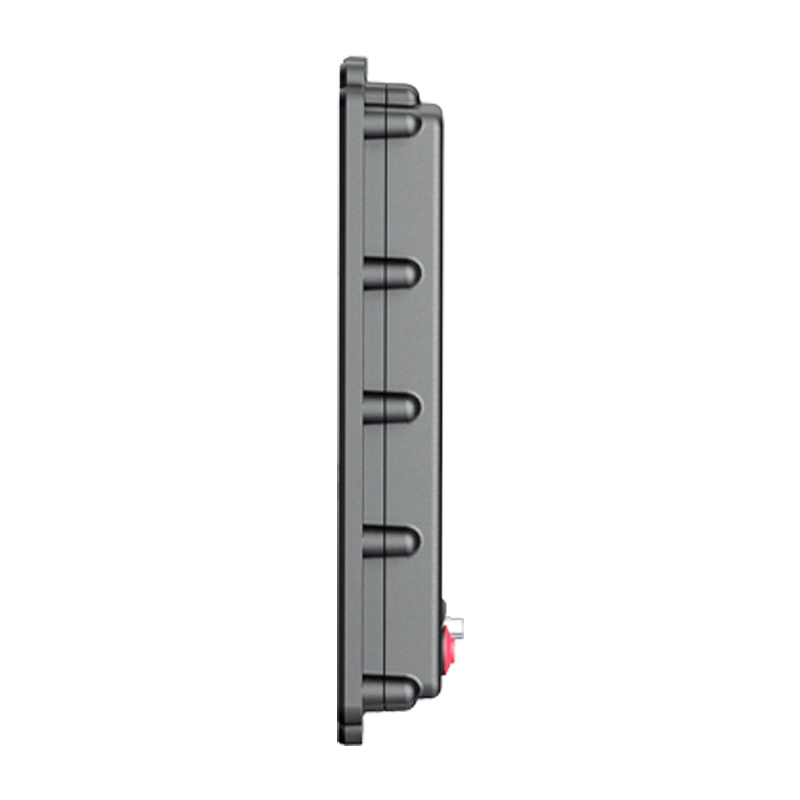

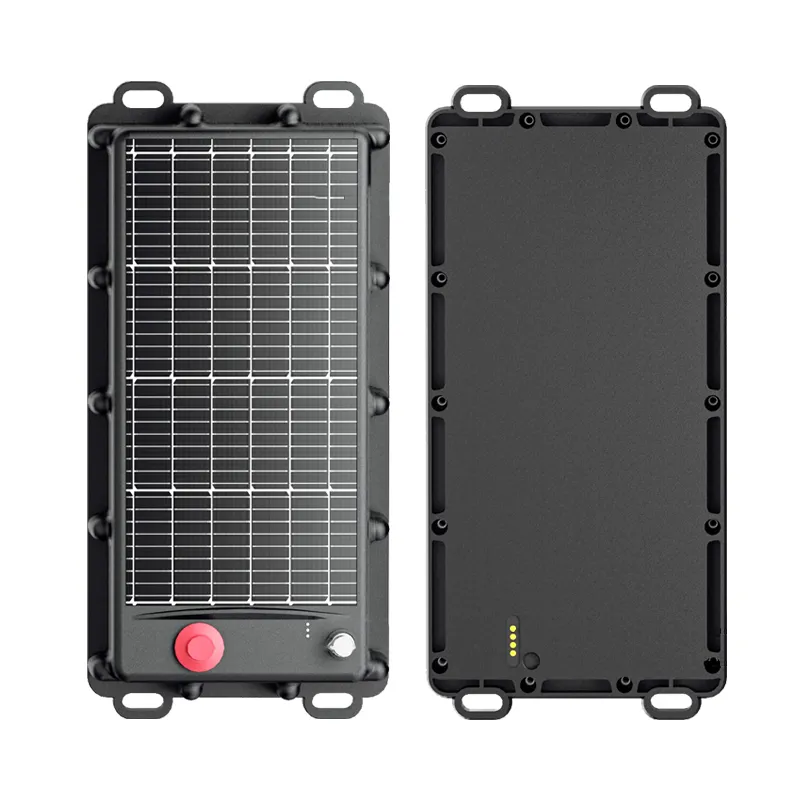

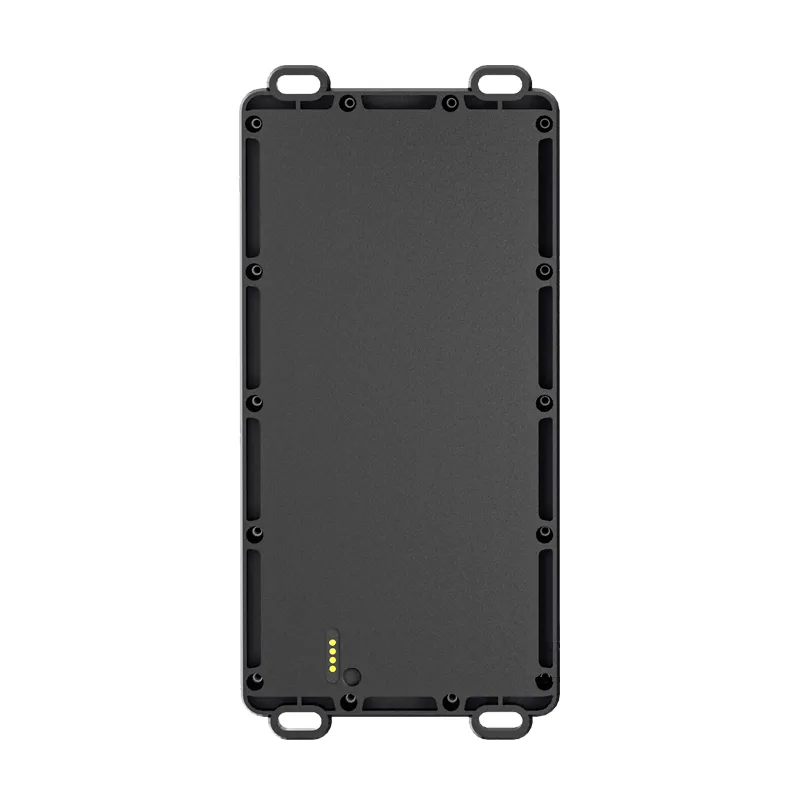

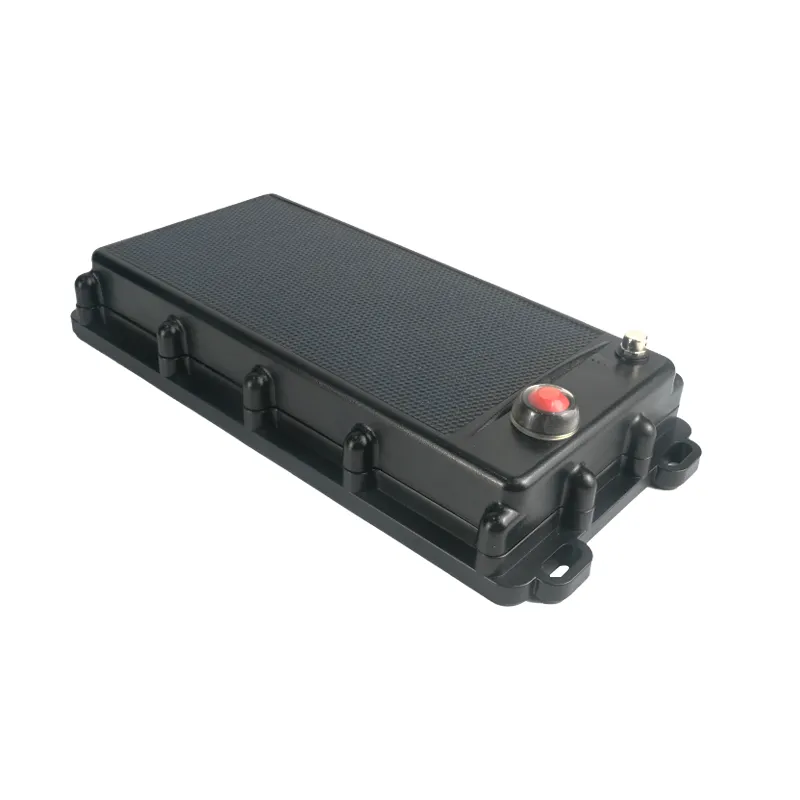

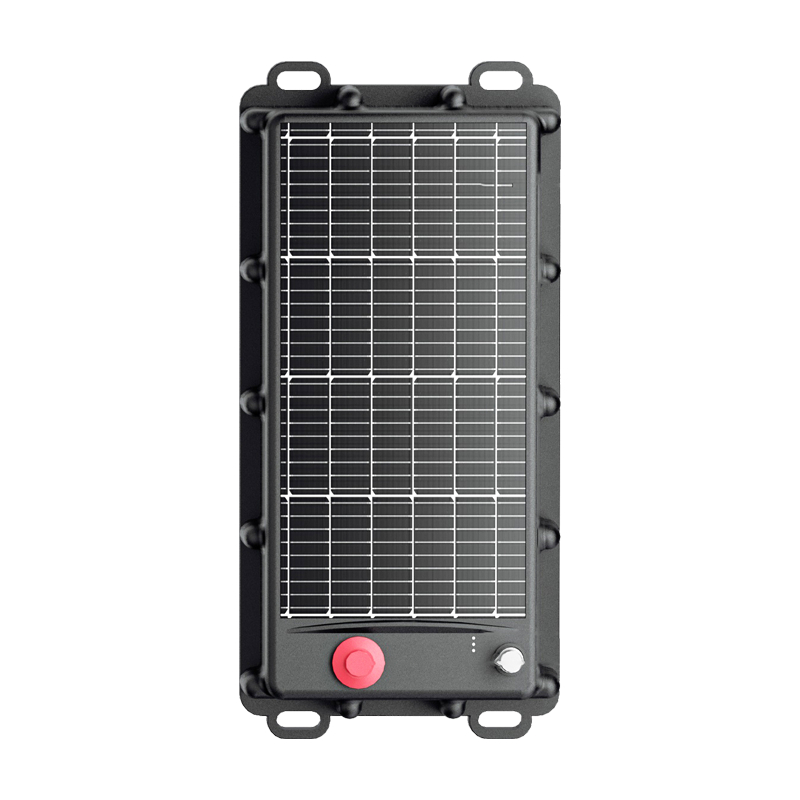

The A18 Beidou Asset Tracking Terminal is a solar-powered outdoor solution with a 20000mAh industrial battery and IP68 rating. Integrating 4G and satellite positioning, it features strong magnets, an anti-tamper switch, SOS alert, and multiple alarms (geo-fence, vibration, tilt). Through its global platform, it enables tracking, dispatch, and management for trailers, containers, and vessels in power-scarce or remote scenarios.
Performance
| Item | Specification / Parameters |
| Dimensions | 225×110×40 mm (Host Size) |
| Weight | 700 g (including battery) |
| Network Standard | 4G-Cat.1 |
| Frequency Band (LTE FDD) | B1/B3/B5/B8 |
| Frequency Band (LTE TDD) | B34/B38/B39/B40/B41 |
| Built-in Battery | ≥20000 mAh capacity |
| Charging Voltage | DC 4V∼6V |
| Charging Interface | Magnetic Charging |
| Charging Mode | Solar Charging (and Magnetic Charging) |
| Power Supply Voltage (Solar) | 5.5V |
| Power Supply Current (Solar) | 450 mA |

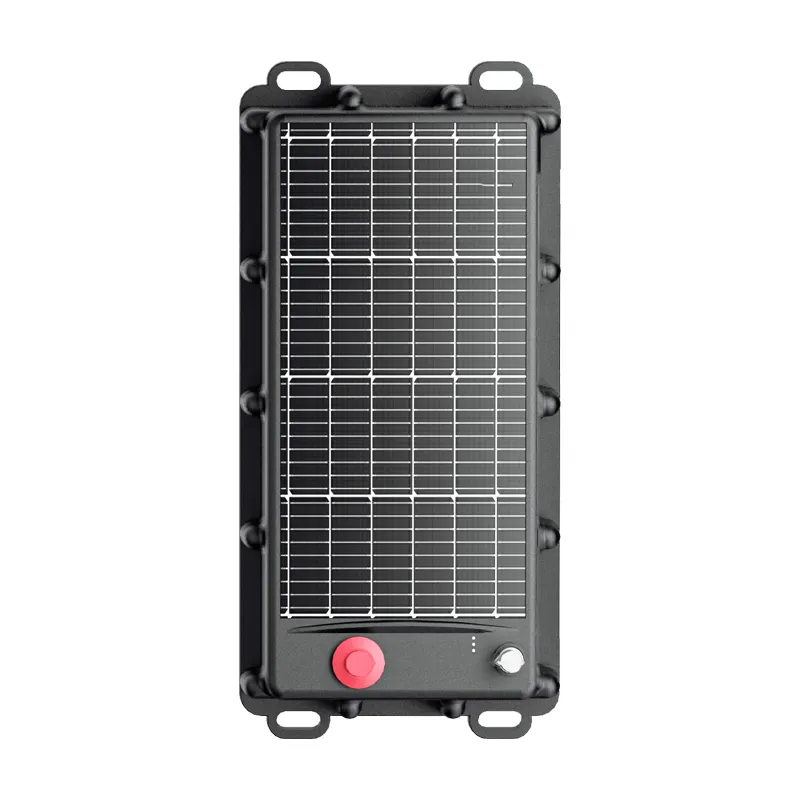

| Solar Panel Specifications | 166×82×2 mm, Monocrystalline Silicon |
| Average Operatin Current | ≤70 mA |
| Standby Current | 5 mA |
| Sleep Current | <0.05 mA (Can be awakened by vibration) |
| Battery Operating Time | 45 Days |
| Standby Time | ≥30 days (Under conditions of no solar power, normal network, and fully charged battery, with a 10-minute interval, 10 minutes/upload interval) |
| Operating Temperature | −20∘C to +75∘C |
| Storage Temperature | −40∘C to +85∘C |
| Waterproof Rating / Protection Level | IP68 Deep Waterproof, Smoke-proof |
| Positioning Error | GPS Positioning Error <10 m |
| Upload Interval | 5 minutes/instance (factory default) |
| Working Mode | Timed positioning tracking, returns longitude and latitude and other positioning information at set time intervals, and enters sleep mode during the remaining time |
| Buttons | Supports 2 buttons |
| Communication Protocol | Supports JT808 Protocol |
| Remote Parameter Configuration | Supported |
| Battery Level Detection | Supported |
