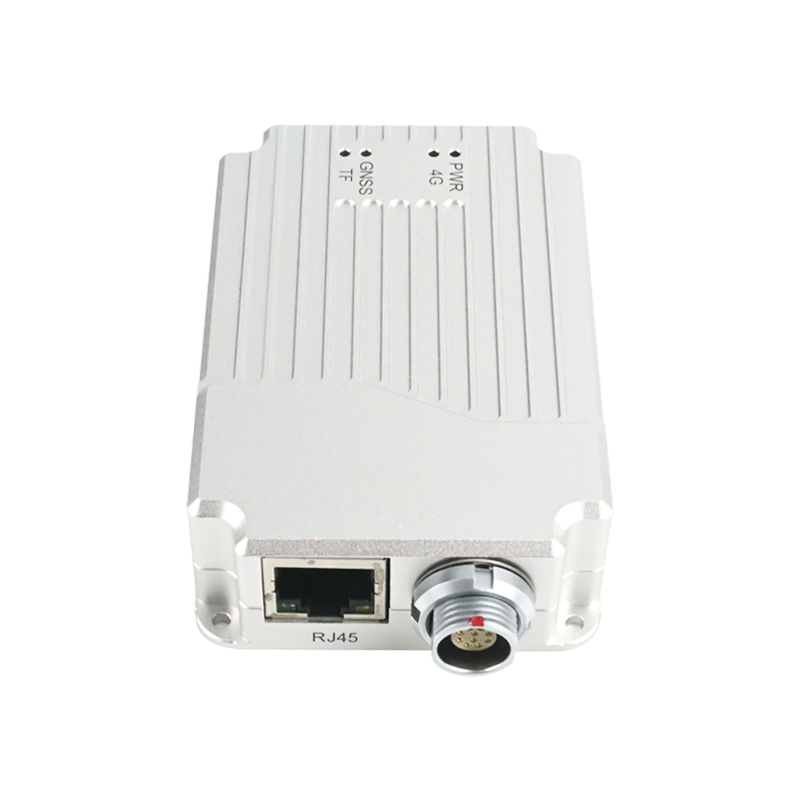

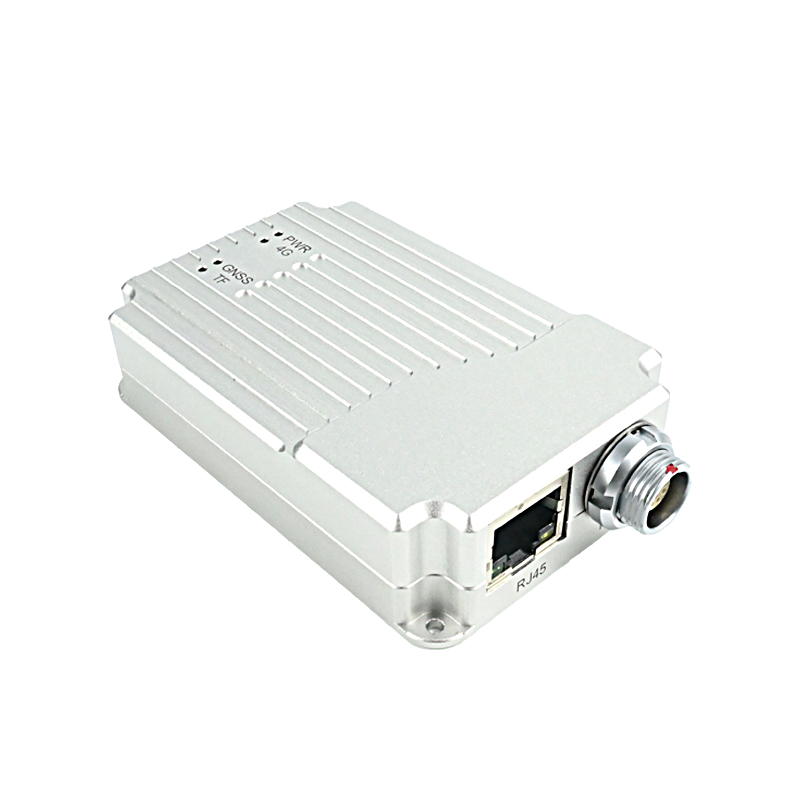

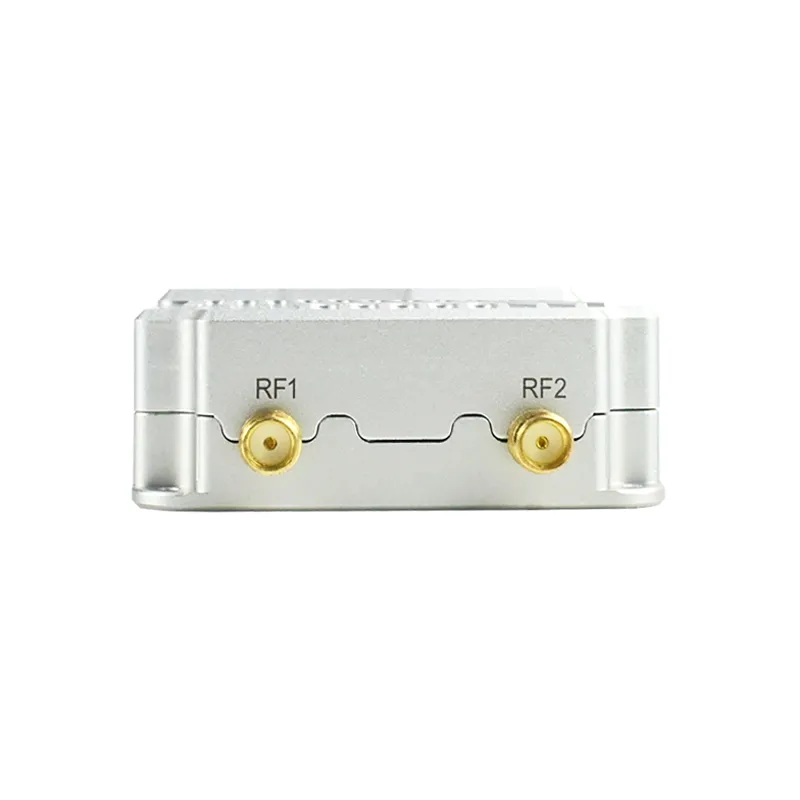

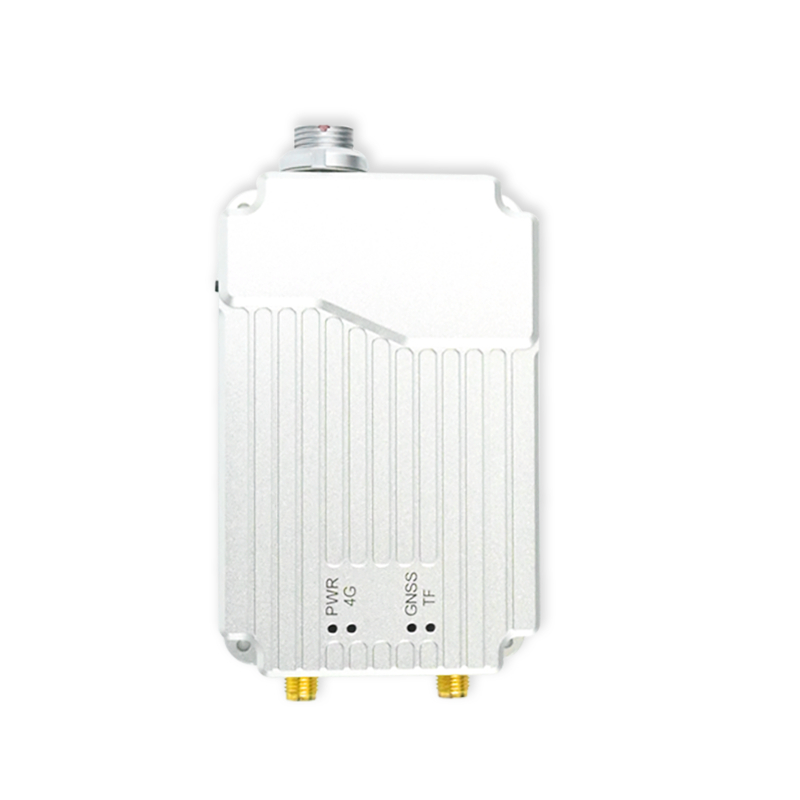

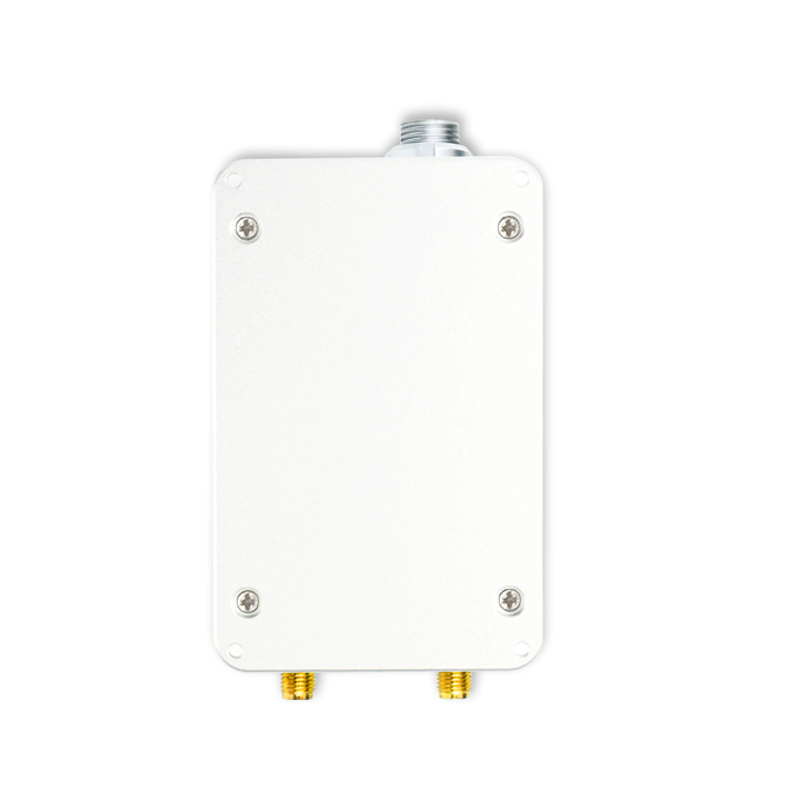

The A12mini is a compact high-precision vehicle terminal supporting multi-system satellite positioning and RTK centimeter-level accuracy. It delivers integrated tracking, dispatch, and fleet management for vehicles, drones, and vessels. Compatible with JT808 and custom protocols, it connects to our platform, ChaoYue, and national freight systems. Ideal for autonomous driving, precision agriculture, and surveying, it maintains reliable performance even in dense urban or mountainous environments with severe signal challenges.
Performance
| Category | Project (Parameter Name) | Parameter (Value) |
| GNSS & Reception | Capture Channel | 156 satellite capture channels |
| Receipt Type (Supported Systems) | GPS/QZSS L1 L2, GLONASS G1 G2, BDS B1I B2I | |
| Tracking Sensitivity | −163 dBm | |
| Capture Sensitivity | −147 dBm | |
| First Positioning Time (TTFF) | Cold Start | ≤35s |
| Cold Start (A−GNSS) | ≤3s | |
| Hot Start | ≤1s | |
| Recapture | ≤1s | |
| Positioning Accuracy | Horizontal (Single Point) | 2.0m CEP |
| Horizontal (RTK Fixed Solution) | 2cm+1ppm (horizontal) | |
| Positioning Method | Dual frequency | |
| Velocity Accuracy | 0.05 m/s | |
| Power | Operating Voltage | DC9V∼36V |
| Operating Current (Main) | 150mA | |
| Operating Voltage (Module) | DC3.3V∼3.6V | |
| Operating Current (Module) | <130 mA | |
| Communication & Data | Baud Rate | 9600−230400 bps |
| Refresh Rate | Up to 10 Hz | |
| Data Format | NMEA 0183 | |
| Differential Data | RTCM 3.3/3.2/3.1/3.0 | |
| Communication Method | TCP | |
| Communication Network | 4G | |
| Environmental & Mechanical | Operating Temperature | −35∘C∼+80∘C |
| Operating Humidity | 5%∼80% | |
| ESD Rating | Electrostatic discharge index (can withstand contact 4KV, air 8KV) | |
| Vibration Performance | Comply with the requirements of GB/T28046.3-2011 | |
| Impact Resistance | Gravitational acceleration ≤3g | |
| Specifications and Dimensions | 86×55×22mm | |
| Terminal Weight | 40g |
