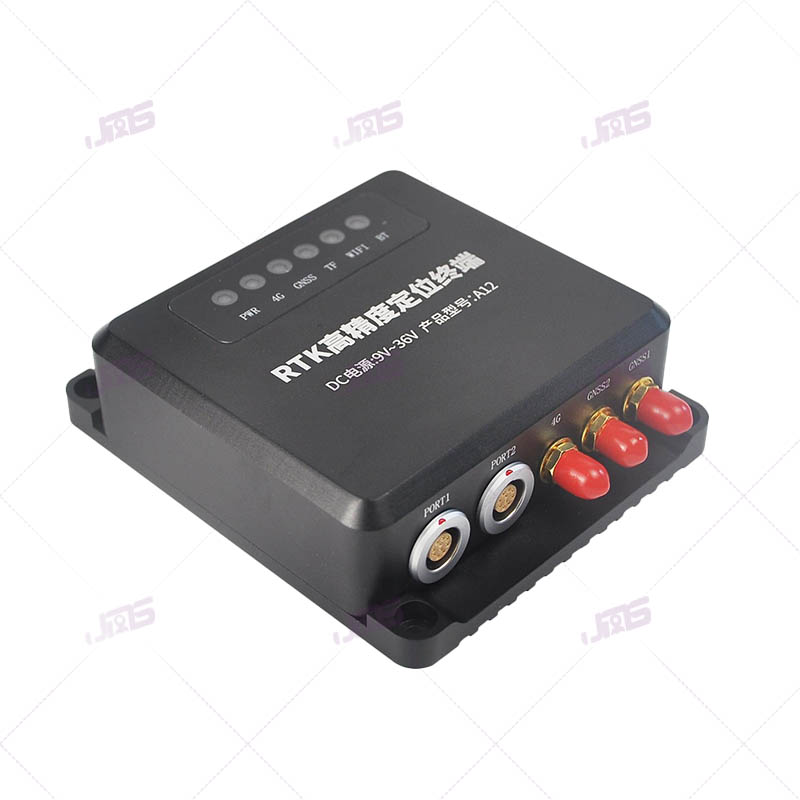

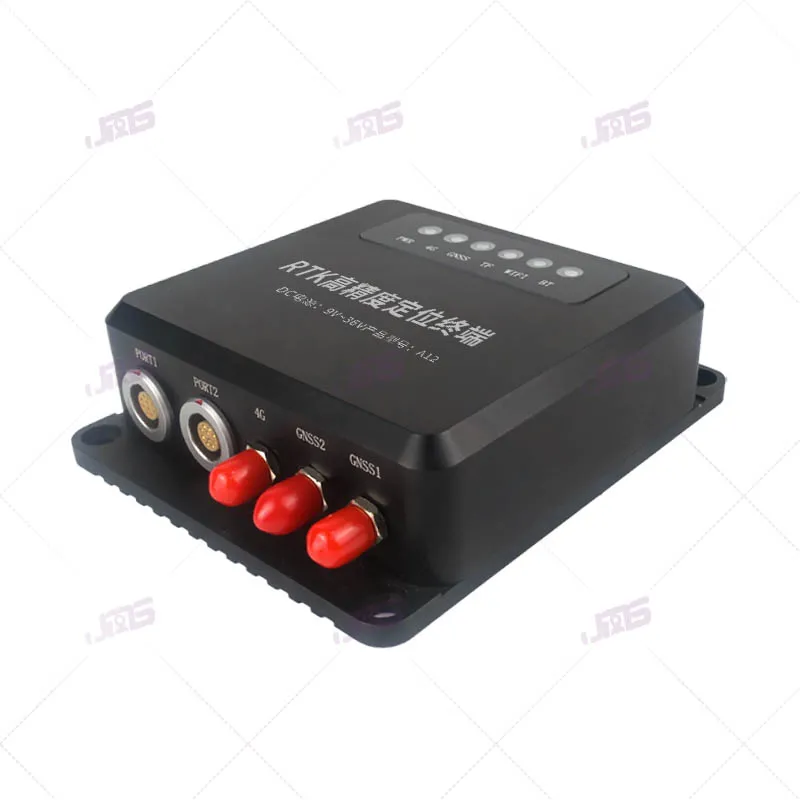

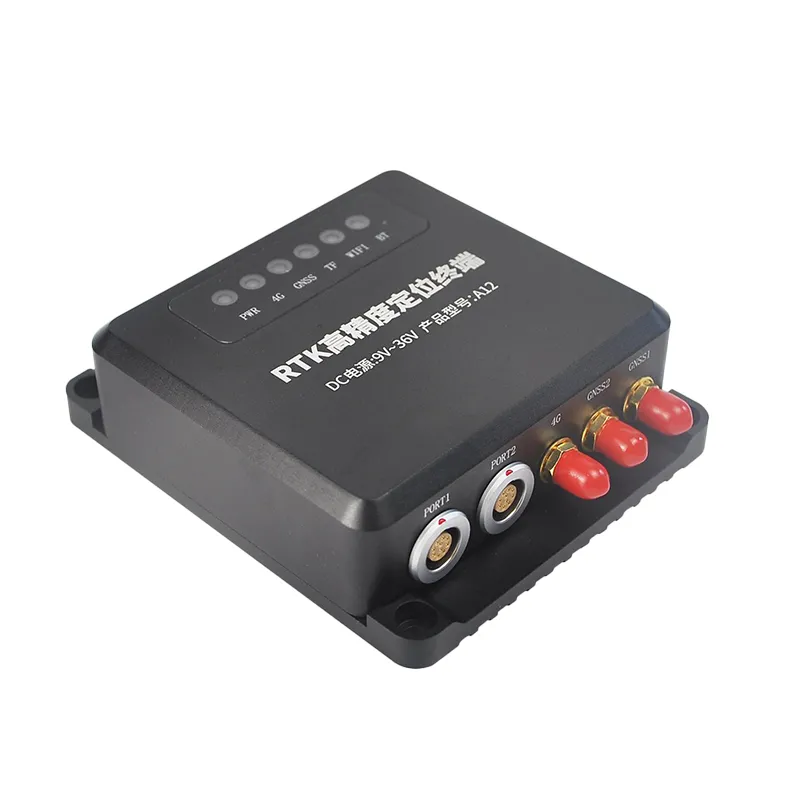

The A12 RTK is a high-precision vehicle terminal supporting multi-system satellite positioning and RTK centimeter-level accuracy. It enables integrated tracking, dispatch, trajectory analysis, and fleet management for vehicles, drones, and vessels. Compatible with JT808 and custom protocols, it connects to our platform, ChaoYue, and national transport systems. Ideal for autonomous driving, precision agriculture, and surveying, it maintains reliable performance in urban, mountainous, and challenging signal environments.
Performance
| Project | Parameter |
| working voltage | DC 9V ~ 36V |
| working current | <160mA (DC 12V ) |
| working temperature | –35 ℃ ~ +80 ℃ |
| Working humidity | 5% ~ 80% |
| standby battery | 350mA /3.7V |
| Battery working time | 2h |
| communication mode | TCP |
| communication network | 4G |
| location mode | Multi-constellation positioning |
| Wi F i | Support 2.4G (optional) |
| PDA | Support for BLE 4.2 (optional) |
| classification of waterproof | IP67 |
| ESD grade | Electrostatic discharge index (can withstand contact 4KV, air 8KV) |
| vibration performance | Meet the GB / T 28046.3-2011 requirements |
| Impact prevention | Gravity acceleration < = 3g |
| specification and dimension | 108*92*30.5mm |
| Terminal weight | 270g |
| working voltage | DC 3.3V ~ 5.5V |
| working current | <240mA |
| orientation accuracy | 0.2 ° / 1m baseline |
| Time accuracy (RMS) | 20ns |
| rate accuracy | 0m /s.2 |
| Capture the tracking channel | 1408 |
| Cold start time | ≤30s |
| The RTK initialization time | <5s (typical value) |
| refresh rate | Max to 20 Hz (default 1Hz) |
| Baud rate | 115200230400bps (default 115200bps) |
| Support constellation | BDS /GPS /GLONASS /Galileo /QZSS |
| The main antenna supports the frequency points | BDS: B1I、B2I、B3I GPS: L1C/A、L2P (Y)/L2C、L5 GLONASS: L1、L2 Galileo: E1、E5a、E5b QZSS: L1、L2、L5 |
| Support the frequency points from the antenna | BDS: B1I、B2I、B3I GPS: L1C/A、L2C GLONASS: L1、L2 Galileo: E1 QZSS: L1、E5b L2 |
