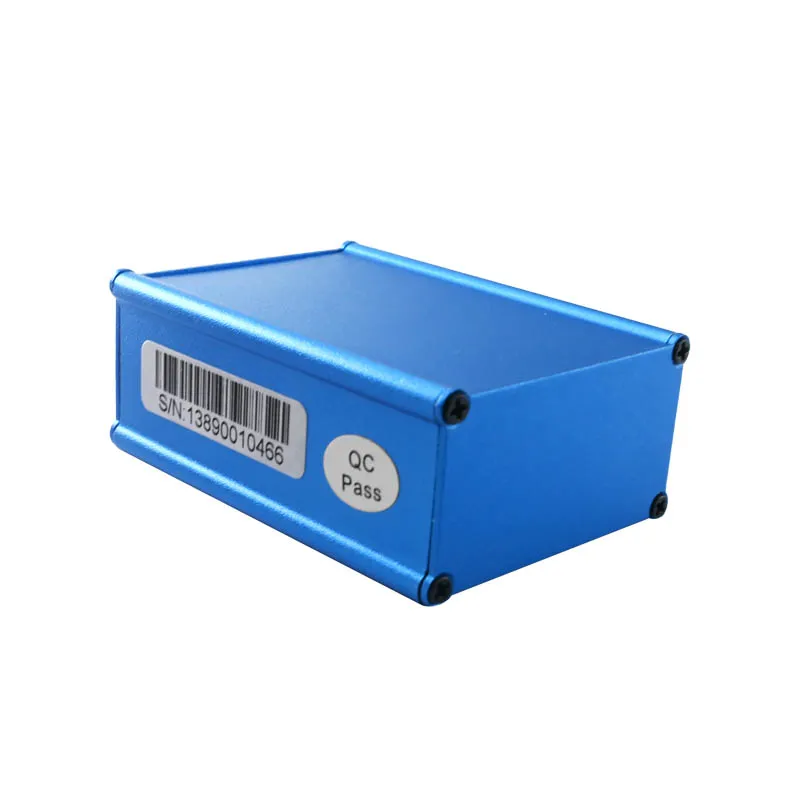

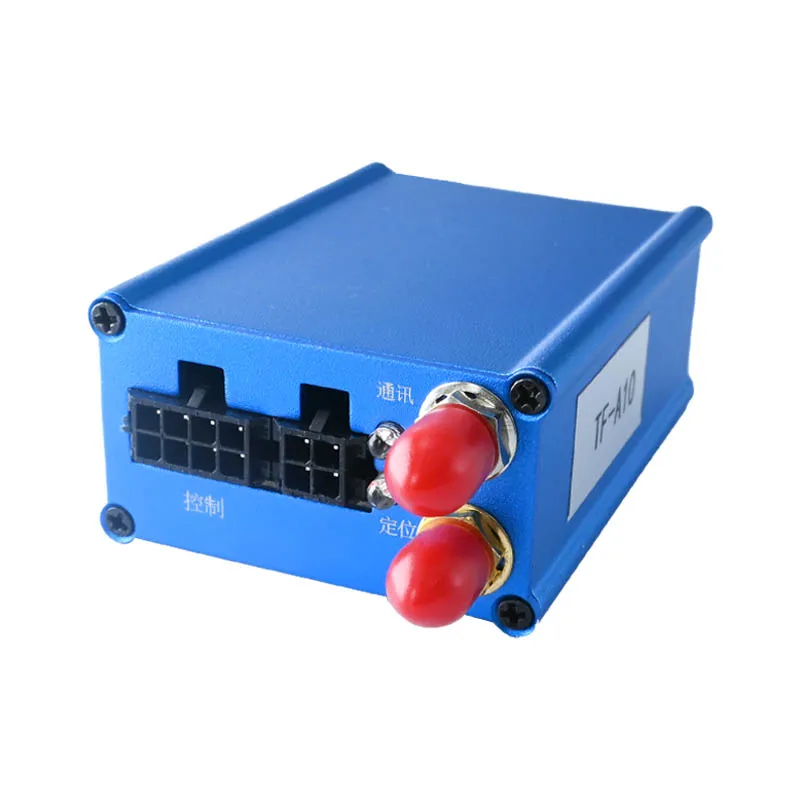

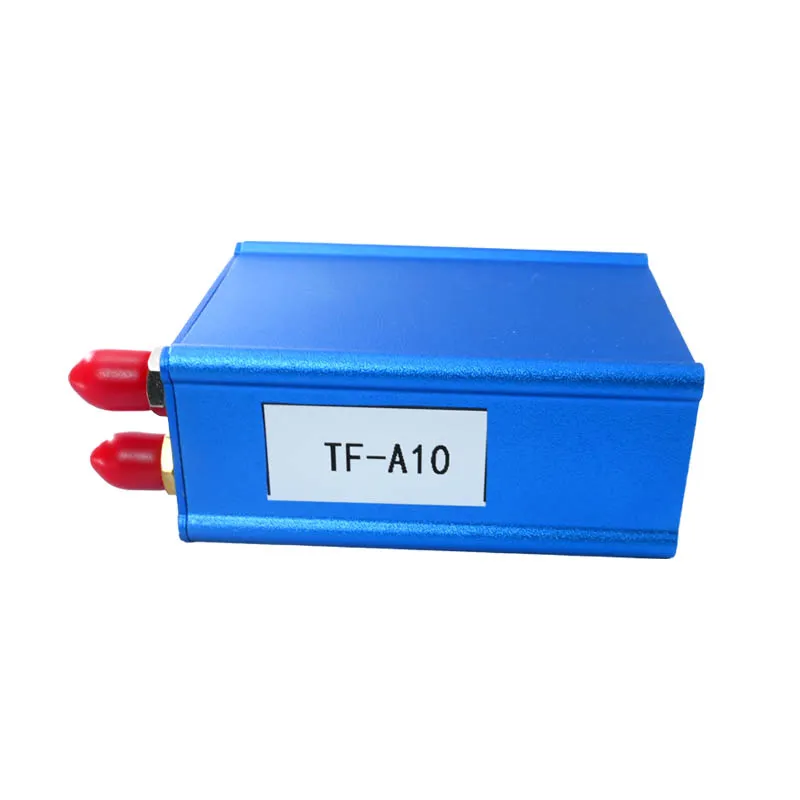

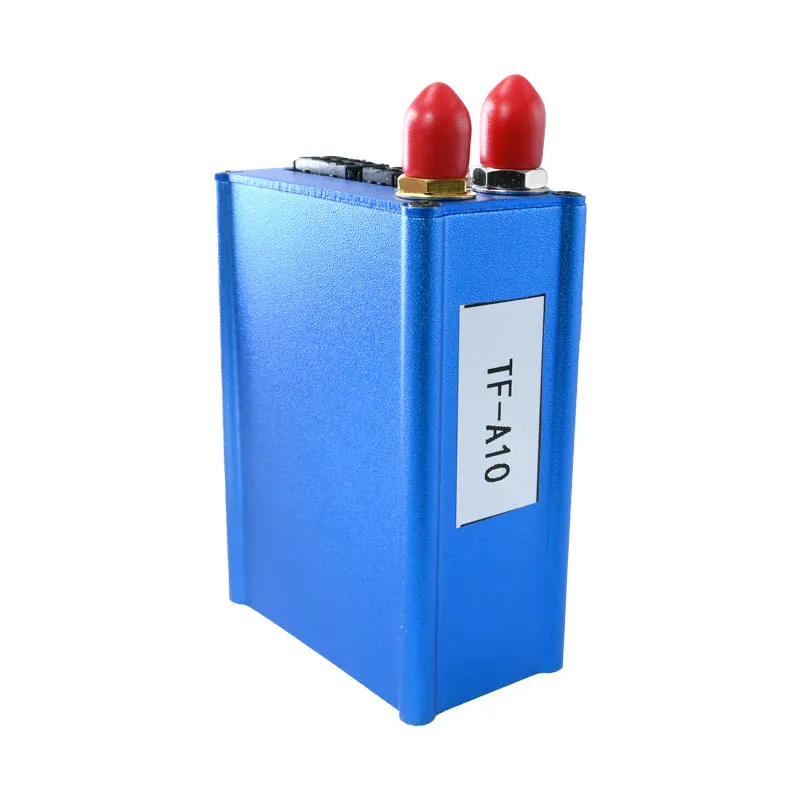

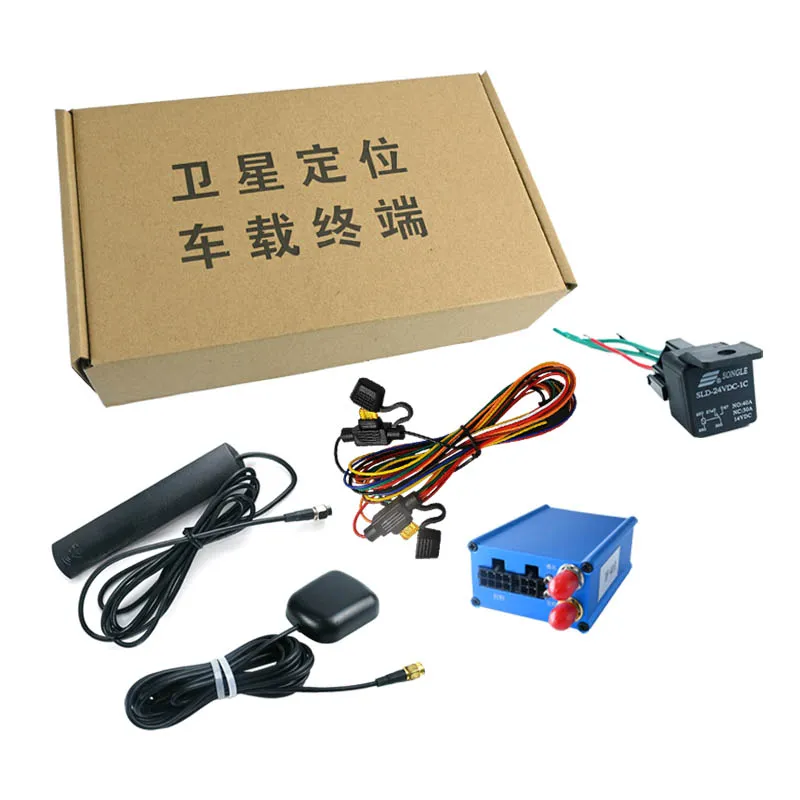

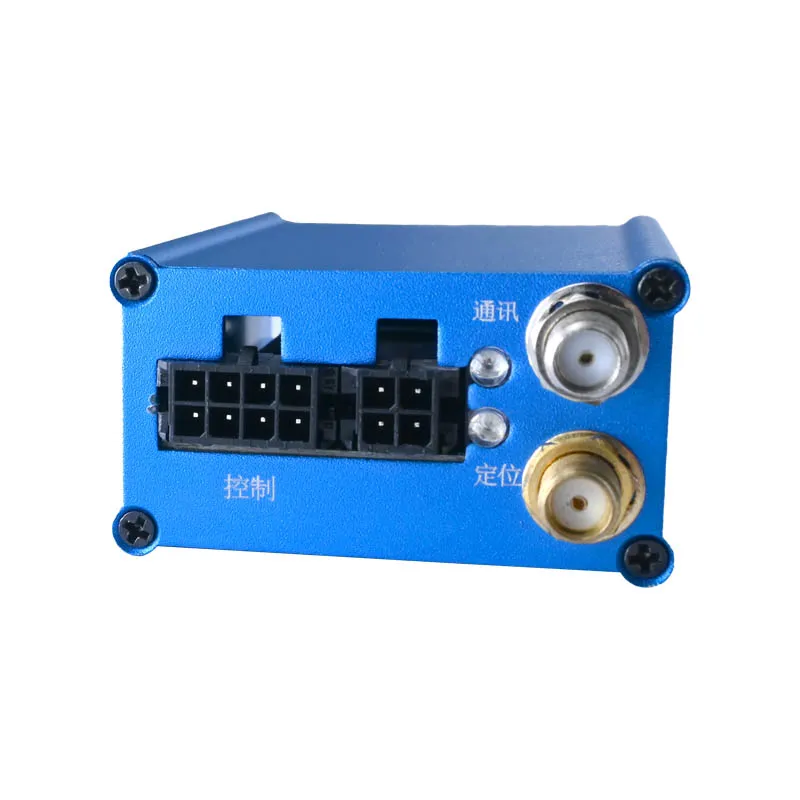

The A10 is a new-generation vehicle positioning terminal with integrated 4G communication and satellite positioning capabilities. It enables comprehensive tracking, monitoring, dispatch, trajectory analysis, alarm handling, and operational management for mobile assets. Suitable for cold chain logistics, airport vehicles, rental cars, buses, hazardous goods transport, and shipping, it delivers an all-in-one solution for fleet management across industries.
Performance
| Parameter | Value |
| working voltage | DC9V~36V |
| working current | <60mA(DC12V) |
| Applicable altitude | Below 5,000 m |
| standby battery | 3.6V/350mA |
| outline dimension | 64mmX48mmX24mm |
| working temperature | -40℃~+85℃ |
| Communication frequency band | LTE-FDD: B1/B3/B5/B8 |
| LT E -TDD: B34/B38/B39/B40/B41 | |
| GSM: 900/1800MHz | |
| Constellation frequency band | GPS、BDS、 QZSS 、SBAS L1 |
| positioning accuracy | 2.5m |
| rate accuracy | 0.1m/s |
| tracking sensitivity | -162dBm |
| acquisition sensitivity | -147dBm |
| cold boot | ≤30s |
| warm boot | ≤ls |
