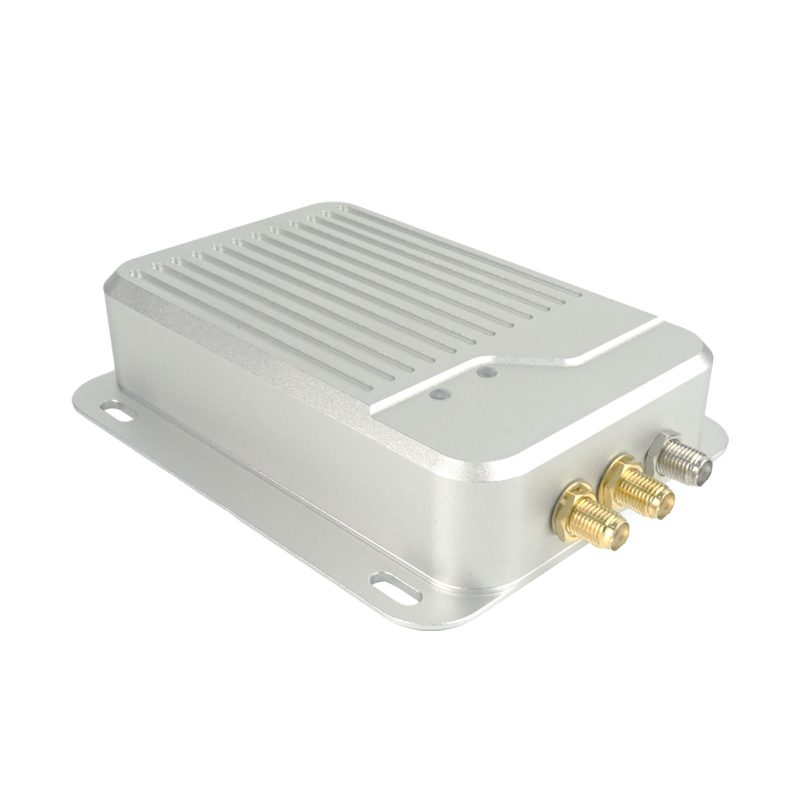

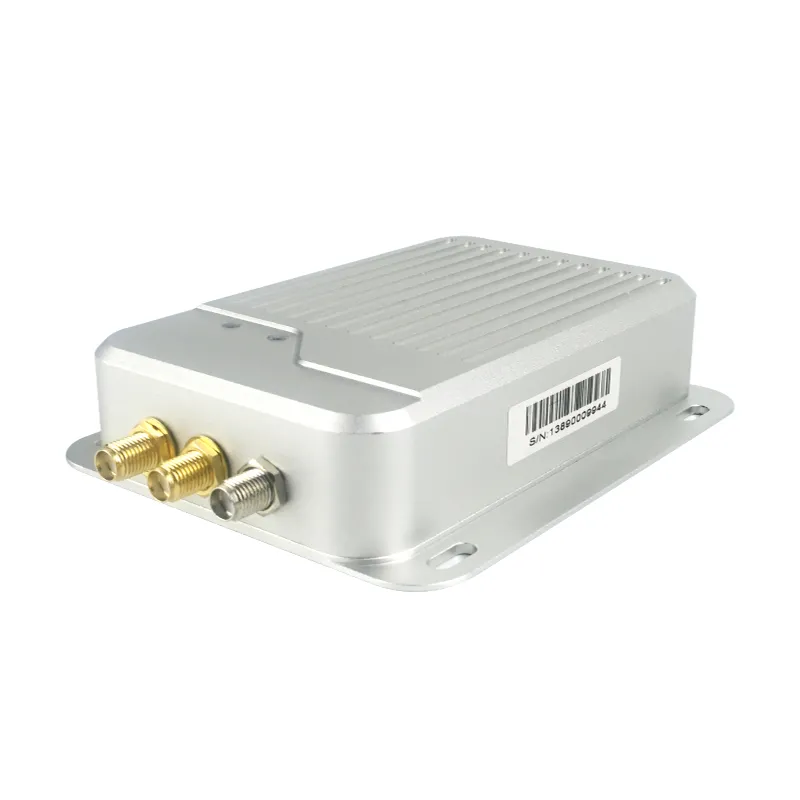

The A05 Vehicle Positioning Terminal delivers centimeter-level accuracy with dual-band multi-system GNSS and IMU integration. Supporting 2G-5G networks and JT808 protocol, it enables reliable positioning, attitude detection, and data logging via TF card and external interfaces. Compatible with fuel sensors and relays, it allows remote control and fuel monitoring. With dual-antenna directional capability and seamless IMU-based dead reckoning when signals are lost, it ensures continuous tracking for advanced fleet and vehicle management.
Product Features
5G/4G Multi-network Support
Full-band RTK Positioning (5G Optional)
All-satellite all-frequency
Track playback
Fuel Rod/Relay
Temperature Sensor
Built-in TF Card
IMU (Inertial Measurement Unit) Navigation
Performance
| Nature | Describe | ||
| Positioning module characteristics | satellite base and frequency | L1+L2:GPS、BDS、GLONASS、Galileo、QZSS、SBAS | |
| RTK Positional accuracy | 2cm+1ppm | ||
| Velocity measurement accuracy | 0.05m/s | ||
| Capture time | Cold Start | <20s | |
| Hot start | <10s | ||
| Channel | Acquisition channel | 96 | |
| Tracking channel | 60 | ||
| Sensitivity | Tracking sensitivity | -163dBm | |
| Acquisition sensitivity | -147dBm | ||
| UpdateRate | 1-10HZ(Default 1HZ) | ||
| Baud rate | 115200- 230400bps ( Default 115200bps) | ||
| Internal interface | SIM Card | Nano SIM | |

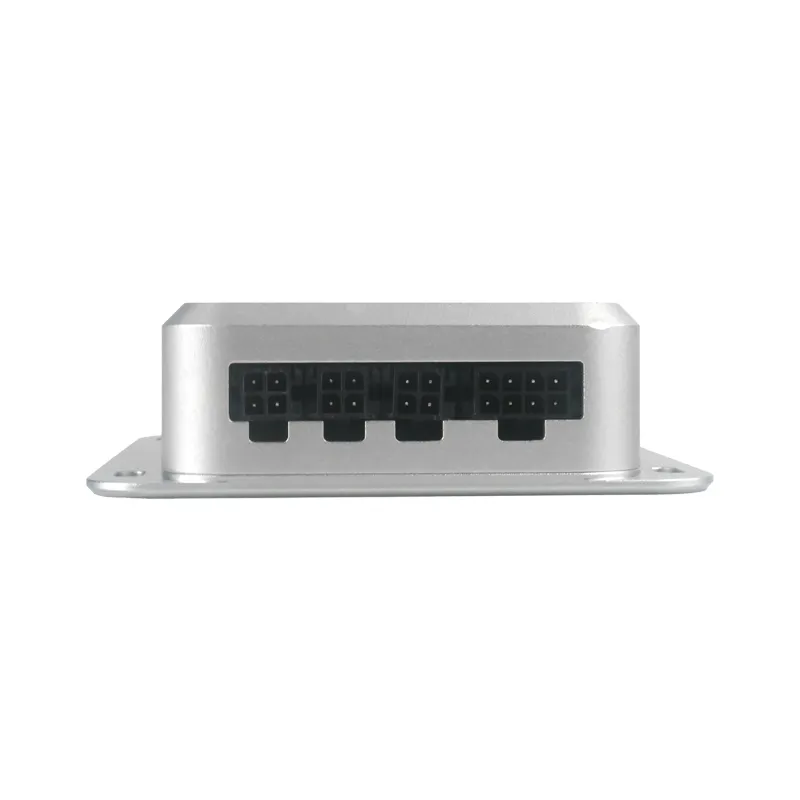

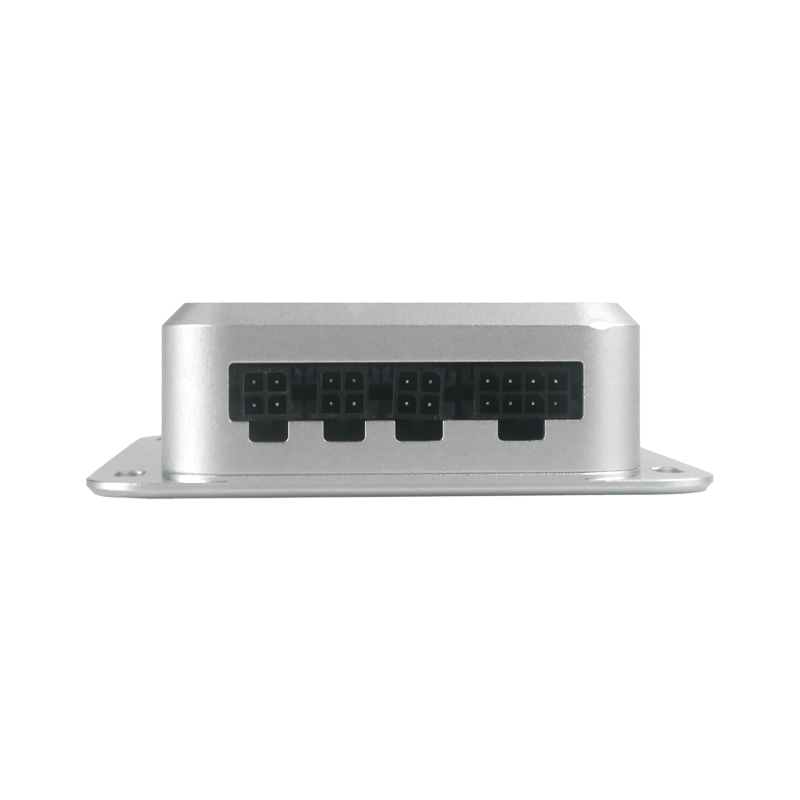

| External interface | POWER | Power /High&Low Trigger/Analog Signal Input /ACC /Fuel Loss /Hijack Alarm | |
| RS232/485 | 5Voutput TX RX | ||
| CAN | CAN | ||
| I/O | I/O | ||
| Appliance property | Built-in battery | 150mA | |
| Power interface | DC 9-36V | ||
| Voltage detection | Support | ||
| Working current | ≤300mA DC12V | ||
| Environmental | Working temperature | -20℃~65℃ | |
| Storage temperature | -30℃-80℃ | ||
| Operating humidity | 10%~85%RH, non-condensing | ||
| IP Rate | Support custom | ||
| Outsize | Size | 122*122*43.09mm | |
| Weight | 375g | ||
| Material | Aluminium alloy | ||
| Others | IECEx | Customers for explosion-proof certification | |
Key Functions
| Operating mode | Vehicle ignition reporting frequency | The device ACC (white wire) and positive connection (red wire) are connected to the car battery, when the car starts, the device detects high voltage and starts to push data to the platform at a high frequency. |
| Vehicle Stalling Reporting Frequency | The device ACC (white wire) and positive connection (red wire) is connected to the car battery, when the car is turned off, the device detects low voltage and low frequency to push data to the platform. Until the device is turned off. | |
| IMU(Optional) | The equipment automatically calculates latitude and longitude in poor satellite quality environments. | |
| Heading angle (optional) | The device can recognize the vehicle heading status and send it back to the server. | |
| External interface function | Fuel level sensors | The device can be externally connected to 232/485, single and double fuel level sensor.Real-time monitoring of the total amount of gasoline in the car's fuel tank. |
| Relay (electronics) | The device can be externally connected to a relay when the vehicle is traveling to a threat area or when the vehicle is traveling too fast.The platform pushes control commands. Alert the driver. |
